Electronic Component Transistor Photovoltaic Output Photocoupler

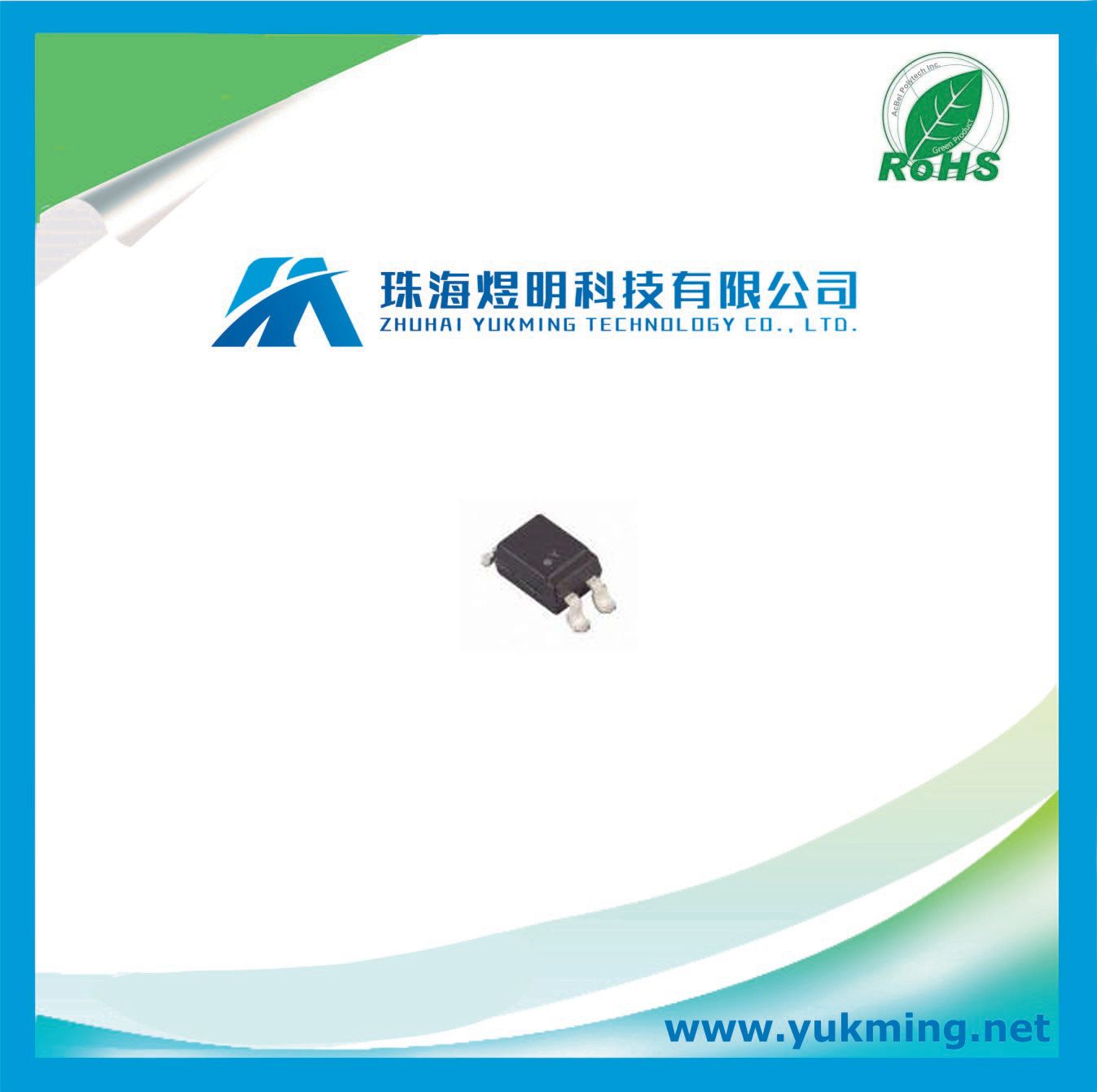

Name: Electronic Component Transistor Photovoltaic Output Photocoupler
Brand: all-electronics-online.com
SKU: 806383075
Availability: InStock
Rating: 5 (128 reviews)

Price:	US $ 0.081/Piece
Min Order:	1500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LTV-357T-C
Output Type:	DC
Input Type:	DC
Output Device:	Transistor
Number Of Channels Per Chip:	1
Minimum Isolation Voltage (Vrms):	3750
Operation Temperature Range:	-55~110 Degree C

Product Description

MANUFACTURER
Lite-On Technology

PRODUCT CATEGORY
Transistor and Photovoltaic Output PhotoCouplers

DESCRIPTION
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat

Specifications
EU RoHS Compliant
Output Type DC
Input Type DC
Output Device Transistor
Number of Channels per Chip 1
Minimum Isolation Voltage (Vrms) 3750
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 110
Maximum Forward Voltage (V) 1.4
Maximum Collector Emitter Voltage (V) 35
Maximum Current Transfer Ratio (%) 600
Standard CSA|cUL|DEMKO|FIMKO|NEMKO|SEMKO|UL|VDE
Maximum Collector Current (mA) 50
Maximum Collector Emitter Saturation Voltage (mV) 200
Maximum Power Dissipation (mW) 170
Typical Forward Voltage (V) 1.2
Maximum Reverse Voltage (V) 6
Maximum Rise Time (us) 18
Maximum Fall Time (us) 18
Maximum Forward Current (mA) 50
Minimum Current Transfer Ratio (%) 50
Current Transfer Ratio Test Current (mA) 5
Typical Rise Time (us) 4
Typical Fall Time (us) 3
Mounting Surface Mount
Package Height (mm) 2
Package Length (mm) 3.85
Package Width (mm) 4.4
PCB changed 4
Standard Package Name SOIC
Supplier Package Mini-Flat
Pin Count 4
Lead Shape Gull-wing
