Electronic Component Transistors - Fets Mosfets - Single for PCB Assembly

Name: Electronic Component Transistors - Fets Mosfets - Single for PCB Assembly
Brand: all-electronics-online.com
SKU: 807050735
Availability: InStock
Rating: 4.8 (36 reviews)

Price:	US $ 0.2430/Piece
Min Order:	76000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RSD050N10TL
Fet Type:	N-Channel
Technology:	Mosfet (Metal Oxide)
Drain To Source Voltage (Vdss):	100V
Current - Continuous Drain (ID) @ 25 D C:	5A (Ta)
Power Dissipation (Max):	15W (Tc)

Product Description

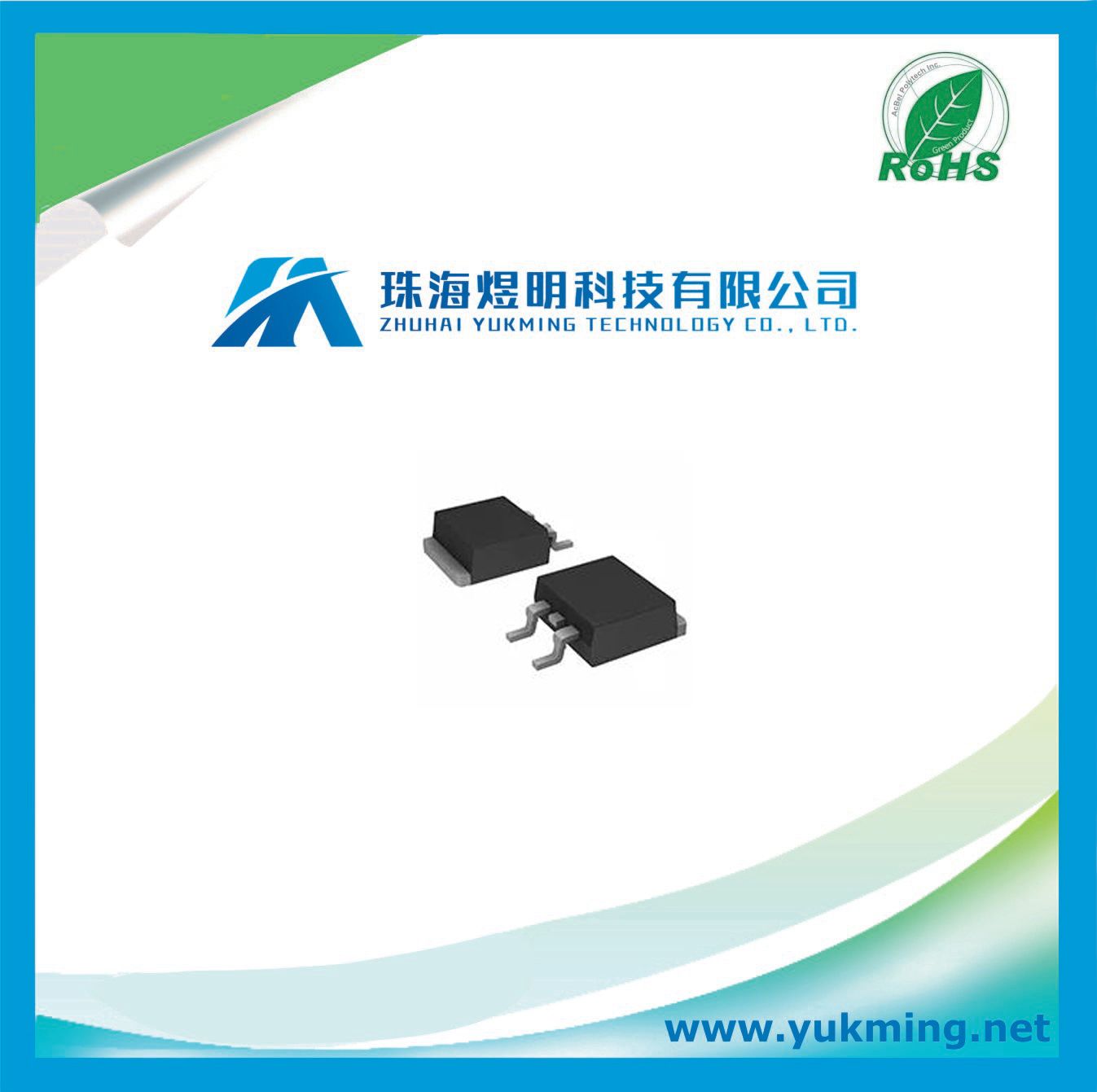

N-Channel 100V 5A (Ta) 15W (Tc) Surface Mount CPT3

Categories	Discrete Semiconductor Products
Categories	Transistors - FETs, MOSFETs - Single
Manufacturer	Rohm Semiconductor
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25 degree C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	14nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	530pF @ 25V
Vgs (Max)	+/-20V
Power Dissipation (Max)	15W (Tc)
Rds On (Max) @ Id, Vgs	190 mOhm @ 5A, 10V
Operating Temperature	150 degree C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	CPT3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63

Structure
Silicon N-channel MOSFET
lFeatures
1) Low on-resistance.
2) Fast switching speed.
3) Drive circuits can be simple.
3) Parallel use is easy.
lApplications
Switching
