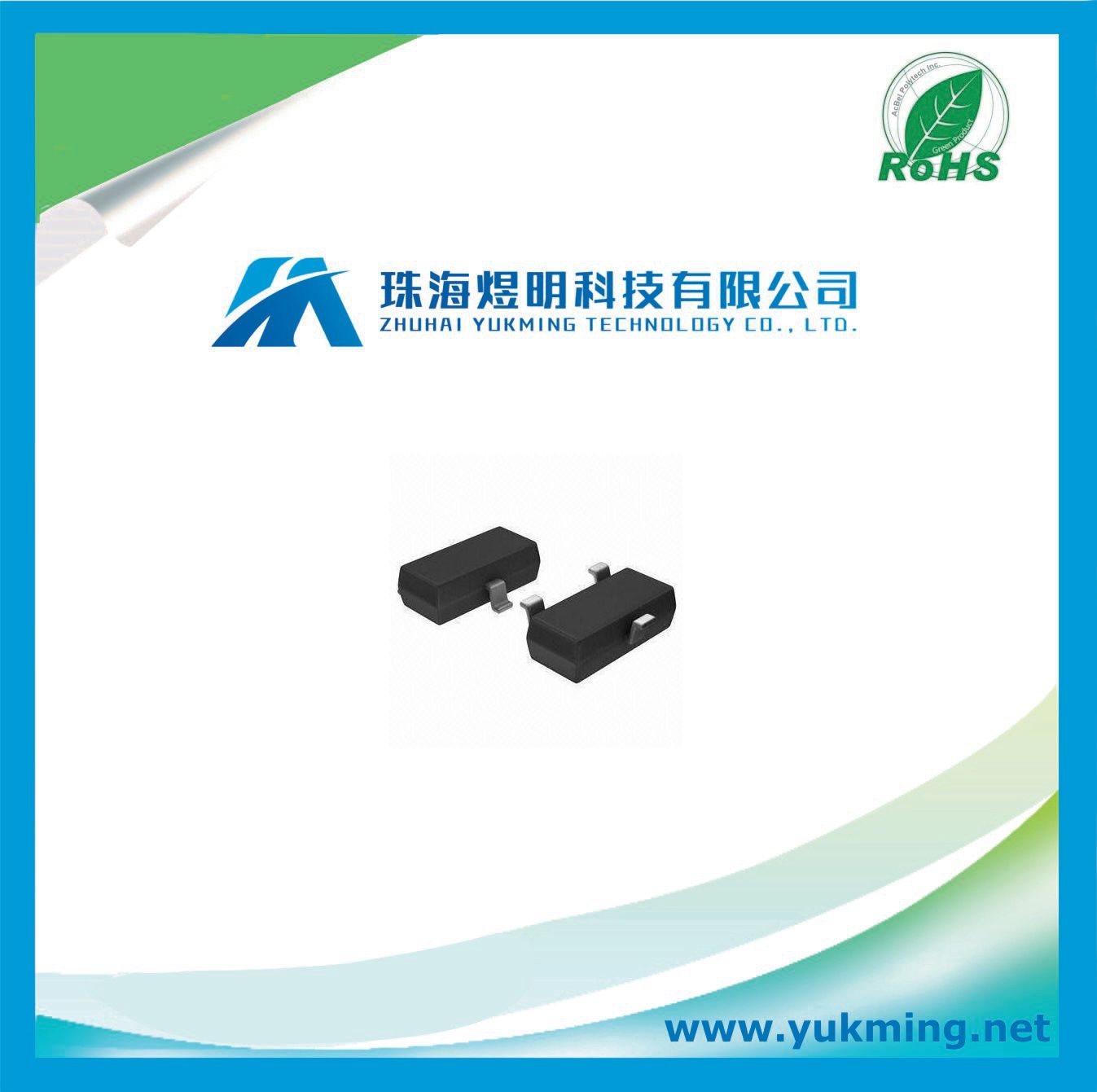

Electronic Component Versatile NPN Transistor for PCB Assembly

Prod Model:	BC847AMTF
Number Of Elements Per Chip:	1
Maximum Collector Base Voltage (V):	50
Maximum Emitter Base Voltage (V):	6
Maximum Collector Emitter Voltage (V) 4:	45
Maximum DC Collector Current (a):	0.1
Maximum Power Dissipation (MW):	310
Maximum Collector Cut-off Current (Na):	15
Operating Temperature Range:	-65 to 150 Degree C

Product Description

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT NPN 45V 0.1A 3-Pin SOT-23 T/R

Jump-start your electronic circuit design with this versatile NPN BC847AMTF GP BJT from Fairchild Semiconductor. This bipolar junction transistor's maximum emitter base voltage is 6 V. Its maximum power dissipation is 310 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This bipolar junction transistor has an operating temperature range of -65 °C to 150 °C. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 6 V.

Specifications
EU RoHS Compliant
Type NPN
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 50
Maximum Emitter Base Voltage (V) 6
Maximum Collector Emitter Voltage (V) 45
Maximum DC Collector Current (A) 0.1
Material Si
Maximum Power Dissipation (mW) 310
Minimum DC Current Gain 110@2mA@5V
Maximum Transition Frequency (MHz) 300(Typ)
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Maximum Collector Cut-Off Current (nA) 15
Packaging Tape and Reel
Maximum Collector Emitter Saturation Voltage (V) [email protected]@10mA|0.6@5mA@100mA
Maximum Base Emitter Saturation Voltage (V) 0.7(Typ)@0.5mA@10mA|0.9(Typ)@5mA@100mA
Mounting Surface Mount
Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
