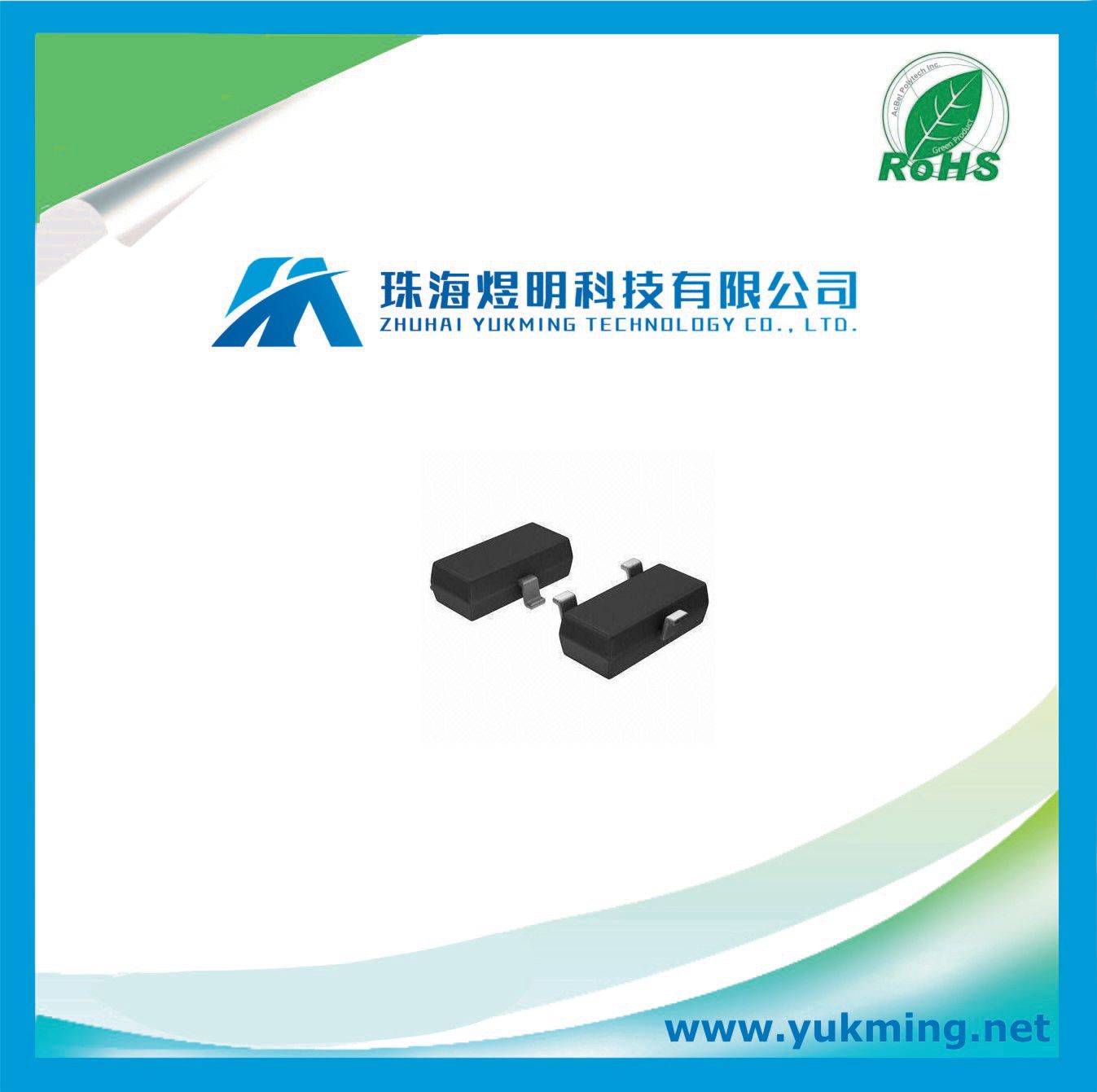

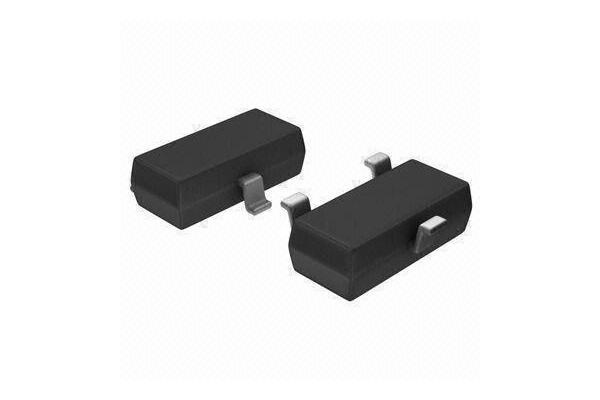

Electronic Component Versatile PNP Switching Transistor

Prod Model:	MMBT3906
Type:	PNP
Product Category:	Bipolar Small Signal
Maximum Transition Frequency:	(MHz) 250(Min)
Number Of Elements Per Chip:	1
Maximum Collector Base Voltage (V):	40
Maximum Emitter Base Voltage (V):	5
Maximum Collector Emitter Voltage (V):	40
Maximum DC Collector Current (a):	0.2
Maximum Power Dissipation (MW):	350
Operating Temperature Range:	-55 to 150 Degree C

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

Versatile PNP switching transistor GP BJT

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT PNP 40V 0.2A 3-Pin SOT-23 T/R

Design filters, receivers, transmitters, op-amps, power supplies, and control circuits with this versatile PNP MMBT3906 GP BJT from Fairchild Semiconductor. This bipolar junction transistor's maximum emitter base voltage is 5 V. Its maximum power dissipation is 350 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 40 V and a maximum emitter base voltage of 5 V.

Specifications
EU RoHS Compliant
Type PNP
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 40
Maximum Emitter Base Voltage (V) 5
Maximum Collector Emitter Voltage (V) 40
Maximum DC Collector Current (A) 0.2
Maximum Power Dissipation (mW) 350
Minimum DC Current Gain [email protected]@1V|80@1mA@1V|100@10mA@1V|60@50mA@1V|30@100mA@1V
Maximum Transition Frequency (MHz) 250(Min)
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Maximum Collector Emitter Saturation Voltage (V) 0.25@1mA@10mA|0.4@5mA@50mA
Maximum Base Emitter Saturation Voltage (V) 0.85@1mA@10mA|0.95@5mA@50mA
Mounting Surface Mount
Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
