Deson Electric Group Company Limited
Deson Electric Group Company Limited >> Electronic Hygrothermostat Cabinet Thermostat Humidity Controller Etf 012

Electronic Hygrothermostat Cabinet Thermostat Humidity Controller Etf 012

Electronic Hygrothermostat Cabinet Thermostat Humidity Controller Etf 012
Price: US $ 30-36/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: ETF 012
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Range: 0-60 / 50%-90%Rh
Mounting: 35mm DIN Rail
Size: 77X60X43mm
Weight: 200g
Usage: Drying Equipment
Control Type: Digital
Material: Plastic

Product Description

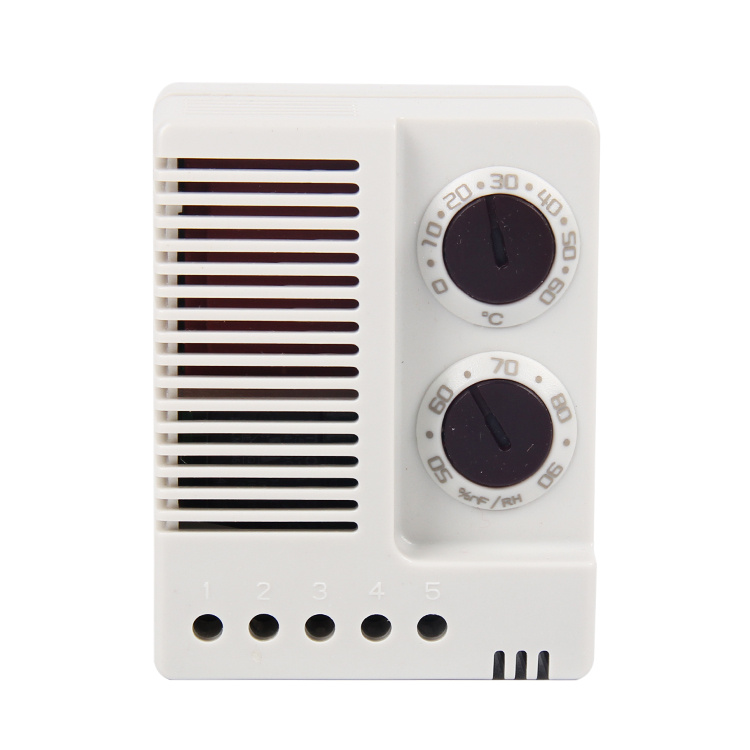

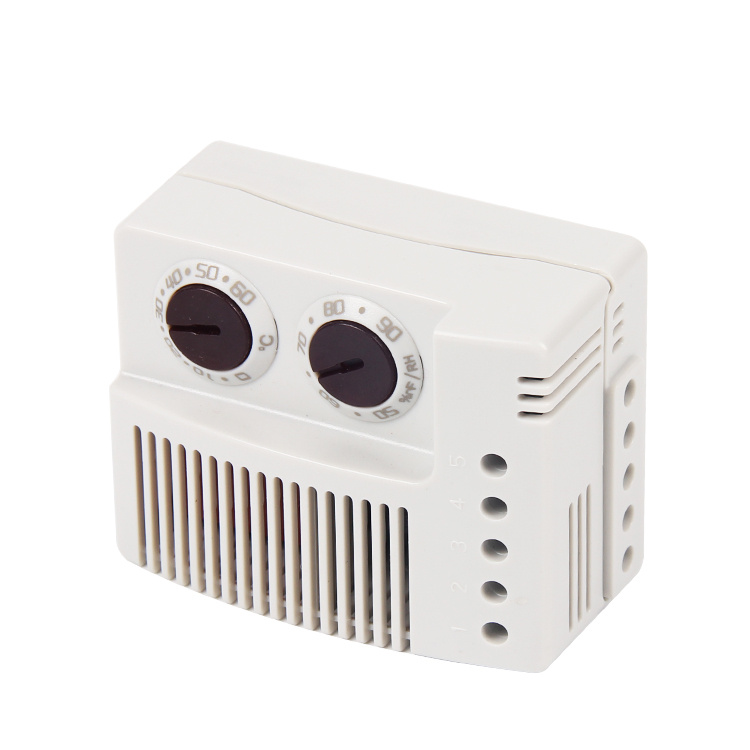

Electronic Hygrothermostat Caninet Thermostat Humidity Controller ETF 012

Electronic Hygrothermostat

1.Temperature and humidity adjustable
2.Optical operating display ( LED )
3.Switching capacity
4.Clip fixing
5.CE , LVD approved
6.2 years warranty


Switch temperature difference2K(+-1K tolerance )
Sensor element

PTC

 Service life

 > 100,000 cycles

Max. Switching capacity

NC: 240VAC, 6 (1) A
NO: 240VAC, 8 (1.6) A
NC: 120VAC, 6 (1) A
NO: 120VAC, 8 (1.6) A
24VDC , 4A

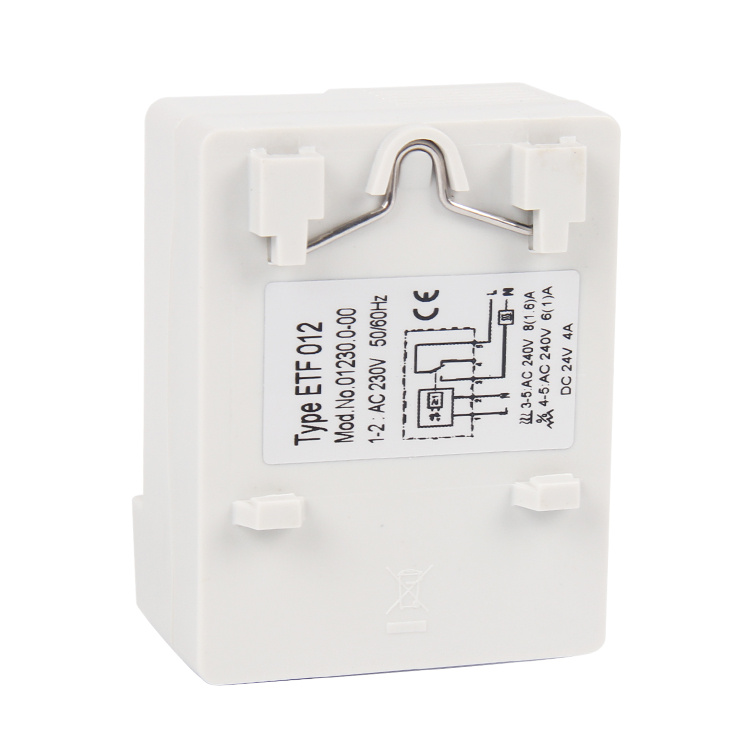

Connection

5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire  (with wire end ferrule) 1.5mm²

Mounting

clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)

Casing

plastic according to UL94 V-0, light grey

Dimensions

Weight

Protection type

77 x 60 x 46mm

approx. 200g

IP20

Operating / Storage

-45 to +80°C (-49 to +176°F)

max. 90 % RH (non-condensing)

Fitting position





variable


Details Show







Releated Products

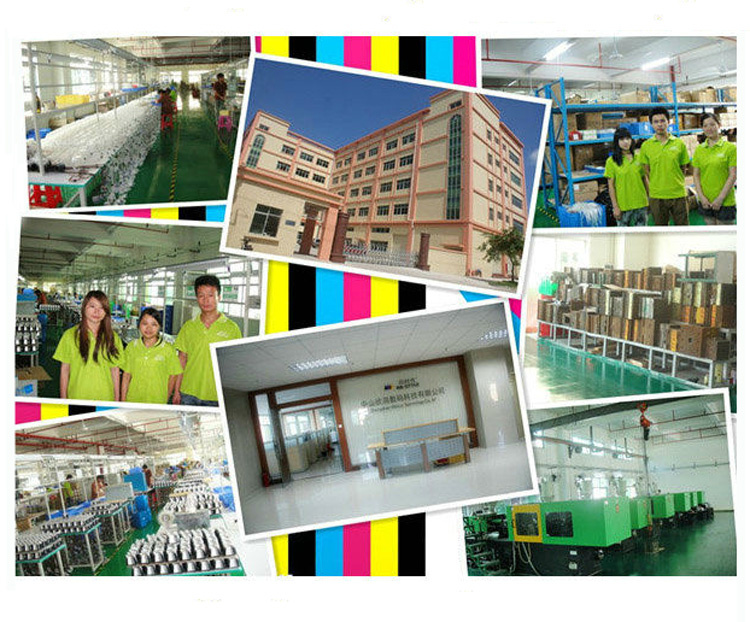

Certificates & Factory
