Yueqing Winston Electric Co., Ltd. >> Electronic Hygrothermostat/ Temperature and Humidity Controller (ETF 012)

Electronic Hygrothermostat/ Temperature and Humidity Controller (ETF 012)

Electronic Hygrothermostat/ Temperature and Humidity Controller (ETF 012)
Price: US $ 42-43/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: ETF 012
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Reaction Time (Humidity): 5 Sec.
Contact Type: Change-Over Contact (Relay)
Dimensions: 77 X 60 X 43mm
Weight: Approx. 0.2kg
Fitting Position: Vertical
Protection Type: IP20

Product Description

Specifications:

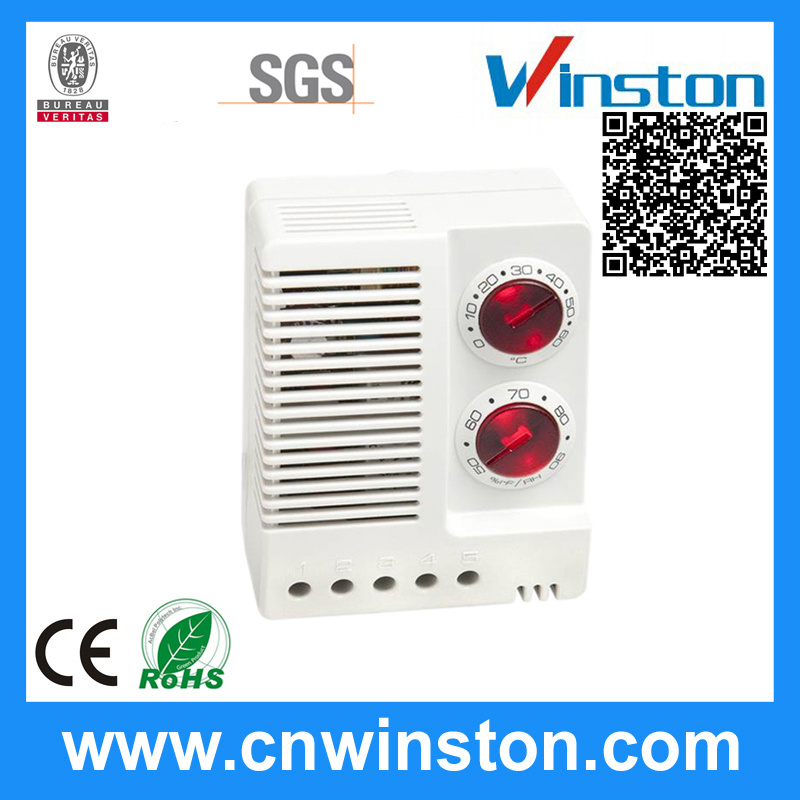

ETF 012 Electronic Hygrothermostat
Temperature and humidity adjustable
LED display
High switching capacity
Clip fixing


Product Description:
  1. Efficient temperature & humidity control
  2. Wide adjustment ranges
  3. High switching capacity
  4. Optical function displays (LED)
  5. DIN rail mountable
The ETF 012 senses the ambient temperature and relative air humidity. Depending on which contact combination is chosen, it then turns on or off a connected device if either the temperature is below or the humidity is above the set point. The integrated LED in each adjustment knob is lit when indicating the active function.

Technical data:
Art. No.Operating voltageSetting range temperatureSetting range humidityApproval
01230.0-00230VAC, 50/60Hz0 to +60°C50 to 90% RHCE
01230.9-00120VAC, 50/60Hz+32 to +140°F50 to 90% RHCE
01230.9-01120VAC, 50/60Hz0 to +60°C50 to 90% RHCE

Switch difference (temperature)2K (± 1K tolerance) at 25°C/77°F (50% RH)
Switch difference (humidity)4% RH (± 1% tolerance) at 25°C/77°F (50% RH)
Reaction time (humidity)5 sec.
Contact typechange-over contact (relay)
Service lifeNC: 50,000 cycles
 NO: 100,000 cycles
Max. Switching capacity (Relay output)NC: 240VAC, 6 (1) A
 NO: 240VAC, 8 (1.6) A
 NC: 120VAC, 6 (1) A
 NO: 120VAC, 8 (1.6) A
 24VDC, 4A
Optical indicatorLED
Connection5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mountingclip for 35mm DIN rail, EN60715
Casingplastic according to UL94 V-0, light grey
Dimensions77 x 60 x 43mm
Weightapprox. 0.2kg
Fitting positionvertical
Operating/Storage temperature0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F)
Operating / Storage humiditymax. 90 % RH (non-condensing)
Protection typeIP20

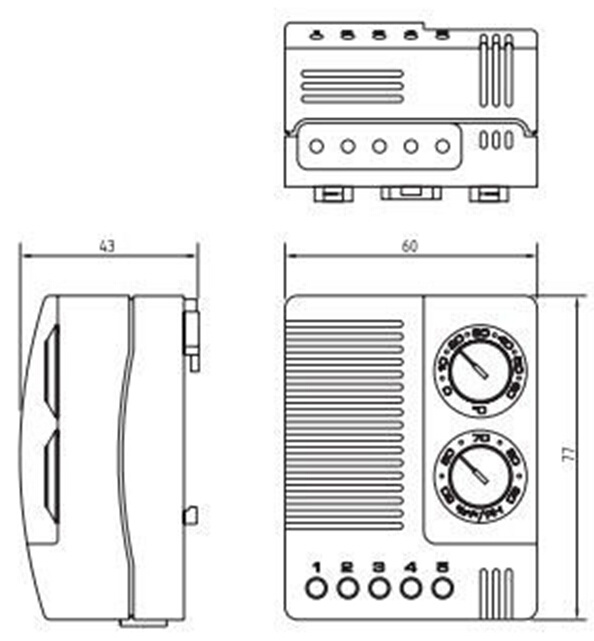

Dimension:

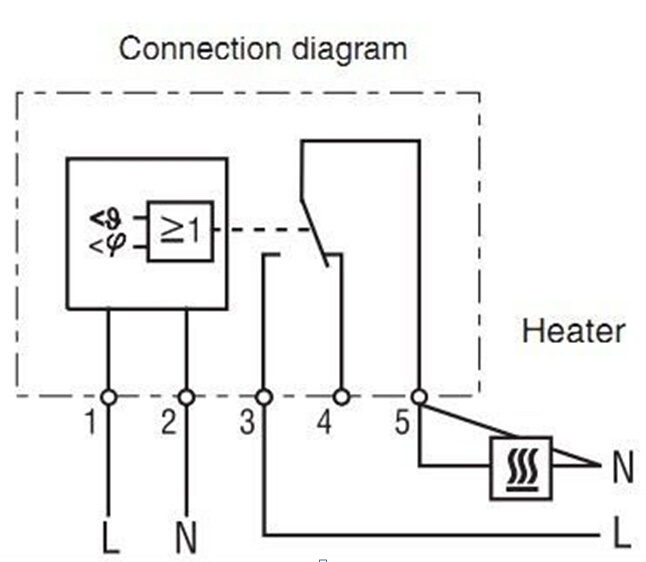

Connection diagram:




Professional Supplier of Thermostat and heater, all got CE.
Model have: KTO 011, KTS 011, SM010, TL-10B, TL-10A, ZR 011, FTO 011, FTS 011, FTD 011, FZK 011, ET 011, MFR 012, EFR 012. HG 140, HGL 046, CR 030, CR 027, HV 031, CS 028, CSF 060 and so on.
More details, please contact us.
