| Prod Model: |
JRS2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Up To: |
660V |
| Current Up To: |
630A |
| The Product Conforms To: |
IEC60947-4-1 |
Product Description
Why choose us?
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application

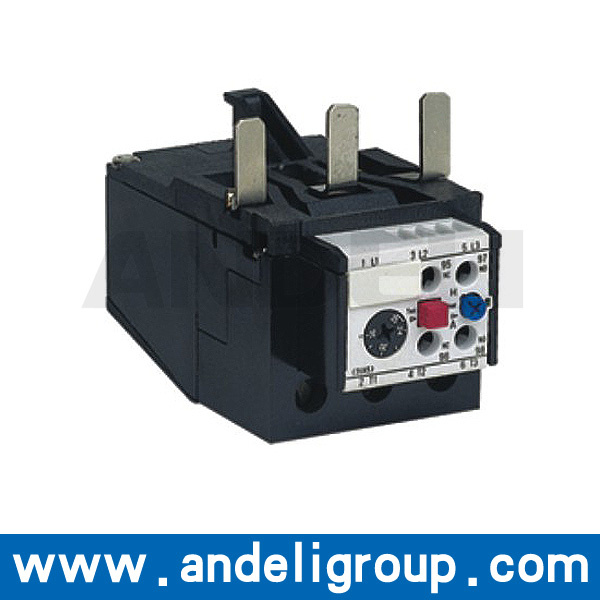

JRS2 thermal relay is suitable for AC 50/60Hz, voltage up to 660V and current up to 630A, general AC motor of long or discontinuous long operation, used as overload protection and hasthe functions of breaking phase protection, temperature compensation, and trip indication. Itcan automatically and manually get back. It can be fixed with contactor CJX1 together, also beindependtly fixed. The product conforms to IEC60947-4-1 stardand.
|
Type |
Number |
Setting range(A) |
For contactor |
|
Type |
Number |
Setting range(A) |
For contactor |
|
JRS2-12.5/Z |
0A |
0.1~0.16 |
CJX1-09
CJX1-12 |
|
JRS2-25/Z |
0A |
0.1~0.16 |
CJX1-16
CJX1-22 |
|
0C |
0.16~0.25 |
0C |
0.16~0.25 |
|
0E |
0.25~0.4 |
0E |
0.25~0.4 |
|
0G |
0.4~0.63 |
0G |
0.4~0.63 |
|
0J |
0.63~1 |
0J |
0.63~1 |
|
0K |
0.8~1.25 |
0K |
0.8~1.25 |
|
1A |
1~1.6 |
1A |
1~1.6 |
|
1B |
1.25~2 |
1B |
1.25~2 |
|
1C |
1.6~2.5 |
1C |
1.6~2.5 |
|
1D |
2~3.2 |
1D |
2~3.2 |
|
1E |
2.5~4 |
1E |
2.5~4 |
|
1F |
3.2~5 |
1F |
3.2~5 |
|
1G |
4~6.3 |
1G |
4~6.3 |
|
1H |
5~8 |
1H |
5~8 |
|
1J |
6.3~10 |
1J |
6.3~10 |
|
1K |
8~12.5 |
1K |
8~12.5 |
|
2S |
10~14.5 |
2A |
10~16 |
|
|
|
2B |
12.5~20 |
|
|
|
2C |
16~25 |
|
Type |
Number |
Setting range(A) |
For contactor |
|
Type |
Number |
Setting range(A) |
For contactor |
|
JRS2-32/Z |
1G |
4~6.3 |
CJX1-32 |
|
JRS2-63/F |
0K |
0.8~1.25 |
CJX1-09~63 |
|
1J |
6.3~10 |
1A |
1~1.6 |
|
2A |
10~16 |
1B |
1.25~2 |
|
2B |
12.5~20 |
1C |
1.6~2.5 |
|
2C |
16~25 |
1D |
2~3.2 |
|
2D |
20~32 |
1E |
2.5~4 |
|
2Q |
25~36 |
1F |
3.2~5 |
|
JRS2-45/Z |
0A |
0.1~0.16 |
CJX1-32
CJX1-38 |
1G |
4~6.3 |
|
0C |
0.16~0.25 |
1H |
5~8 |
|
0E |
0.25~0.4 |
1J |
6.3~10 |
|
0G |
0.4~0.63 |
1K |
8~12.5 |
|
0J |
0.63~1 |
2A |
10~16 |
|
0K |
0.8~1.25 |
2B |
12.5~20 |
|
1A |
1~1.6 |
2C |
16~25 |
|
1B |
1.25~2 |
2D |
20~32 |
|
1C |
1.6~2.5 |
2E |
25~40 |
|
1D |
2~3.2 |
2M |
32~45 |
|
1E |
2.5~4 |
2T |
40~57 |
|
1F |
3.2~5 |
2P |
50~63 |
|
1G |
4~6.3 |
JRS2-135 |
2H |
55~80 |
CJX1-85
CJX1-110 |
|
1H |
5~8 |
2W |
63~90 |
|
1J |
6.3~10 |
2X |
80~110 |
|
1K |
8~12.5 |
3H |
90~120 |
|
2A |
10~16 |
3J |
110~135 |
|
2B |
12.5~20 |
JRS2-150 |
2H |
55~80 |
CJX1-140 |
|
2C |
16~25 |
2W |
63~90 |
|
2D |
20~32 |
2X |
80~110 |
|
2Q |
25~36 |
3H |
90~120 |
|
2R |
32~40 |
3J |
110~135 |
|
8M |
36~45 |
3K |
120~150 |
|
JRS2-80/Z |
1G |
4~6.3 |
CJX1-45
CJX1-63
CJX1-75
CJX1-85 |
JRS2-180/F |
2H |
55~80 |
CJX1-170CJX1-205 |
|
8A |
11~17 |
2W |
63~90 |
|
2B |
12.5~20 |
2X |
80~110 |
|
2C |
16~25 |
3H |
90~120 |
|
2D |
20~32 |
3J |
110~135 |
|
2E |
25~40 |
3K |
120~150 |
|
2F |
32~50 |
3L |
135~160 |
|
2T |
40~57 |
3M |
150~180 |
|
2P |
50~63 |
JRS2-400 |
2K |
80~125 |
CJX1-110~400 |
|
2V |
57~70 |
3B |
125~200 |
|
2U |
63~80 |
3C |
160~250 |
|
8W |
70~88 |
3D |
200~320 |
|
JRS2-63/F |
0A |
0.1~0.16 |
CJX1-09~63 |
3E |
250~400 |
|
0C |
0.16~0.25 |
JRS2-630 |
3F |
|
CJX1-400 |
|
0E |
0.25~0.4 |
3G |
|
|
0G |
0.4~0.63 |
|
|
|
0J |
0.63~1 |
|
|
