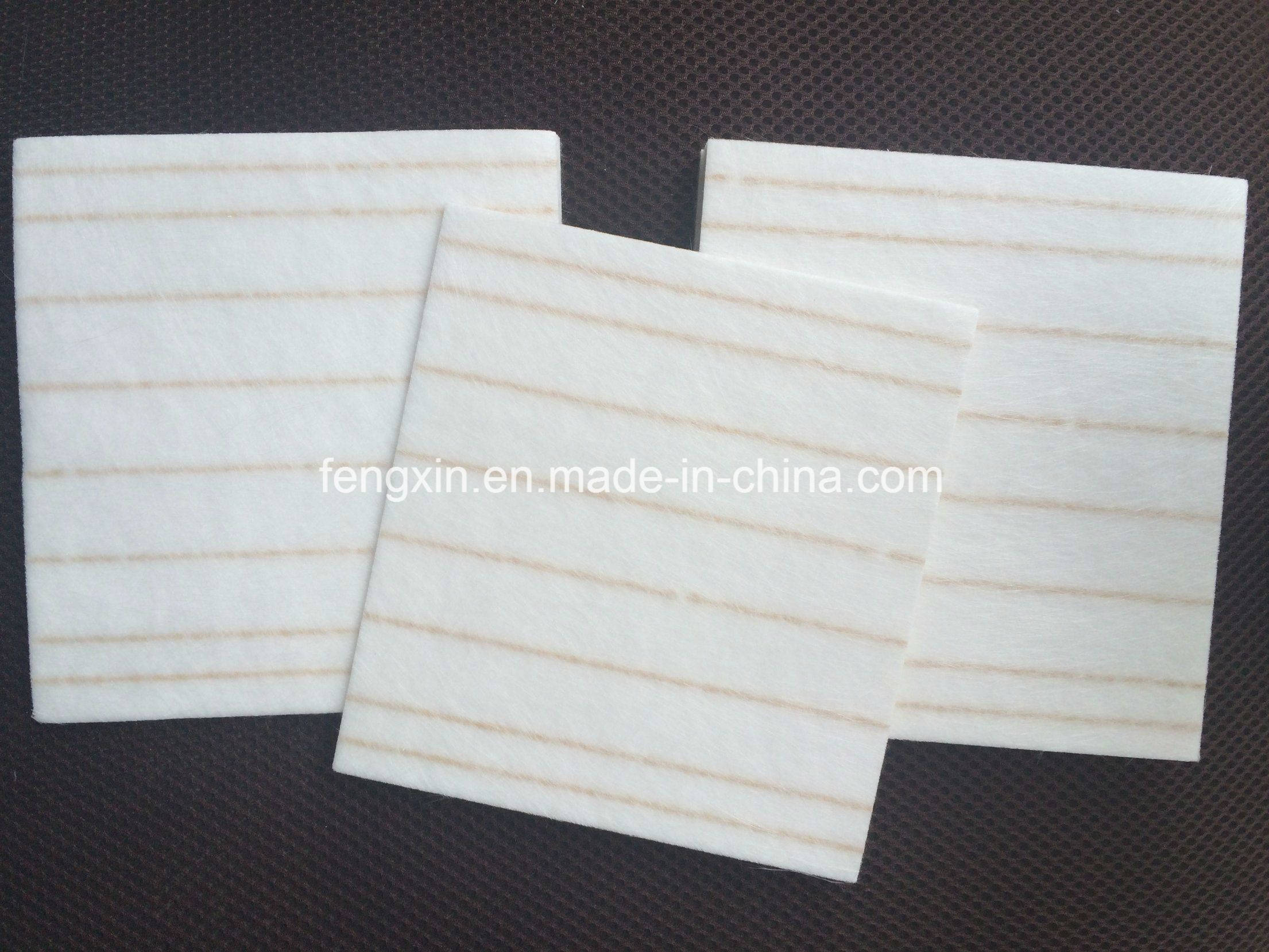

Electronic Insulation Sheet Fiberglass AGM Battery Separator
| Price: |
US $ 2.7/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
FX16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Fiberglass AGM Battery Separator |
| Dimension: |
136 X 148mm |
| Packing Style: |
Pieces Packing or Rolling Packing |
| Sample: |
Avaliable |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Organic Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
200 200 |
| Maximum Voltage: |
20KV~100KV |
Product Description
FX Fiberglass AGM Battery Separator, Lead Acid Battery, Storage Battery, UPS Battery, Lithium Battery, Fiberglass Separator, AGM Separator for Motorcycle Battery, Auto Battery, Li-ion Battery| Thickness (mm) | ±0.05 | 1.61 |
| Tensile Strength (Mpa) | ≥3.0 | 5.75 |
| Electrical Resistance (Ω.dm²) | ≤0.0015 | 0.0008 |
| Max.Pore Size (um) | ≤30 | 24 |
| Volume Porosity (%) | ≥85 | 91.9 |
The AGM separator has good acid resistance, equal thickness, high volume porosity, enough tensile strengthen both in machine direction and cross direction, good compression ability to ensure the high plate group pressure, and good insulative ability etc. It can absorb enough electrolyte, supply the channels for hydrogen and oxygen free passing to react, prevent the active materials from falling off, slow the creation of lead crystal, and reduce the loss of electrolyte in charge & loss maintenance, it is also has a long using life.
About us High performance AGM separator here gives battery-makers the opportunity to meet the most demanding application requirements.
As a manufacturer of AGM BATTERY SEPARATOR for FLOODED/VENTED lead-acid storage battery (STARTER type) & AGM SEPARATOR for VRLA/SLA storage battery (MAINTENANCE FREE type)
We are manufacturer of absorptive glassfibre mat separator for VRLA/SLA storage battery and PG (AGM glass mat separator) for flooded/vented storage battery.
Approved by China National Supervision Centre for Quality of Storage Battery, the AGM material meets the requirement of JB/T7630.1-1998 in every physical and chemical index.
The Company supplies reliable AGM material at reasonable price, as is widely praised by users home and abroad. You are welcome to visit us and become our business friends
FX Group, as a high-tech enterprise which gathering the design creation, and production service in the fields of Fiberglass products like AGM Separator, Battery Separator, Composite Separator and the accessories of trucks like Roll Up Door, Aluminum Roller Shutter for Fire-fighting trucks, the ladders and some other accessories which was established in 2005 year and waslocated in Chuzhou city.
We had two plants with the total area of 40 thousand square meters, one plant was located in Chuzhou city and one plant was located in Changzhou city. The plant in Changzhou city major involved in the fiberglass products, the production capacity of our AGM battery separator which used in the VRLA battery arrive to 5000tons/year, we have total three production lines which imported from Japan, now our year exporting annual is about 5million USD per year, and the AGM battery separator was accepted and popular in India, Vietnam, Pakistan, Middle East and some other countries also. Our another plant which located in Chuzhou city major involved in the truck accessories, all the goods quality was making according to Europe standard, till now on we had been exported our truck roll up doors to Brazil, America, Iran, Dubai UAE, India and so on
FX has a great team that own leading and professional technique, standard management and perfect service. We have built long-term and steady business relationship with hundreds of customers all over the world.
We inherit our persistent in service strategy of quality at the first priority and clients at the uppermost.
We will prvide more relaable products and offer the better, safety. And efficientcy services for you.
We are sincerely looking forward to cooperating and communicating with you.
Choose FX, Choose The Best!
