Prod Model:	Electronic limit rolling door motor / Electronic l
Number Of Stator:	Single-Phase
Function:	Control
Brand:	Xirui

Product Description

Electronic limit rolling door motor / Electronic limit AC rolling shutter door motor / Electronic limit AC 600KG / Electric Limit Rolling Door Motor

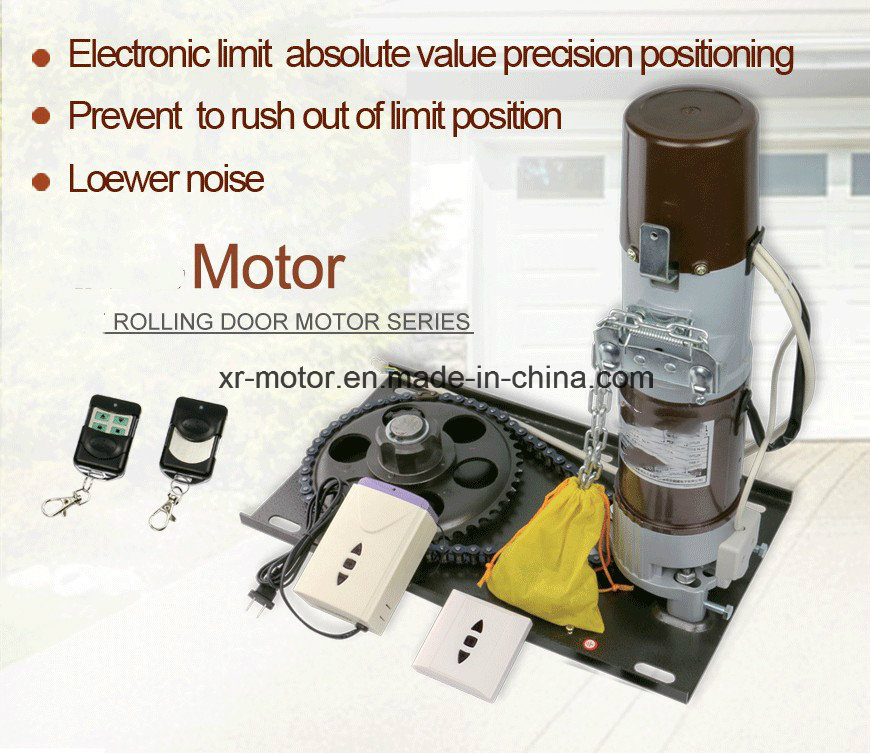

Electric limit,absolute value,precision position;prevent to rush out of limit position;lower noise

• Product Origin:GUIYANG , GUIZHOU China

• Shipping Port:GUANGZHOU,FUZHOU ,XIAMEN

• Color:brown

• Lead Time:15~30 days

• Payment:FOB CIF CNF

• Price:$67/set

• Market Price:$69

• Price Range:200-500/65$



Product Details

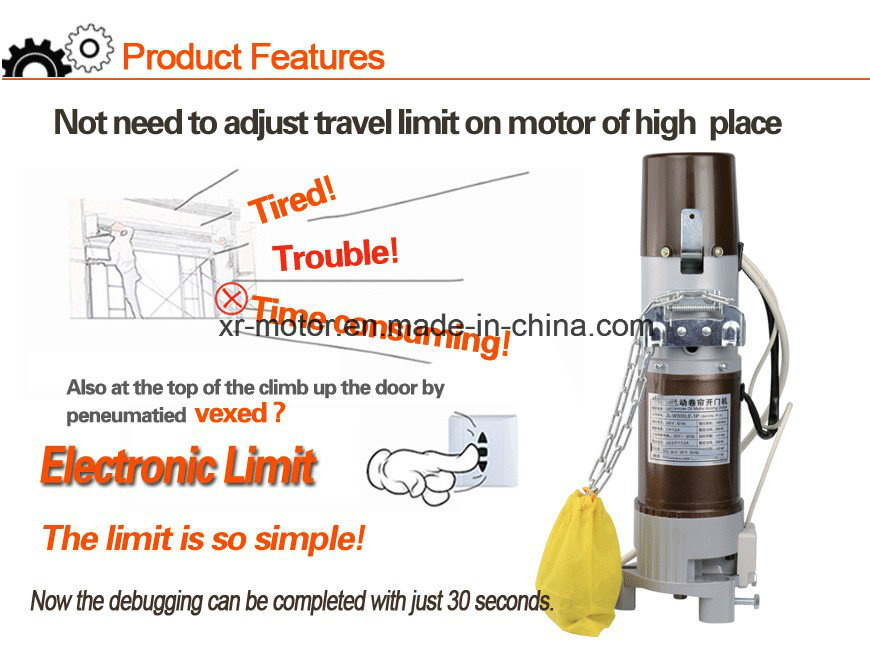

Electric Limit Rolling Door Motor Advantage

Prevent going over limit :Absolute value,more precise limit for more safety

More convenient :Only need simple operation in receiver can finish abjusting limit position

More efficiency:Only need one up and one down to finish setting limit,save much more time comparing classic motor

Much lower noise :Use 7th degree gear ,higher precision , less wear, more efficiency ,lower noise and longer using time

Features and functions:

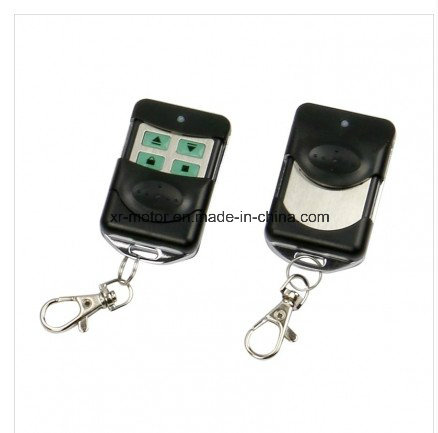

1. Remote control;
2. Low noise and small shaking;
3. With electronic anti-theft apparatus;
4. Good design, advanced struture, strong power;
5. Import electric component, security and credibility;
6. Automatically open or close the doors by pressing relevant buttons;
7. Doors are also workable under the operation of manual control equipment when power failed.

Motor Machine Characteristic:

1) Shell: Aluminium alloy, solid and lingt but durable and easy to install.
2) Gear: High-quality alloy steel and special technical treatment to guarantee the strong hoist.
3) Brake structure: Special device mechanical brakes, power cut off in an instant the brakes, to ensure absolute safety brake.
4) Limit System: Correct control, easy operation, and big control range.
5) Transmission System: High accuracy, smooth running, and low noise.
6) Anti-dropping device: Preventing accidental injury and ensure safety.

Motors Applications:
It is an ideal accessory products of modern life, which is widely used in shopping malls, hotels, warehouses, garages, post and telecommunications, banks, shops, factories and other buildings' rolling door opening and closing.

Our Service:
Any inquiry/question will be reply in 24 hours during working days.
Sample order: Available, the customers should charge the sample fee and freight cost.
OEM for customers is available.
Delivery time: 2-4 weeks after order confirmation.
Accessory size chosing: 4 inches, 5 inches, 6 inches
Packing: Carton packed fill with foam

Terms of Shipping:
By Express: FedEx/DHL/UPS/TNT/EMS, etc.
Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.
Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.

Product Description


Description	Model	Max Lifting  power	Max Lifting Height(M)	Output Power	Voltage/Frequency	Bracket size(mm)
AC Aluminum Coil Rolling door motor with remove control	300KG-1P	300KG.F	4.5	150W	220V+10%/50HZ	4"280*495*3.0
	400KG-1P	500KG.F	5	180W	220V+10%/50HZ	4"280*495*3.0
	500KG-1P	500KG.F	5	200W	220V+10%/50HZ	4"280*495*3.0
	600KG-1P	600KG.F	6	300W	220V+10%/50HZ	4/5"530*320*3.5
	800KG-1P	800KG.F	9	400W	220V+10%/50HZ	5/6"600*320*3.5
	1000KG-1P	1000KG.F	9	500W	220V+10%/50HZ	5/6"600*320*3.5
AC Copper Coil Rolling door motor with remove control	300KG-1P	300KG.F	4.5	180W	220V+10%/50HZ	4"280*495*3.0
	400KG-1P	500KG.F	5	200W	220V+10%/50HZ	4"280*495*3.0
	500KG-1P	500KG.F	5	250W	220V+10%/50HZ	4"280*495*3.0
	600KG-1P	600KG.F	6	370W	220V+10%/50HZ	4/5"530*320*3.5
	800KG-1P	800KG.F	9	400W	220V+10%/50HZ	5/6"600*320*3.5
	1000KG-1P	1000KG.F	9	550W	220V+10%/50HZ	5/6"600*320*3.5
3Phase Copper Coil Rolling door motor with remove control	1000KG-3P	1000KG-3P	9	400W	380V-450V/50HZ	6"690*360*5.5
	1300KG-3P	1300KG-3P	9	600W	380V-450V/50HZ	6/8"690*360*5.5
	1500KG-3P	1500KG-3P	9	800W	380V-450V/50HZ	8"760*410*5.5
DC Rolling door motor with  control BOX	DC 300	300KG.F	4.5	180W	DC 24V	4"280*495*3.0
	DC 600	600KG.F	6	250W	DC 24V	4/5"530*320*3.5
	DC 800	800KG.F	9			5/6"600*320*3.5



Our Advantages

1) We are a professional supplier of intelligent electric door operators over 5years, not only produce motor, but also produce remote control systems.

2) We have a professional research teams, which can make motors as your requirement, and provide unique and amazing new products.

3) Very Strict in quality control:  from raw materials, semi-finished product, complete set test before package, and tired test.

4) 2 years warranty. low failure on motor and control system.

5) Can support many safety functions which we have: photocell, safety edge, electric lock, password keypad operator, card reader.
