Electronic Overcurrent Protection RCBO 4.5ka 2p 32A 30mA MCB RCD

Name: Electronic Overcurrent Protection RCBO 4.5ka 2p 32A 30mA MCB RCD
Brand: all-electronics-online.com
SKU: 798830215
Availability: InStock
Rating: 4.4 (66 reviews)

Price:	US $ 4.5-8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKL5-63
Export Market:	Global
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Certification:	RoHS
Structure:	RCBO
Poles Number:	2p 4p

Product Description

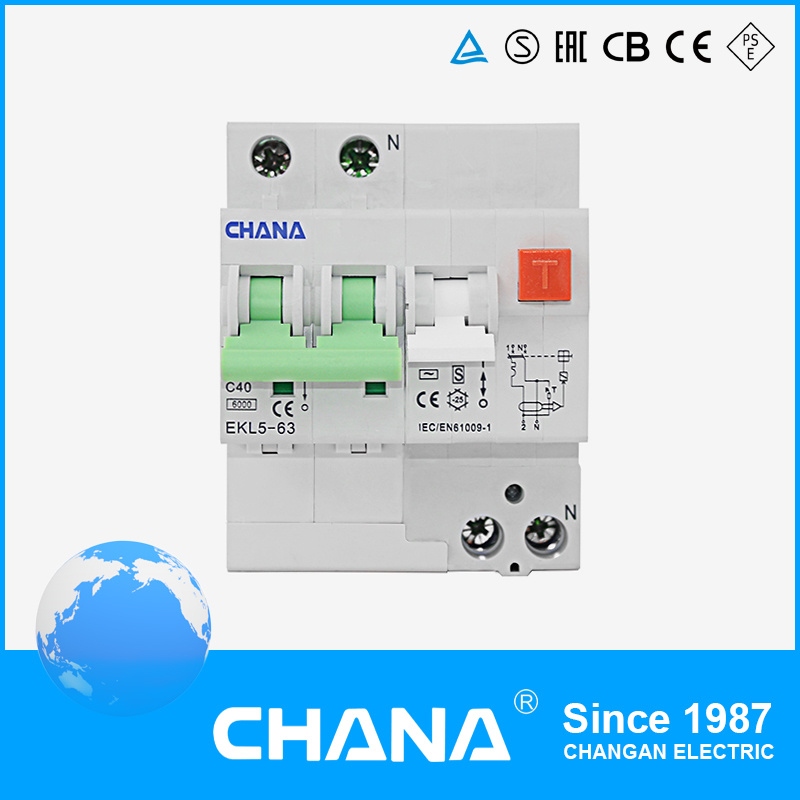

Electronic Overcurrent Protection RCBO 4.5ka 2p 32A 30mA MCB RCD
Product Description

Product Description OF RCBO
Electrical Features OF RCBO
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated current In MCB+add-on RCD block: 6, 10, 16, 20, 25, 32, 40, 50, 63A
RCBO Poles: 2P(1P+N), 4P (3P+N)
Rated voltage Ue: 240/415V
Rated sensitivity In MCB+add-on RCD block: 0.03, 0.1, 0.3A
RCBO Rated residual making and breaking capacity Im: 500A(In≤ 40A) 630(In>40A)
Rated short-circuit capacity lcn: 4, 500/6, 000A
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
RCBO Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features OF RCBO
Contact position indicator: Yes
RCBO Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation OF RCBO
Terminal connection type: Cable/U-type busbar/Pin-type busbar
RCBO Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block)

Items	Protection degree	Rated Current	Electrical Life	Mechanical Life
EKL5-63	IP20	6/10/20/32/40A	2000	2000
EKL5-63	IP20	6/10/20/32/40A	2000	2000
EKL5-63	IP20	6/10/20/32/40A	2000	2000
EKL5-63	IP20	6/10/20/32/40A	2000	2000

Items	Protection degree	Rated Current	Electrical Life	Mechanical Life
EKL3-40	IP20	6/10/20/32/40A	2000	2000
EKL3-40	IP20	6/10/20/32/40A	2000	2000
EKL3-40	IP20	6/10/20/32/40A	2000	2000
EKL3-40	IP20	6/10/20/32/40A	2000	2000

Company Profile
Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..

1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
