Prod Model: |
EOCR-SS |
Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Western Europe |
Brand: |
Winston |
Contact Load: |
Low Power |
Relay Trip Indiction: |
LED |
Wide Current Asjust Range: |
10:1 |
Ammeter Function: |
High Accuracy Relay |
Electric Remote Reset: |
Manual Instantaneous Reset |
Low Energy Consumption: |
Fail-Safe Operation |
Relay Setting Range 1: |
0.5-6A |
Relay Setting Range 2: |
3-30A |
Relay Setting Range 3: |
5-60A |
Product Description
Product Description

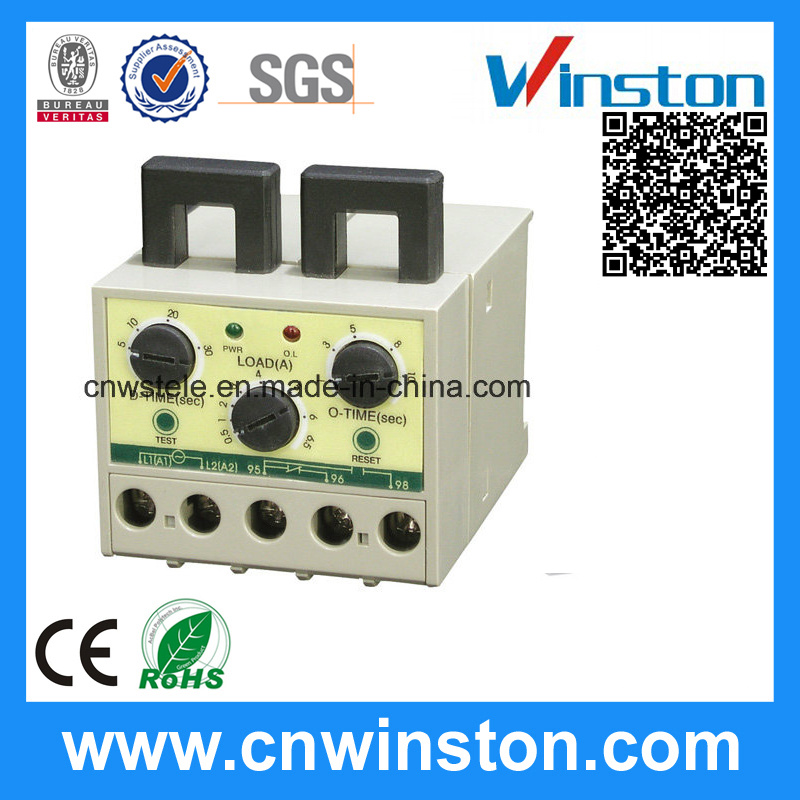

EOCR-SS Electronic Overload Relay
2 Integral Current Transformers
Electronic Shear-pin Function
Independently Adjustable Starting Trip Delay
(D-Time) & Operating Time (O-TIME)
Features
Phase Loss Protection
Typical Wiring
Compact Design
Multiple Protection Functions
Wide Current Adjustment Range (10: 1)
Ammeter Function
Trip Indication LED
High Accuracy
Manual Instantaneous Reset
Electrical Remote Reset
Test Function
Ambient Insensitive
Low Energy Consumption
Fail-safe Operation (No Volt Release)
EOCR-SS Overload relay
Model | EOCR-SS |
Working Power | AC220V, AC380V 50Hz |
Current Range | 5 type: 0.5~6A; |
30 type:3~30A |
60 type:5~60A |
Start Avoiding Time | D-Time:0.2~30s |
Phase Failure Operation Time | O-Time:0.2~10s |
Overload Operation Time |
Run Stalling Time |
Voltage controll | 220V 90-260VAC |
440V 320-480VAC |
Outline Dimension | 54*72.5*65.5mm |
Installation Mode | DIN rail/Panel |
Over-current protection is provided by tripping the relay when motor operating current (In) exceeds over-current setting (Is) of EOCR for a period greater than the preset operating time (O-Time).
During a phase loss, the motor winding current may increase by 150% or more. As the motor winding current increases, the winding temperature may also increase and possibly damage the winding insulation. The quick trip time on EOCR helps to prevent overcurrent damage to the windings.
