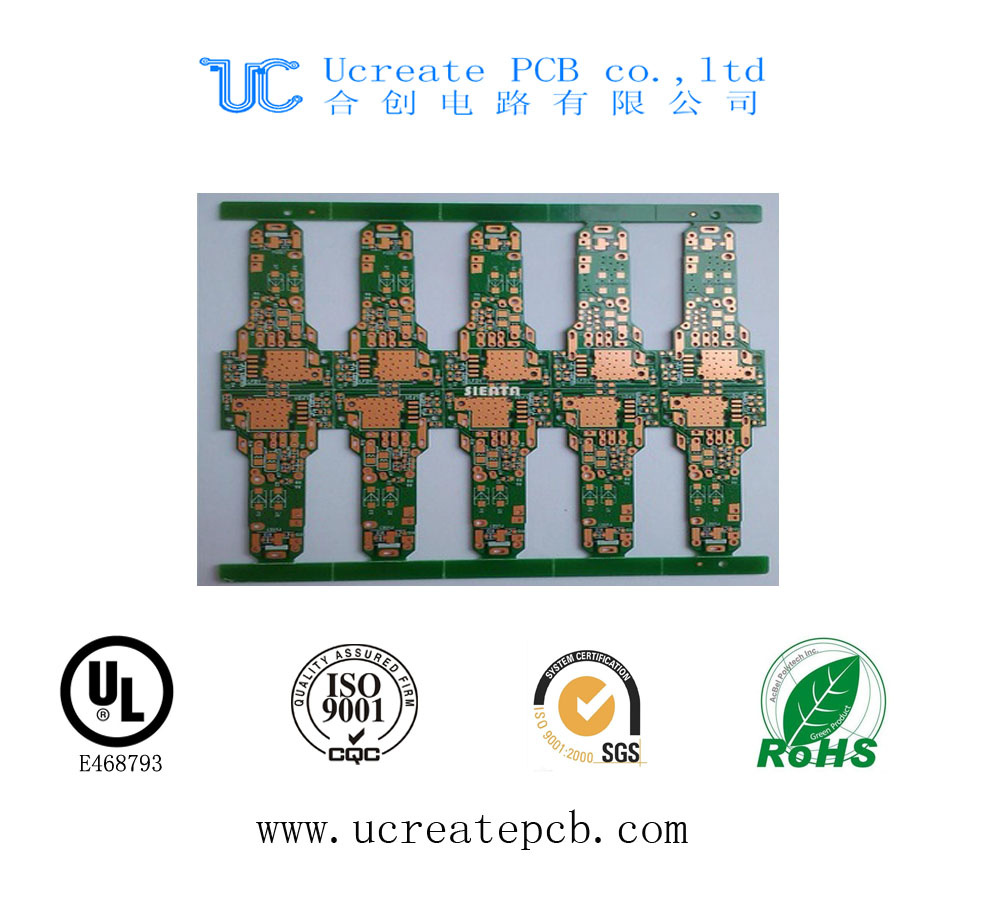

Electronic PCB Board Manufacturer with Hsal

Prod Model:	UC-25465
Board Layer:	1-24
Board Thickness:	1.6mm
Material Finished Thickness:	1/2oz
Soldermask Color:	Green/White/Black/Blue/Red/Purple…
Surface Finish:	Immersion Gold/HASL Lead Free/OPS/ Immersion Silve
Base Material Type:	Fr4
Ipc Standards:	Ipc Class II
PCB Testing:	E-Testing, Flying Probe Testing
Lead Time:	8 Working Days
Fast Turn:	3 Working Days
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Uc

Product Description

Product Description:
*Layers: 1-24
*Base material: FR-4 (TG110-180), Rogers, shenyi, Isola, Arlon, Taconic, Nelco, Aluminum Based, CEM1, Polyimide, etc…
*Thickness: 0.2-5.0mm
*Solder mask: Green, Black, Red, Yellow, White,Blue
*Min. Line width: 0.075mm
*Min. Line space: 0.075mm
*Min. Hole diameter: 0.1mm
*Surface treatment: Immersion gold, OSP. Lead free HASL.
*Impedance control, Buried-blind vias holes, HDI, Metal based,Thick copper
*lead time: Five to ten days (HDI: About 30 days)
We can also make quick pcb. As customers plates copied from the PCB, PCB design, prototype production, production, processing, and other SMT one-stop service.
Single-double sides pcb delivery time: 12-24 hours
4 layer- 8 layer pcb delivery time: 48-96 hours
Technical Capabilities

Items		Speci.	Remark
Max panel size		32" x 20.5"(800mm x 520mm)
Min trace width/ space (inner layer)		4mil/4mil(0.1mm/0.1mm)
Min PAD (inner layer)		5 mil(0.13mm)	hole ring width
Min thickness(inner layer)		4 mil(0.1mm)	without copper
Inner copper thickness		1~4 oz
Outer copper thickness		0.5~6 oz
Finished board thickness		0.4-3.2 mm
Board thickness tolerance control	±0.10 mm	±0.10 mm	1~4 L
	±10%	±10%	6~8 L
	±10%	±10%	≥10 L
Inner layer treatment		brown oxidation
Layer count Capability		1-30 LAYER
alignment between ML		±2mil
Min drilling		0.15 mm
Min finished hole		0.1 mm
Hole precision		±2 mil(±50 um)
tolerance for Slot		±3 mil(±75 um)
tolerance for PTH		±3 mil(±75um)
tolerance for NPTH		±2mil(±50um)
Max Aspect Ratio for PTH		8:1
Hole wall copper thickness		15-50um
Alignment of outer layers		4mil/4mil
Min trace width/space for outer layer		4mil/4mil
Tolerance of Etching		+/-10%
Thickness of solder mask	on trace	0.4-1.2mil(10-30um)
	at trace corner	≥0.2mil(5um)
	On base material	≤+1.2mil   Finished thickness
Hardness of solder mask		6H
Alignment of solder mask film		±2mil(+/-50um)
Min width of solder mask bridge		4mil(100um)
Max hole with solder plug		0.5mm
Surface finish		HAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver.
Max Nickel thickness for Gold finger		280u"(7um)
Max gold thickness for Gold finger		30u"(0.75um)
Nickel thickness in Immersion Gold		120u"/240u"(3um/6um)
Gold thickness in Immersion Gold		2u"/6u"(0.05um/0.15um)
Impedance control and its tolerance		50±10%,75±10%,100±10% 110±10%
Trace Anti-stripped strength		≥61B/in(≥107g/mm)
bow and twist		0.75%

We specilized in :
Ucreate is specialized in the production of a variety of single, double, high multi layers, HDI, the metallic substrate and FPC PCB. With laser drilling machine, CNC drilling machine, automatic machine, automatic exposure machine, large-scale lamination machine, Automatic flow production line, auto panel plating line, auto P.T.H Line, and other precision production equipments and AOI testing machine, flying probe tester machine and other advanced detection equipments.

PCB assembly Equipment:
1. High speed and precision chip placer or multi-function SMD mounter
2. Wave soldering machine
3. Vacuum machine
4. High temperature box
5. Auto-solder paste printer
6. Hot- and mixed-air reflow
7. Collimated Exposure Machine…


1. Components list
(a) Specification, brand, footprint
(b)To short the lead time, please kindly advise us if there is any acceptable components substitution.
(c) Schematic if necessary
2. PCB board information
(a) Gerber files
(b) PCB board processing technic
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Package requirement

Why Choose Us?
1. Your inquiry related to our products or prices will be replied in 24hrs.

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM&ODM, we can help you to design and put into product.

4. Distributorship are offered for your unique design and some our current models

5. Protection of your sales area, ideas of design and all your private information


Trade Terms:
1. Payment: T/T in advance (Western Union , PayPal is welcomed)

2. Sample can be delivered in 3 days

3. Shipping freight are quoted under your requests

4. Shipping port: Shen zhen,Mainland China

5. Discounts are offered based on order quantities

6. MOQ: 1PCS


Package &Shipping Methods:
1.Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement
