Electronic Plug with Photo Sensor, Automatic Day-Night Switch

Name: Electronic Plug with Photo Sensor, Automatic Day-Night Switch
Brand: all-electronics-online.com
SKU: 729671652
Availability: InStock
Rating: 4.8 (31 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	601
Type:	Automatic Sensor Switch

Product Description

Basic Specification:

The photoelectric plug JL-601 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level. Because of the double inserts, therefore the extension is very strong. And the inserts have the difference in the size, so the safety performance is enhanced.

Model	JL-601A	JL-601B
Rated Voltage	100-120VAC, 50/60Hz	200-240VAC, 50/60Hz
Rated Loading	150W Tungsten
Power Consumption	max 1.5W
On/Off Levels	30-50Lx (identical degree of illumination)
Ambient Temperature	-40ºC ~ +70ºC
Related Humidity	99%
Body Meas.	60mm x 32mm x 26mm
Insert Length	standard double inserts
Approx. Weight	31.5g

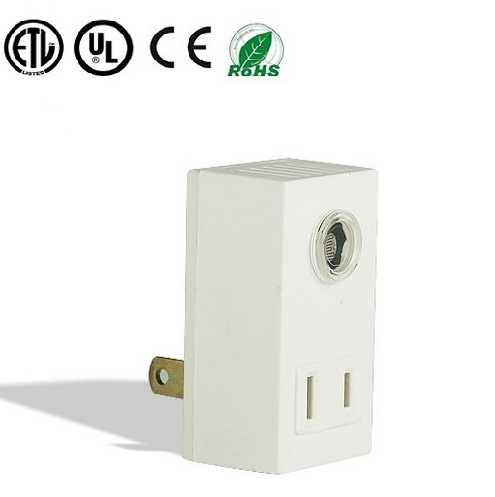

Product Pictures:

Installation:

The installation is very simple, only need insert it into the power plug. Then insert the load into the JL-601.

Do not install the plug with the photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.
