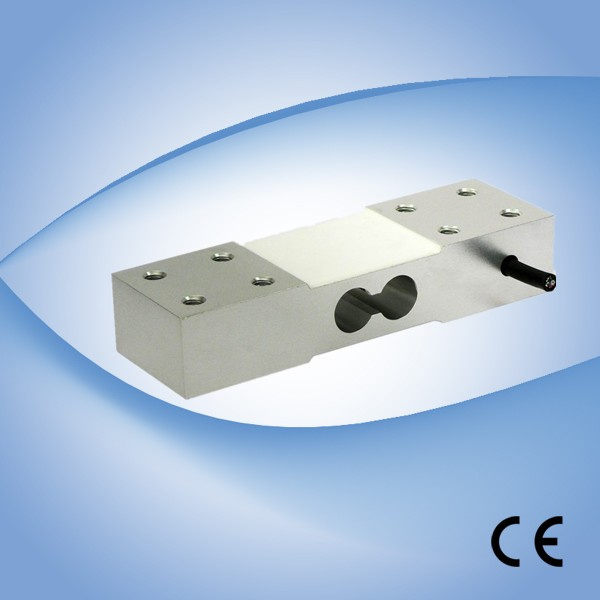

Electronic Scales Sensor Load Cell/Double Parallel Beam Sensor

Prod Model:	QL-15C
Defend Grade IP65:	Capacity 20~300kg

Product Description

Electronic scales sensor load cell
QL-15C load cells are available in the capacities from 20kg to 300kg.
Aluminum alloy construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic price computing scale, electronic weight scale, electronic platform scales ,etc.

Features:
1.Capacity : 20kg of 300kg
2.Defend grade:  IP65
3.High accuracy,reliable performance.
4.Integral structure,easy installation.
5.Recommended platform size:350 × 400 (mm)


Technical Specifications

Specifications:
capacity	kg	20 ~ 300
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	± 1.5
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.02
input resistance	Ω	406 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	°C	-20 ~ +60
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.02
temperature coefficient of ZERO	%FS/10°C	± 0.03


Electrical connection:
Excitation+ red     Excitation- black   Signal+ green   Signal- white
Four-core shielded cable.
Cable diameter : 5mm
Cable length : 3m

Ordering code: model-range- rated output-accuracy-defend grade- the length of cable
Example: QL-15C-300kg-2.0mV/V-0.02%FS-IP65-3m

Packaging & Shipping
Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
According to the clients requirement

Our Services
We are committed to providing a high quality,and responsive services to all clients
Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems.  All products will be checked by our quality-control and enclose with testing data.
Packageing:  well box packed and provide optimal freight for you refrence.
All products OEM available
