Electronic Switch (Mcd-3 with CE Approved

Name: Electronic Switch (Mcd-3 with CE Approved
Brand: all-electronics-online.com
SKU: 763786795
Availability: InStock
Rating: 5 (33 reviews)

Price:	US $ 1/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MCD-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	G11/4 "

Product Description

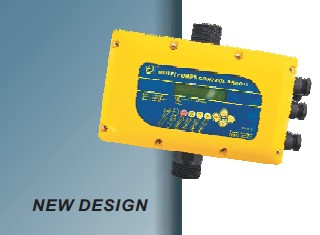

MCD-3 Pressure controller for multiple-pump set
Rated Voltage: 220V-240V
Max pump1.current: 10A
Max pump2.current: 10A
Max pump3.current: 10A
Max. power: 1.1KW
Starting pressure setting: 1.5-3.0bar
Max.working pressure: 10bar
Frequency: 50/60Hz
Protection rating: IP54
Connection thread: G11/4 "
Max.working temperature: 50ºC
Max.set pressure: 6bar
Max.environment temperature: 55ºC

MCD-3 is a kind of small automatic control devices for three sets of
single-phase pumps. The electronic system controlled by the
software can satisfy various pump requirements for safety and
efficiency. Also the pressure sensor contained is able to detect the
system pressure changes while the flow transducer can optimize the
water application system at low flow rate and at the same time avoid
pump dry running.Each start of pump running can be controlled by
alternation of the relay's process and the LCD gives an intuitive and
easy access to the parameter settings.
