Electronic Temperature Controller Sg-8000 Easy Installation

Name: Electronic Temperature Controller Sg-8000 Easy Installation
Brand: all-electronics-online.com
SKU: 727868972
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SG-8000

Product Description

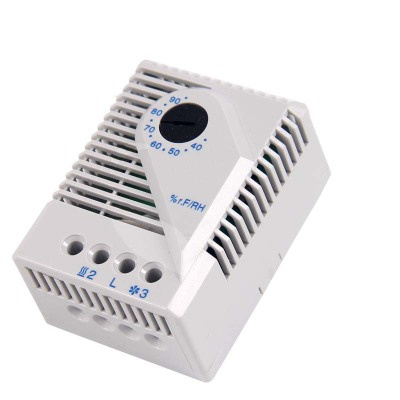

The electromechanical hygrostat MRF 012 is designed to control enclosure heaters

so that the dew point is raised when a critical relative humidity of 65% is exceeded.

In this way condensation and corrosion is effectively prevented.

Switch difference	4% RH (±3% tolerance)
Permissible air velocity	15m/sec
Contact type	change-over contact
Contact resistance	< 10mOhm
Service life	> 100 000 cycles
Min. switching capacity	20V AC/DC 100 mA
Max. switching capacity	250 VAC, 5 (1) A
Max. switching capacity	DC 20W
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN50022
Casing	plastic according to UL94 V-0, light grey
Dimensions/ weight	67 x 50 x 38mm approx. 60g
Fitting position	variable
Operarting/Storage temperature	0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F)
Protection type	IP20

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
