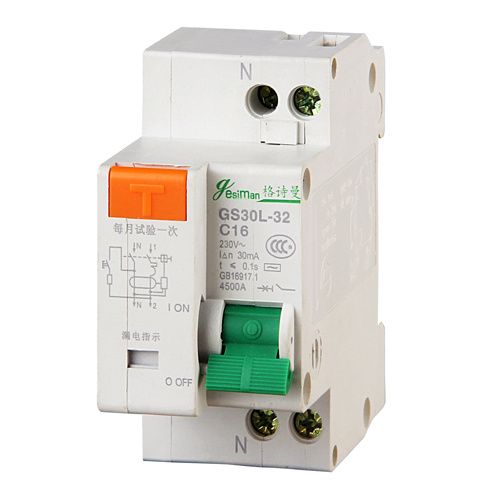

Electronic Type with Overcurrent Protection Circuit Breaker RCBO

Prod Model:	GS30L-32
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCB
Certification:	CE
Poles Number:	1p+N

Product Description

Product Description
Electrical Features OF RCBO
 Type (wave form of the earth leakage sensed):AC,A
 RCBO Thermo-magnetic release characteristic:B,C
 Rated current In :6, 10, 16, 20, 25, 32A
 Poles:1P+N
RCBO  Rated voltage Ue: 230/240V
 Rated sensitivity :0.01, 0.03, 0.1, 0.3A
 Rated residual making and breaking capacity :500A
 Rated short-circuit capacity lcn:3,000A
RCBO  Break time under I?n :0.1s
 Rated frequency:50/60Hz
 Rated impulse withstand voltage (1.2/50)Uimp:4,000A
 Dielectric TEST voltage at ind. Freq. for 1min:2kV
 Insulation voltage Ui:300V
 Pollution degree:2
Mechanical Features OF RCBO
 Electrical life:2,000
 Mechanical life:4,000
 Contact position indicator: Yes
 RCBO Protection degree:IP20
 Ambient temperature (with daily average35?): -5...+40?
 Storage temperation: -25...+70?
Installation OF RCBO
 Terminal size top/bottom for cable: 10mm2
 Terminal size top/bottom for busbar: 10mm2
 Tightening torque 1.2 N*m
RCBO  Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
 Connection :From top

1. We already get the certificate of ISO9001, CE,
2. We have completely sales service system, ensure every detail is going smooth.
3. We have new designed products each year by our R&D Department.
4. Perfect testing system ensure each product is qualified.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptable

Warranty:
1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
Dimensions(mm) OF RCBO
