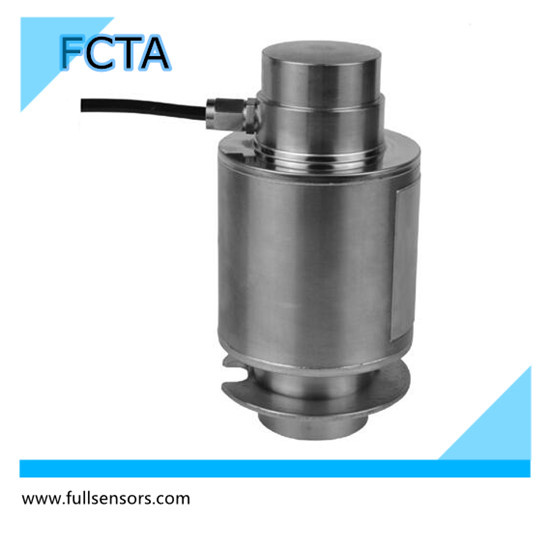

Electronic Weighing Scale Sensor Column Type IP68 Load Cell
| Price: |
US $ 1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FCTA |
| Capacity: |
10, 15, 20, 30, 40, 50t |
Product Description
Electronic Weighing Scale Sensor Column Type 10t to 50t IP68 Auto Parts Load Cell
1. Self-restoring function
2.Nominal loads: 10t-50t
3. Simple to install
4. Laser welded IP68
5.Meet EMC/ESD requirements according to EN 45 501
6. CE, OIML, ISO9001 etc
Specifications/Parameters| Item | Unit | Parameter |
| Accuracy class to OIML R60 | | C2 | C3 |
| Maximum capacity (Emax) | Ton | 10, 15, 20, 30, 40, 50 |
| Minimum LC verification interval (Vmin) | % of Emax | 0.0200 | 0.0100 |
| Sensititivity(Cn)/Zero balance | mV/V | 2.0±0.002/0±0.02 |
| Temperature effect on zero balance (TKo) | % of Cn/10K | ±0.02 | ±0.0170 |
| Temperature effect on sensitivity(TKc) | % of Cn/10K | ±0.02 | ±0.0170 |
| Hysteresis error(dhy) | % of Cn | ±0.0270 | ±0.0180 |
| Non-linearity(dlin) | % of Cn | ±0.0250 | ±0.0167 |
| Creep(dcr) over 30 min | % of Cn | ±0.030 | ±0.0167 |
| Input (Rlc) &Output resistance(Ro) | Ω | 700±20 & 703±3.5 |
| Nominal range of excitation voltage (Bu) | V | 5~12 |
| Insulation resistance(Ris) at 50Vdc | MΩ | >5000 |
| Service temperature range (Btu) | ºC | -30...+70 |
| Safe load limit (El)&Breaking load(Ed) | % of Emax | 150&250 |
| Protection class according to EN60 529(IEC529) | | IP68 |
| Material: Measuring element + housing | | Alloy Steel or Stainless Steel
Stainless steel |
| Maximum capacity (Emax) | ton | 10 | 15 | 20 | 30 | 40 | 50 |
Min.scale verification(emin) according to En45501
(...#=max. Number of load cells) | kg | 5
(6#) | 5
(6#) | 5
(6#)
10
(8#) | 10
(8#) | 10
(6#)
20
(8#) | 10
(4#)
20
(10#) |
| Recommended maximum weighing capacity of scale | ton | 20 | 20 | 50
80 | 100 | 120
150 | 100
200 |
| Deflection at Emax(snom), approx | mm | 0.55 | 0.55 | 0.65 | 0.75 | 0.85 | 0.85 |
| Weight (G), approx | kg | 2.8 | 3.2 | 3.2 | 3.6 | 3.6 | 3.8 |
| Cable:D5mm, Length | m | 10 | 12 | 12 | 14 | 16 | 16 |

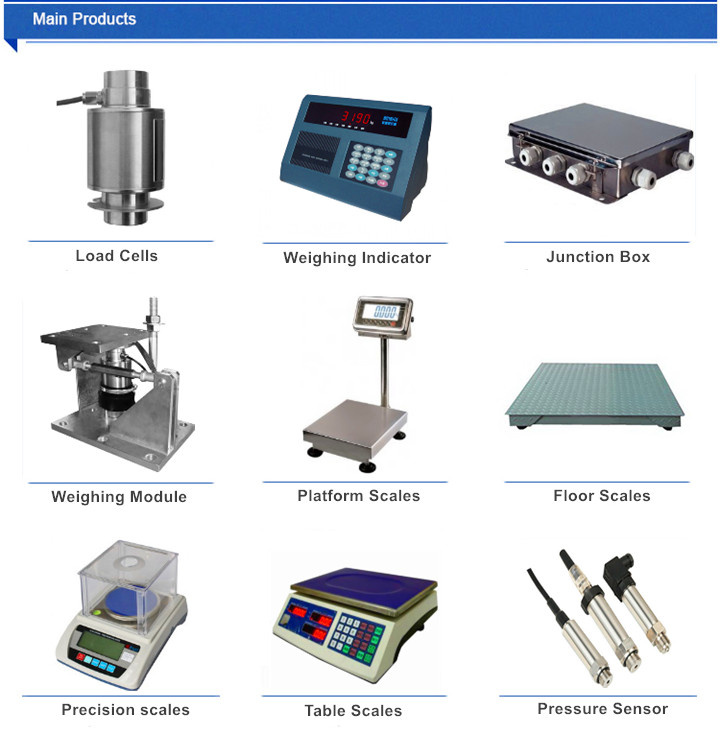

Varieties of products related to load cells as below, that meet all your needs, and save your time, welcome to browse our website to get more surprises.

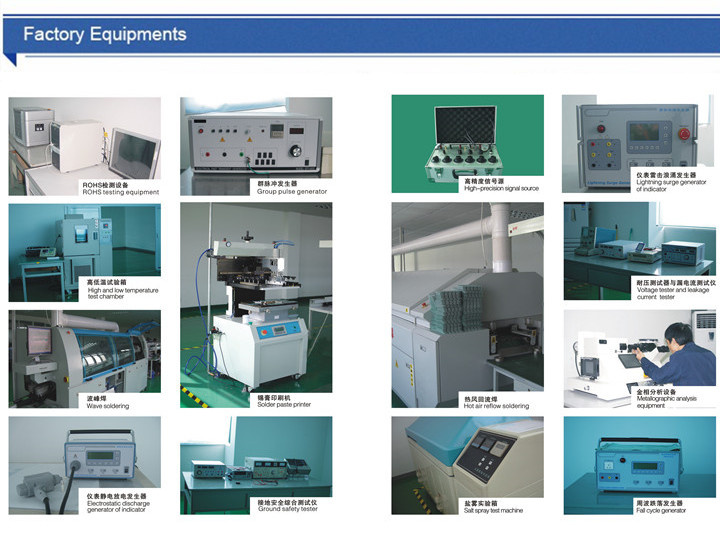

So many kinds of test equipments are used for pre-shipment inspection, in order to make sure all performance of our products reaches the optimal standard.
>>> Independent small inner box is used to protect each product;
>>> Then 6-10 pcs inner boxes place in a carton with bandage;
>>> Several cartons place on a pallet, easy to unload cargo;
>>> Last but not least, all cartons are wrapped with moistureproof plastic wrap,it's strongly necessary for goods shipped by sea.
DHL, UPS, EMS, TNT ect Express and by air or by sea, any shipping method is available, and we will account price and haulage time of each way for your selection before placing order.

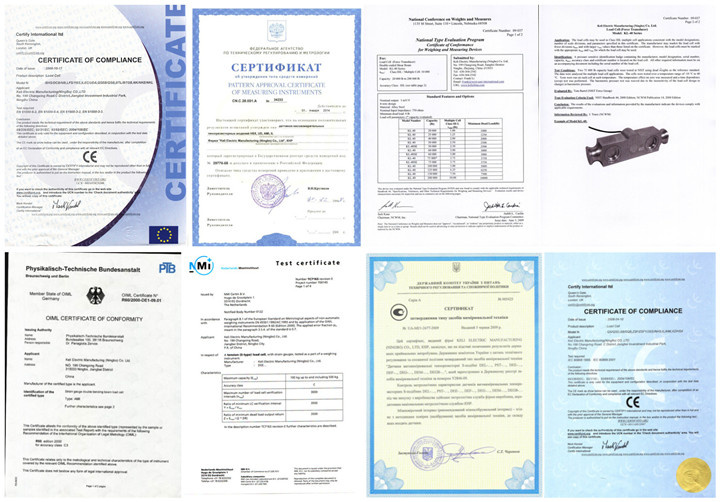

CE, RoHs, ISO9001, OIML etc certificates, ensure products with high-class quality for all customers.
