Electronics Circuit Board PCB Assembly

Prod Model:	FD-BOARD
Type:	Rigid Circuit Board
Flame Retardant Properties:	V2
Dielectric:	FR-4
Material:	Aluminum

Product Description

1.Production Introduce

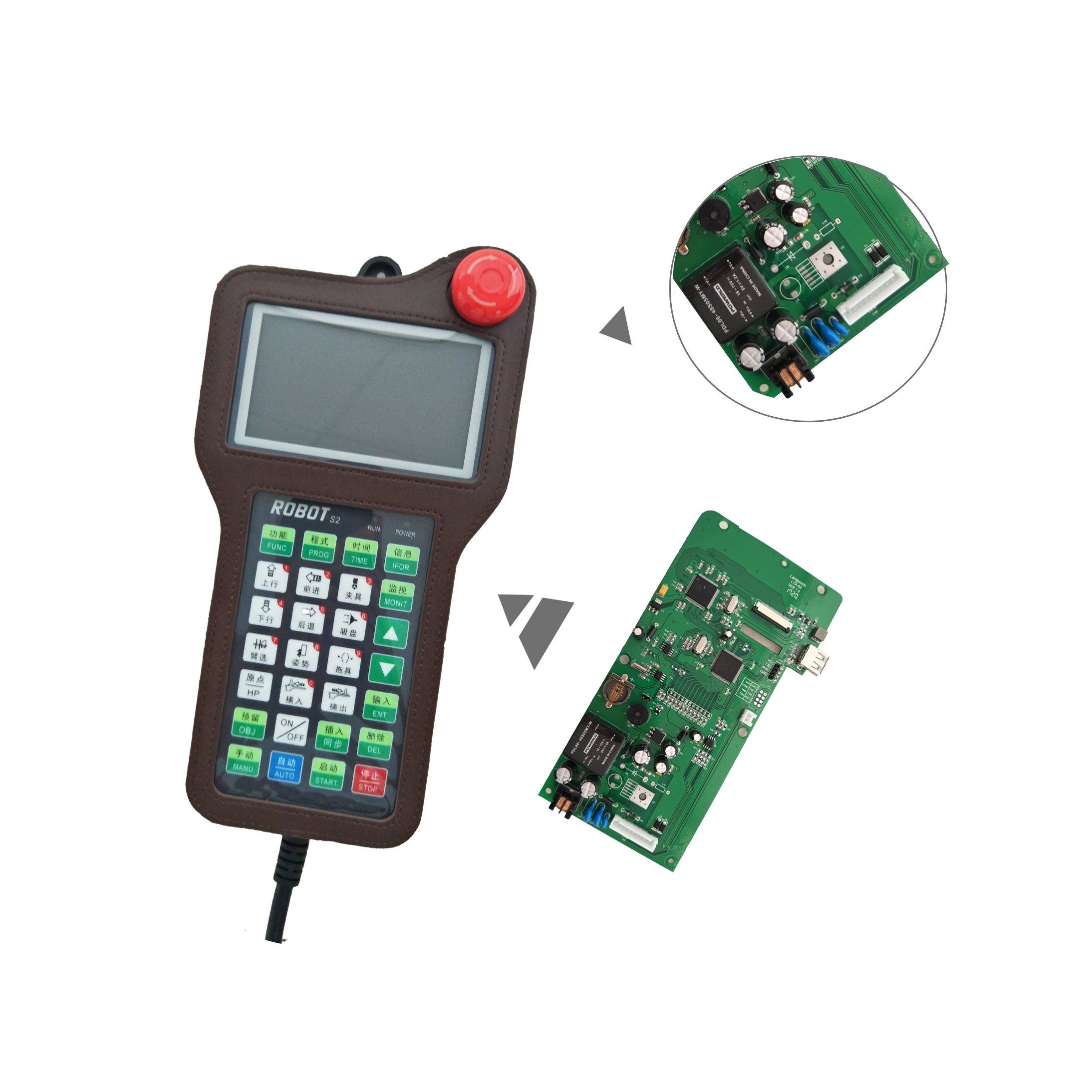

Controller with 16-bit ARM processor, equipped with SOLOMON dedicated display driver chip can display 4.3-inch large-screen color, so that the program processing faster, and can run multiple instructions in parallel. A large number of high-end all-pneumatic manipulator or non-standard industry.

Performance Advantage
4.3-inch large-screen color display, to provide users more human-computer interaction interface information.
open action instruction instructions, easy to learn and easy to use.
multi-channel backup 1/0, can be flexible to teach, to adapt to different production needs.



2.Appliance Range:

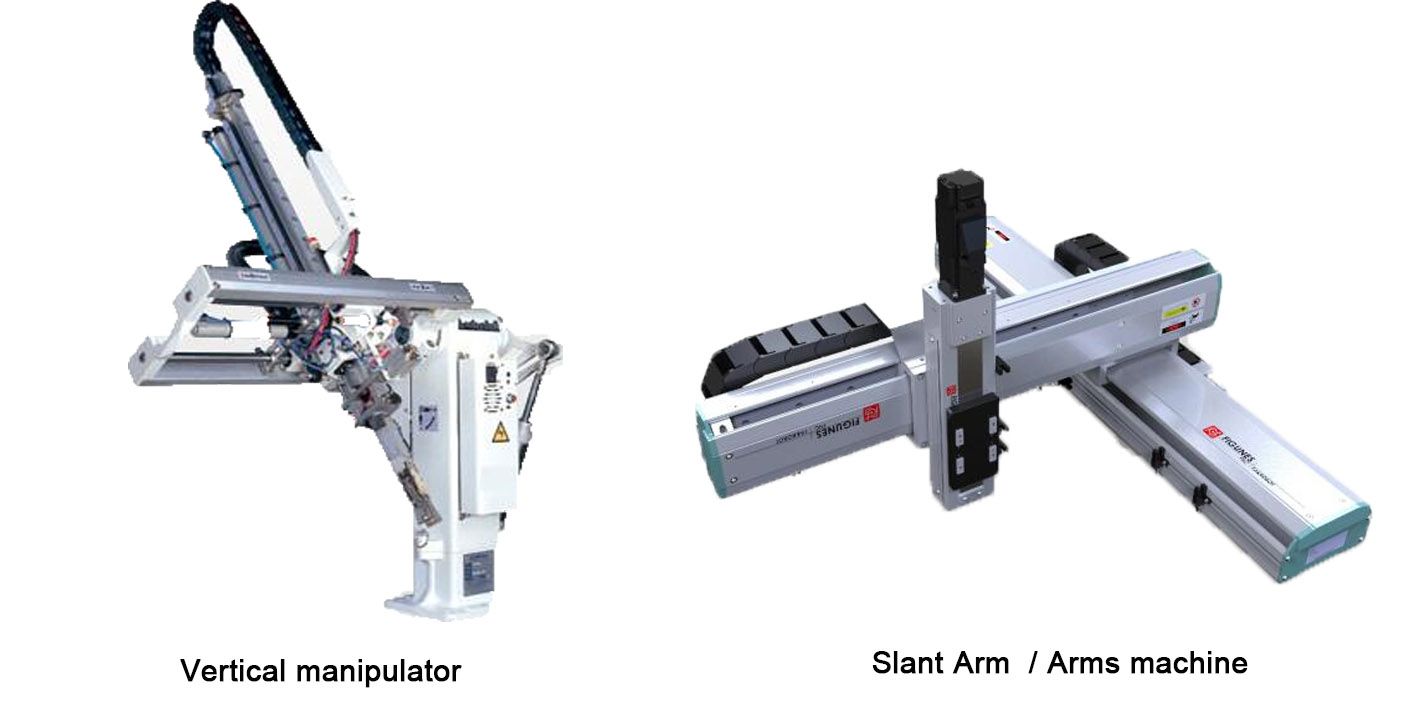

A.Vertical manipulator       B.Slant Arm  / Arms


3.System Features
a. High stability, High reliability
Input filter and power down protection function
According to a panel. The German PET, high precision technology, in the longest life
After strict three prevention treatment
Inverter protection, output point over-current protection

b. Small models, high configuration, large capacity, high speed
4.3-inch TFT LCD screen, resolution 480 * 272, the screen brightness of 450 / m²
Permanent data storage, there is no data loss
Up to 100 programs, of which 18 are fixed and 82 can be edited

c. Rich features to meet complex multitasking requirements
The user can self - USB update boot the main screen
More flexible configurable reservation, including input 3 groups, output 3 groups can freely set its function
Support Chinese and English language switching
Plug and Play USB update
Sub - level intelligent alarm prompt, user - friendly operation

d.Reliable user rights security
Support hierarchical password protection

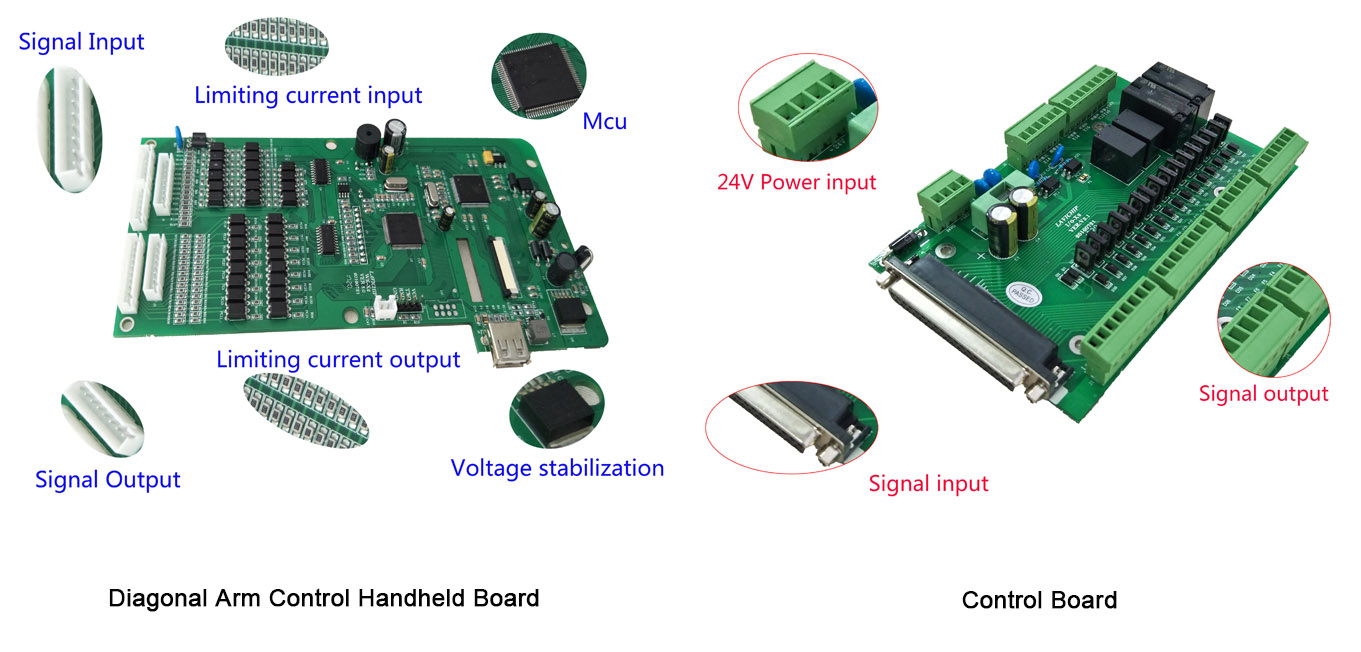

4.Detail Part



5.Teachnical Data:

Item		Index
System
	Processor
		CPU Cortex-A8 highest frequency 1GHZ + 32-bit DSP
	System power consumption	DC24V ~ 0.12A P = 2.8W
	Response time	0.01S
Enter 15groups	Input Method	Contact input or NPN input (leakage type, optocoupler isolation), impedance 4.7K
	Input Current	DC24V 5MA
Output 16groups	Output Method	NPN open collector output, current 0.5A, with short circuit overload protection
		Relay output DC30V 10A, 250V / 5A
	Overcurrent protection	Transistor 0.5A self-healing protection device
Operating temperature		-10 ° C - + 65 ° C Temperature 90%
Resistant to vibration		Displacement: 10mm, acceleration: 10M / S2, frequency 5 ~ 150HZ
