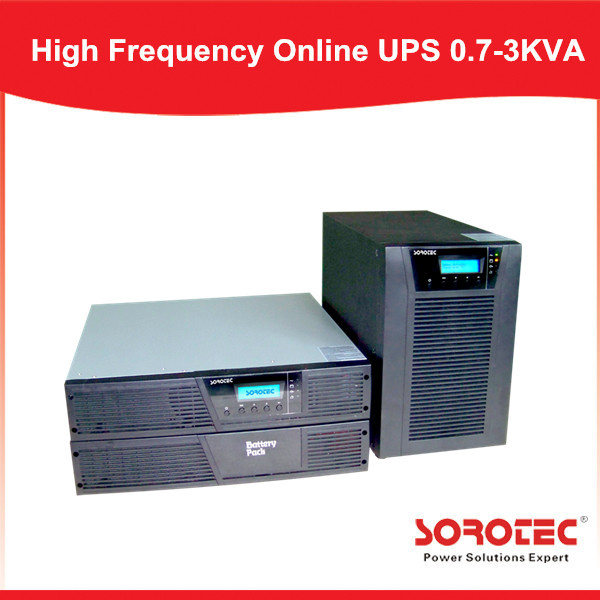

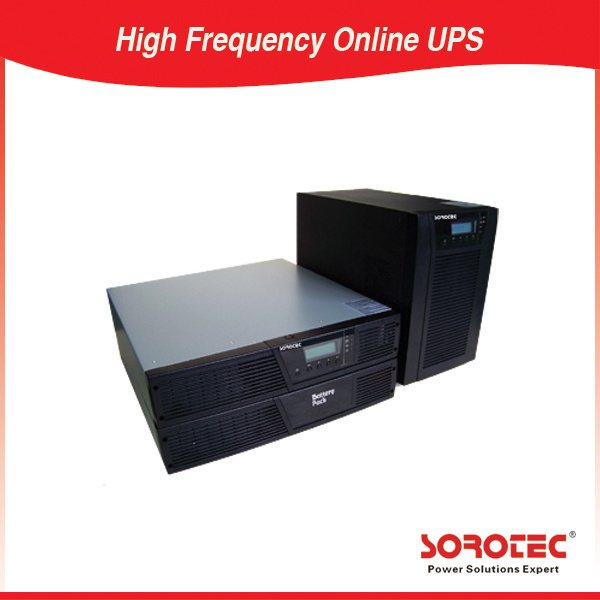

Electronics Power Supply Sinewave Online UPS with 100/110/120V

Prod Model:	HP9117C 700-3000VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	High Frequency Online UPS
Capacity:	0.7-3kVA
Nominal Voltage:	100/110/120/127VAC or 200/208/220/230/240VAC
Nominal Frequency:	50/60 Hz
Voltage Range:	60-138VAC or 115-276VAC
Frequency Range:	50Hz:(46~54Hz);60Hz:(56Hz~64Hz)
Current Crest Ratio:	3:1
Language:	English, French, German, Russian, Spanish
Power Factor:	>0.98
Phase:	Single Phase
Type:	Standby
Protection:	Overcurrent
Brand:	Sorotec

Product Description

Electronics Power Supply Sinewave Online UPS with 100/110/120V

Product Parameter:
1.Output power factor: 0.9

2.Product Rating: 1000 to 3000VA

3.Voltage: 100-120V or 220-240V

4.Frequency: 50/60Hz(auto-sensing)

5.Configuration: Rack mount or Tower

Key Features:

1. Protects against downtime, data loss and process interruption by providing continuous, clean power

2. Offers premium performance with a 0.9 power factor and >95 percent efficiency

3. Increases battery service life and system uptime with ABM battery charging technology

4. Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical system or processes

5. Provides installation flexibility with a choice of rack or tower designs, both conserving valuable space.

6. Enhanced monitoring and configuration capability through easily navigated multilingual graphical display

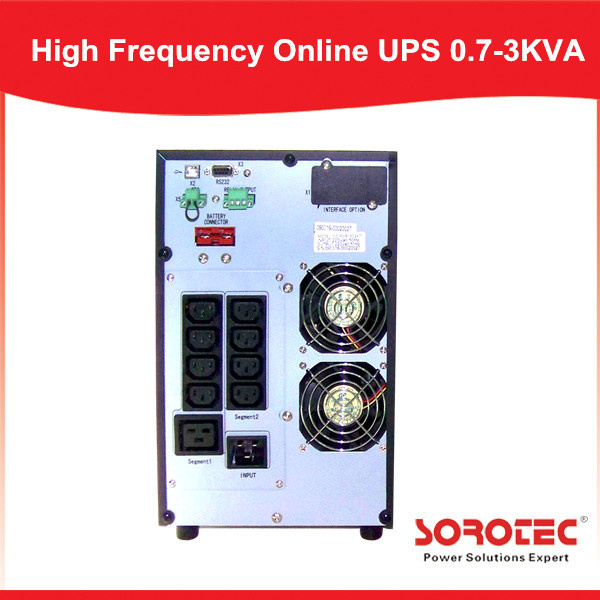

7. RS232, USB/ EPO(Remote Emergency Power -off) etc.

8. Optional language by LCD display(multilingual: English, Russian, German, French, Spanish)

Product Descriptions:

Model		HP9117C 0.7-3KVA
		0.7KT /0.7KR	0.7KT-XL /0.7KR-XL	1KT /1KR	1KT-XL /1KR-XL	1.5KT /1.5KR	1.5KT-XL /1.5KR-XL	2KT /2KR	2KT-XL /2KR-XL	3KT /3KR	3KT-XL /3KR-XL
Capacity		0.7KVA/0.63KW		1KVA/0.9KW		1.5KVA/1.35KW		2KVA/1.8KW		3KVA/2.7KW
Nominal Voltage		100/110/120/127VAC or 200/208/220/230/240VAC
Nominal Frequency		50/60 Hz
Input
Voltage Range		60-138VAC or 115-276VAC
Frequency Range		50HZ:(46~54HZ);60HZ:(56HZ~64HZ)
Power Factor		>0.98
Output
Voltage Precision		100/110/120/127VAC 2%) or 200/208/220/230/240VAC (±2%)
Frequency Precision		50Hz/60Hz±0.05Hz
Power Factor		0.9
Harmonic Distortion		Linear Load<3% Non-Linear Load<5%
Overload Capacity		100%~102% overload warning;102%~129% 12s; 130%~149% 2s; ≥150% 100ms
Current Crest Ratio		3:1
Transfer Time		0ms AC→DC (±)
Battery
DC Voltage		24VDC		36VDC		48VDC		96VDC		96VDC
Recharge Time		5 hours to 90%(it mean standard model which battery inside the UPS)
Charge Current		1A	4A/8A	1A	4A/8A	1A	4A/8A	1A	4A/8A	1A	4A/8A
Panel Display
LCD		UPS status, input/output voltage and frequency, battery voltage, capacity, load, temperature, history records
Language		English, French, German, Russian, Spanish
Communications
Communications Interface		Optional: SNMP card,AS400 card or the CMC provide software, EPO ,USB port
Working Environment
Temperature		0~40ºC
Relative Humidity		0~95% (Non-condensing)
Storage Temperature		-25ºC 55ºC
Elevation		<1500 m
Noise Level(1m )		<45dB						<50dB
Physics Characteristic
Weight (KG)	N.W	13   14	9   10	15     16	8.5     9	18    18.5	10    10.5	33   10.5	16.5  11.5	34 11.5	17  12.5
	G.W	15   16	11  13	17.5  17.5	11     11.5	20    20.5	12    12.5	35   12.5	18.5  13.5	36   13.5	19  14.5
Dimensions: ( Wx D x H )mm
Main unit(Tower)		158X355X250		158X385X250		158X433X250		220X410X345		220X410X345
Main unit(Rack mount)		482.6X450X89(2U)


Quality control:

1.Incoming Quality Assurance

2.Critical components inspection

3.Process Quality Assurance

4.Raw  material  Verification

5.First Article Inspection

6.Online IQC

7.Product testing

8.ICT testing

9.Product aging

10.Product high temperature aging

11.Final QA




APPLICATION OF OUR PRODUCT:
1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip

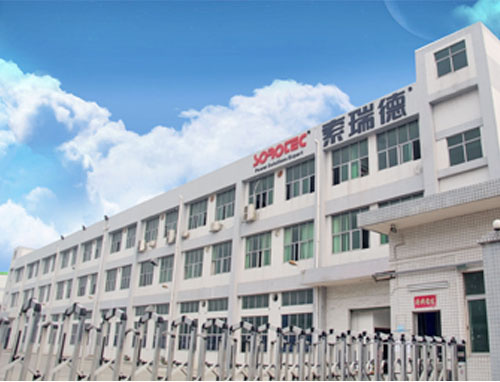

Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.


WHY CHOOSE US ?
1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
