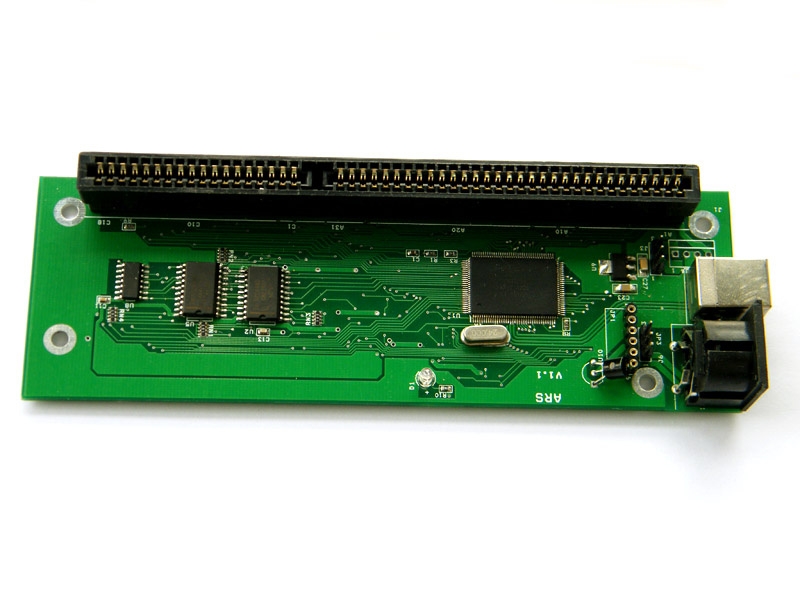

Name: Electronics Printed Circuit Board PCB Assembly PCBA
Brand: all-electronics-online.com
SKU: 831914505
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	US $ 0.1-5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Dielectric:	FR-4

Product Description

We are pcb factory in Shenzhen China since 2007.

We can offer:
1) 1-30 layer PCB, 1-2 layer aluminum pcb, and 1-10 layers of high frequency pcb.
2) Copper thickness could be from 0.5oz to 6 oz
3) We have 10 experienced engineer to deal with PCB file.
4) All pcbs are 100% tested
5) Special tech as impedance control, BGA, blind and buired holes making are available.

If you have any pcb to make, welcome to contact us. We'd love to offer you our best price.

Layer:	1-30 L
Max pcb size:	864 x 610 mm (34" x 24")
Min. pcb thickness:	0.2mm (2 layers) / 0.4mm (4 layers) / 0.9mm(8 layers) / 1.2mm (10 layers) / 1.3mm (12 layers) / 1.5mm (14 layers) / 1.7mm (16 layers) / 1.8mm / 2.0 mm (18 layers) / 2.2mm (20 layers) / 2.4mm ( 22 layers) / 2.6mm (24 layers)
Max. pcb thickness:	240mil(6mm)
Max. copper thickness:	10OZ
Min. line space and width for inner layer:	3mil(0.075mm) / 3mil(0.075mm)
Max. line space and width for outer layer	3mil(0.075mm) / 3mil(0.075mm)
Min. finished hole size:	6mil(0.15mm)
Max. Aspect ratio:	10:1
Min. via dia and Min. pad dia:	via: dia. 0.15mm / pad: dia. 0.4mm ; HDI <0.10mm via
Pcb thickness tolerance:	±10%(≥1.0mm);±0.1mm(≤1.0mm)
Finished hole tolerance (PTH):	±3mil(0.075mm), crimping hole tolerance: ±2mil(0.05mm)
Finished hole tolerance (NPTH):	±2mil(0.05mm)
Copper thickness on the hole wall:	mini 25um(1.0mil)
Hole deviation:	±2mil(0.05mm)
Outline tolerance:	±4mil(0.1mm)
Solder mask thickness:	3mil(0.08mm)
Insulation resistance	1 × 1012Ω
Thermal shock:	3 × 10Sec@288 ºC
Twist:	≤0.5%
Anti-Peeling strength:	1.4N / mm
Wearing degree of solder mask:	≥6H
inflame retarding:	94V - O
Impedance tolerance:	±5%
Min. solder mask opening:	0.05mm(2mil)
Min. solder mask covering:	0.05mm(2mil)
Min. solder mask bridge:	0.076mm(3mil)
Surface finishing	Gold plating, ENIG, OSP, HASL, Halegen free, Carbon, Peelable mask, gold finger, Immersion silver
Gold finger thickness	0.76um max ( 10u" max )
V-cut angle	30° 45° 60° ,tolerence +/- 5°
Min. V-cut board thickness	0.8mm
V-cut tolerance	±0.1mm
Outline:	Routing & Punching
Test voltage:	±0.1mm(4mil)
E-test voltage	250 ± 5 V

Shenzhen Upride Electronics Co., Ltd is a professional printed circuit board manufacturer in Shenzhen China since its establishment in the year of 2007. Our factory is located in Bao'An district of Shenzhen. At the beginning of our establishment, we mainly focused on PCB from 1-30 layers with special technical as BGA, blind & buried holes, HDI, high tg, high density impedance, aluminum and high frequency PCB. Our high frequency base materials are mainly rogers, taconic, F4B brand such as rogers 5880, rogers 4350B, rogers 4003C, taconic TLX series, RF-35 series etc. Our products are widely used in home compliance, automobile device, computer, power suppliers, telecommunications, lighting medical equipment etc. Through years of hardworking, we started to get involved in FPC and PCBA service since the year of 2010, and now we have professional engineer team with 10 rich experienced engineers which can offer design service of PCB, FPC and PCBA. We would like to offer one stop service to our customers all over the world with high quality, best price and prompt delivery.
