Eleq Split Core Transformer supplier Indonesia

Name: Eleq Split Core Transformer supplier Indonesia
Brand: all-electronics-online.com
SKU: 723463712
Availability: InStock
Rating: 4.6 (81 reviews)

Price:	US $ 10-100/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMCK185-10
Standards:	IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006
Accuracy Class:	0.5%, 1%
Range Of Primary Rated Current:	300-3000A
Range Of Rated Load:	≤25va
Rated Frequency:	50/ 60Hz
Rated Secondary Current:	5A or 1A
Safety Factor Rating:	(Fs) < 5
Aperture (mm):	Φ185
Weight (Kg):	4.5
Keyword:	Flex Core Split Core CT
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

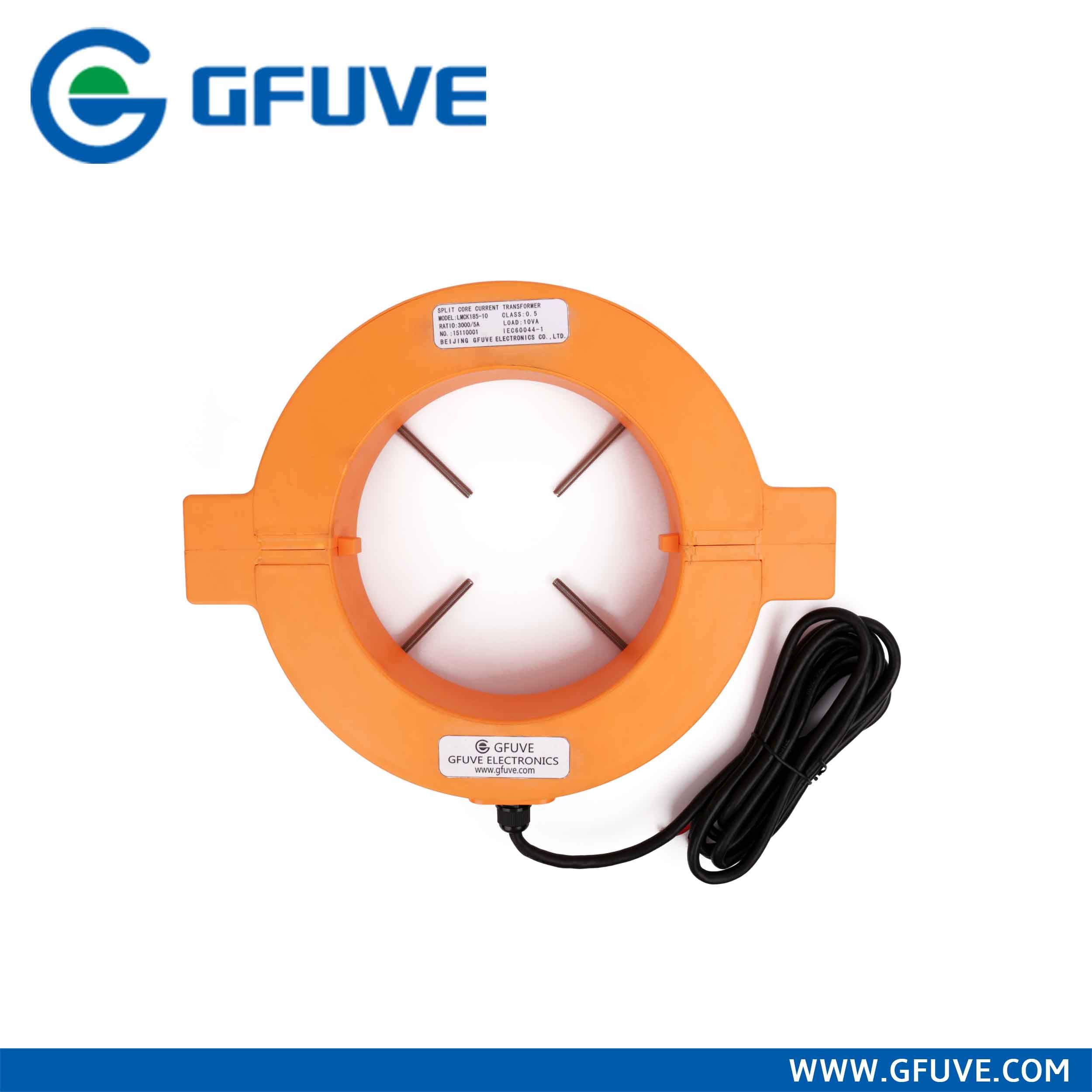

LMCK185-10 eleq split core transformer suplier indonesia

LMCK series current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is ﬂame retardance anti-moisture, stable performance, no maintenance.

No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

Selection guide

Model	Primary rated current	Rated load	Aperture (mm)	Description (mm)	Weight(kg)	Materia	Water-proof
LZCK-55	100-1200A	≤10VA	φ55	180×138×52	2	PC	IP65
LMCK185-10	300-3000A	≤25VA	φ185	350×283×55	4.5	PC	IP65
LZCK310-10	300-600A	≤10VA	φ50	φ50 x φ110 x 32	1	Resin	silicon case (option)
LZCK322-10	30-600A	≤10VA	φ50	φ50 x φ110 x 52	1.6	Resin	silicon case (option)
LZCK350-10	20-600A	≤25VA	φ50	φ50 x φ110 x 105	3.1	Resin	silicon case (option)
LZCG530-10	30-600A	≤20VA	φ45	φ45 x φ120 x 65	5	Resin	silicon case (option)

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
