Em 223 16di/ 16do 200 Series PLC (Programming Logic Controller) with Transistor

Name: Em 223 16di/ 16do 200 Series PLC (Programming Logic Controller) with Transistor
Brand: all-electronics-online.com
SKU: 694477935
Availability: InStock
Rating: 4.3 (41 reviews)

Price:	US $ 50-150/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UN 223-1BL22-0XA0
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Automatic Control
Certification:	CE

Product Description

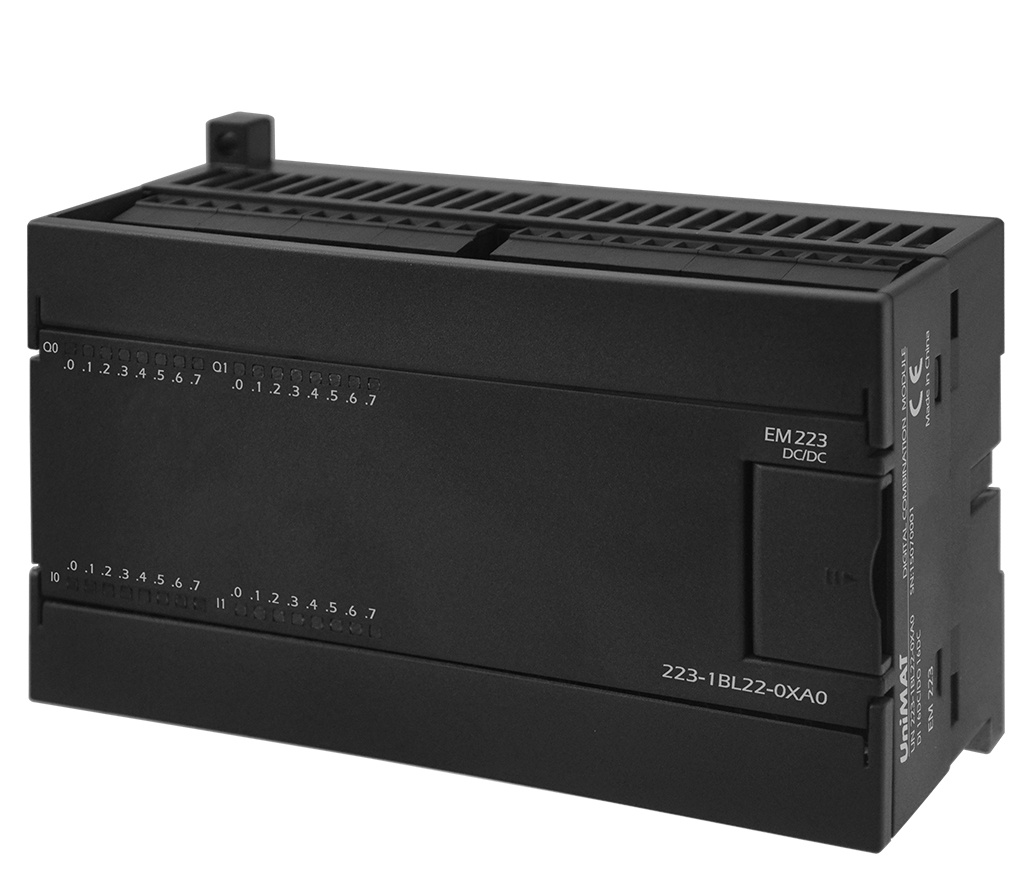

EM 223 16DI / 16DO 200 series Programming Logic Controller with transistor

1). EM223 16DI / 16 DO , 24V DC with transistor ;
2). Compatible with Siemens 6ES7223-1BL22-0XA0 ;
3). Digital Input and Output module ;
4). Could connect with Siemens 200 CPU ;
5). 3-year warranty ;

Model	EM223 16 inputs/outputs
Product Description	16DI, 24VDC/16DO, 24 VDC Optical isolation with high immunity.
From bus current consumption	140mA
Power loss	5.2W
Digital Input Specification
Number of digital inputs	16
Input voltage	24 VDC
Logic 0 signal	0~5 VDC
Logic 1 signal	15~30 VDC
Maximum Input Delay Time	4.5ms
Signal input type@	PNP/NPN
Optical isolation(Galvanic)	500 V AC for 1 minute
Cable Length(Shielded)	500m
Cable Length(unshielded)	300m
Digital Output Specification
Number of digital outputs	16
Output type	Transistor
Isolation	Optical coupler
Output voltage	24 VDC or 250V AC
Output voltage range	20.4~28.8V AC
Output Current	0.75A
Lamp load	5W
Lifetime contact mechanical	/
Lifetime contact mechanical (rated load voltage)	/
Cable Length(Shielded)	500m
Cable Length(unshielded)	150m
Dimensions(W x H x D)(mm)	137.5× 80× 62
Order Number	UN 223-1BL22-0XA0

History:

UniMAT Automation Technology Co., Ltd established in 2004.

With the philosophy "based on quality, morality, and be surpassing by heart with concentrated attention", we are now in the leading fleet of China Industrial Automation.

Business range:

We focus on the field of core control, create UniMAT brand, self-research and self-production PLC, HMI, servo driver, converter, industry specialized controllers and other automation products.

We also provide systematic comprehensive solutions for equipment production and system integration.

Company profile:

Our enterprise has good relationship with colleges and universities and builds research centers in Shenzhen and Wuhan.

35% of our employees are R&D engineers. All of these help our company win the title of "state-level high-tech enterprise" and "software enterprise".

Application:

Over the past few years, our products are widely used in the field of metallurgy,

Chemical engineering, environmental protection, renewable energy, electric vehicles, logistics etc.

We are dedicated ourselves to develop Chinese high-end equipment manufacturing.

Service:

We pay serious attention to the product quality, providing 3-year free quality warranty for PLC products and 18-month quality warranty for other products.

Sales:

At present, we have set up over 20 branches in Beijing, Shanghai, Guangzhou and other cities to form service site nationwide.

At the same time, our international business has expanded to more than 20 countries and districts,

And won good reputation widely.

Target:

Our mission is using technology to enhance human productivity,

And striving for being a global respected leading enterprise in industry automation field.
