Emergency Stop Push Button Switch

Name: Emergency Stop Push Button Switch
Brand: all-electronics-online.com
SKU: 693824882
Availability: InStock
Rating: 4.9 (52 reviews)

Price:	US $ 0.1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBY5-01TS, HBY5-11TS, HBY5-02TS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mounting Hole Size:	22mm
Rating Value:	10A/660V AC
Head Shape:	Round
Terminal Type:	Screw Terminal
Crust Material:	Plastic
Head Color:	Black
Contact Configuration:	1no/1nc/1no1nc/2nocnc
Operation Type:	Momentary/Latching
Protection Degree:	IP40, IP65
Degree:	90 Degree(2 Position), 45 Degree(3 Position)
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	Hban
Certification:	CE, RoHS, ISO9001
Type:	1no1nc, 2no2nc

Product Description

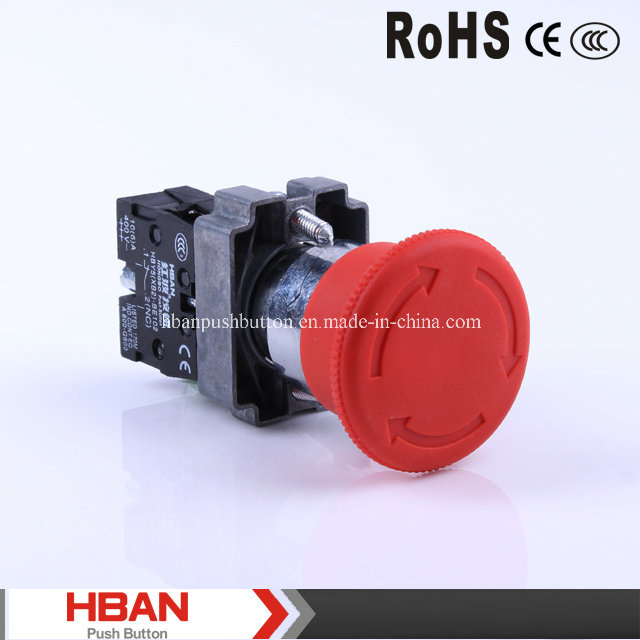

Red Plastic Mushroom Emergency stop switch for equipment

Item No: HBY5-01TS
HBY5-11TS
HBY5-02TS
HBY5-22TS
Mounting hole size: 22mm
Rating Value: 10A/600V AC
Contact Configuration: 1NC/2NC/1NO1NC/2NOCNC
Head shape: Round
Operation Type: Momentary/Latching
Terminal type: Screw terminal
IP Degree: IP40

Packing details:

We pack 10 pieces diameter 22mm selecot switches into 1 foam box to protect them. We supply 1 piece guarantee card with these switches. Then we packed this foam box into a kraft paper box, 25boxes will be packed into a carton.
About Us:

Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers,
Waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control,
Medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.

Tel: 0086-577-62708000 Fax: 0086-577-62708007

Item NO.		HBY5-01TS	HBY5-11TS
Front Head Shape		Round,Red,emergency stop,1NC	Round,Red,emergency stop,1NO1NC
Item NO.		HBY5-02TS	HBY5-22TS
Front Head Shape		Round,Red,emergency stop,2NO	Round,2NO2NC,emergency stop,Red
Terminal Type		Screw terminal
Switch Type		1NC/1NO1NC/2NO2NC
Switch Specification		5A/250VAC
Contact Resistance		≤50mΩ
Insulation Resistance		≥100 MΩ
Dielectric Strength		2000V,AC 50Hz,1 min
Operating Temperature		1000V,AC 50Hz,1 min
Shock Resistance		≥10g
Operating Temperature		-25°C ~ +55°C
Mechanical Life		1,000,000 times
Electric Life		>30,000 times
Operating Stroke		About 3 mm
Protection Degree		IP40
Material	Contact	Sliver ,Sliver Alloy
