Emergency Stop Pushbutton Switch, Mushroom, Xb2 Lay5 Switch

Name: Emergency Stop Pushbutton Switch, Mushroom, Xb2 Lay5 Switch
Brand: all-electronics-online.com
SKU: 729004855
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	XB2(LAY5)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green, Blue, Yellow, Red, White
Code:	Lay5
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	Normal Open

Product Description

push button switch

Specifications
1.widely use for electric equipment
2.with indicator lamp
3.Certified by CE,CCC,ROHS,UL,TUV......
4.plastic type

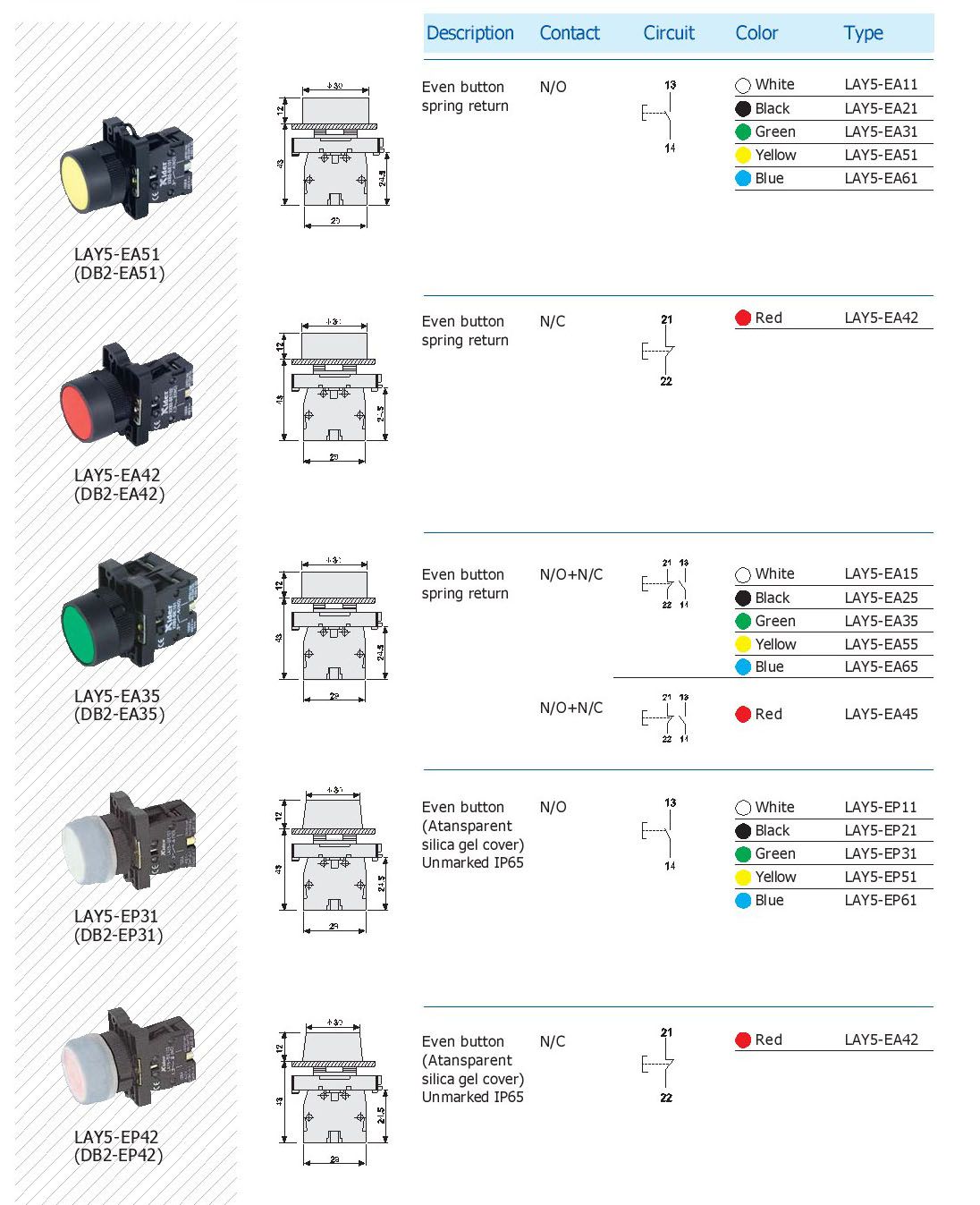

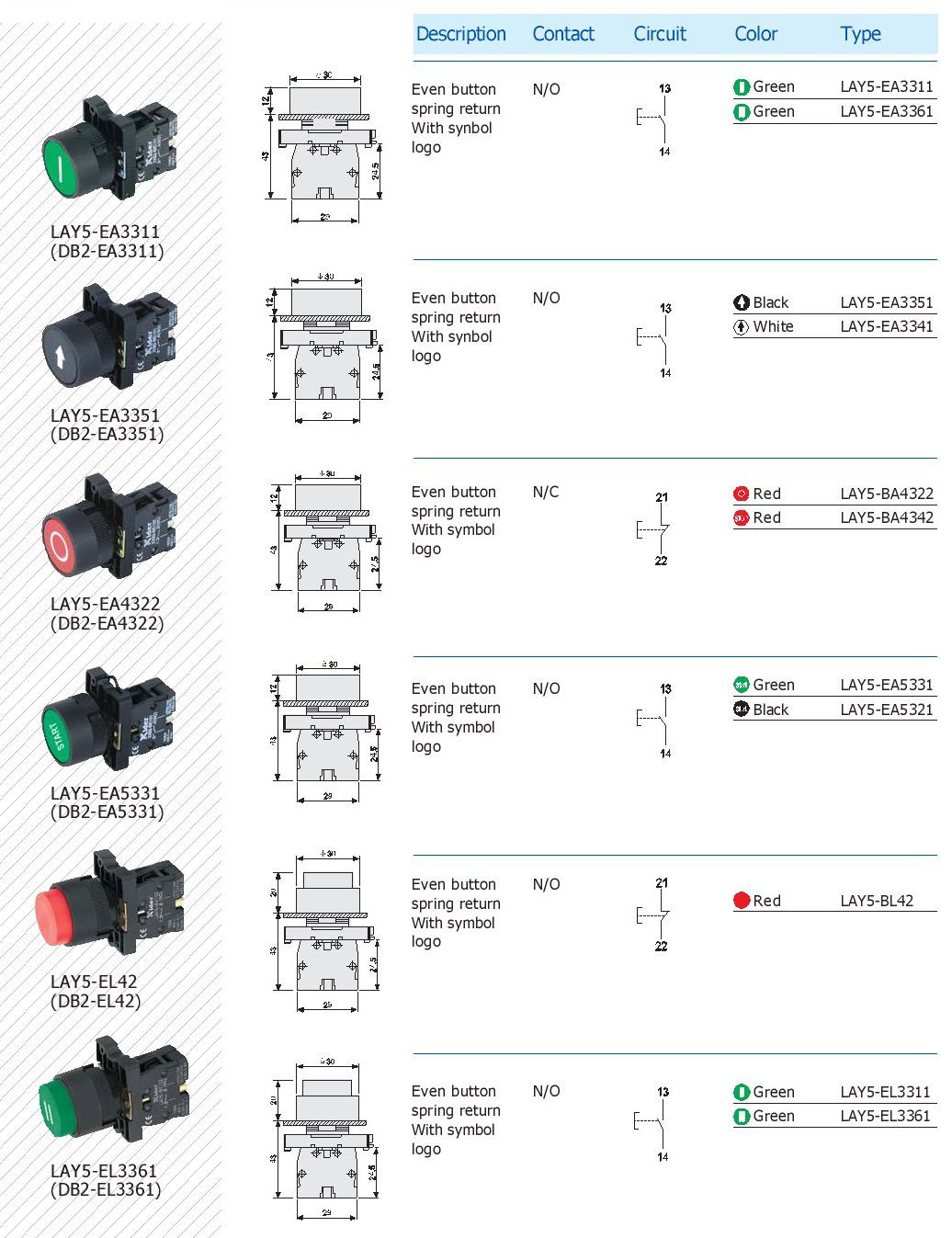

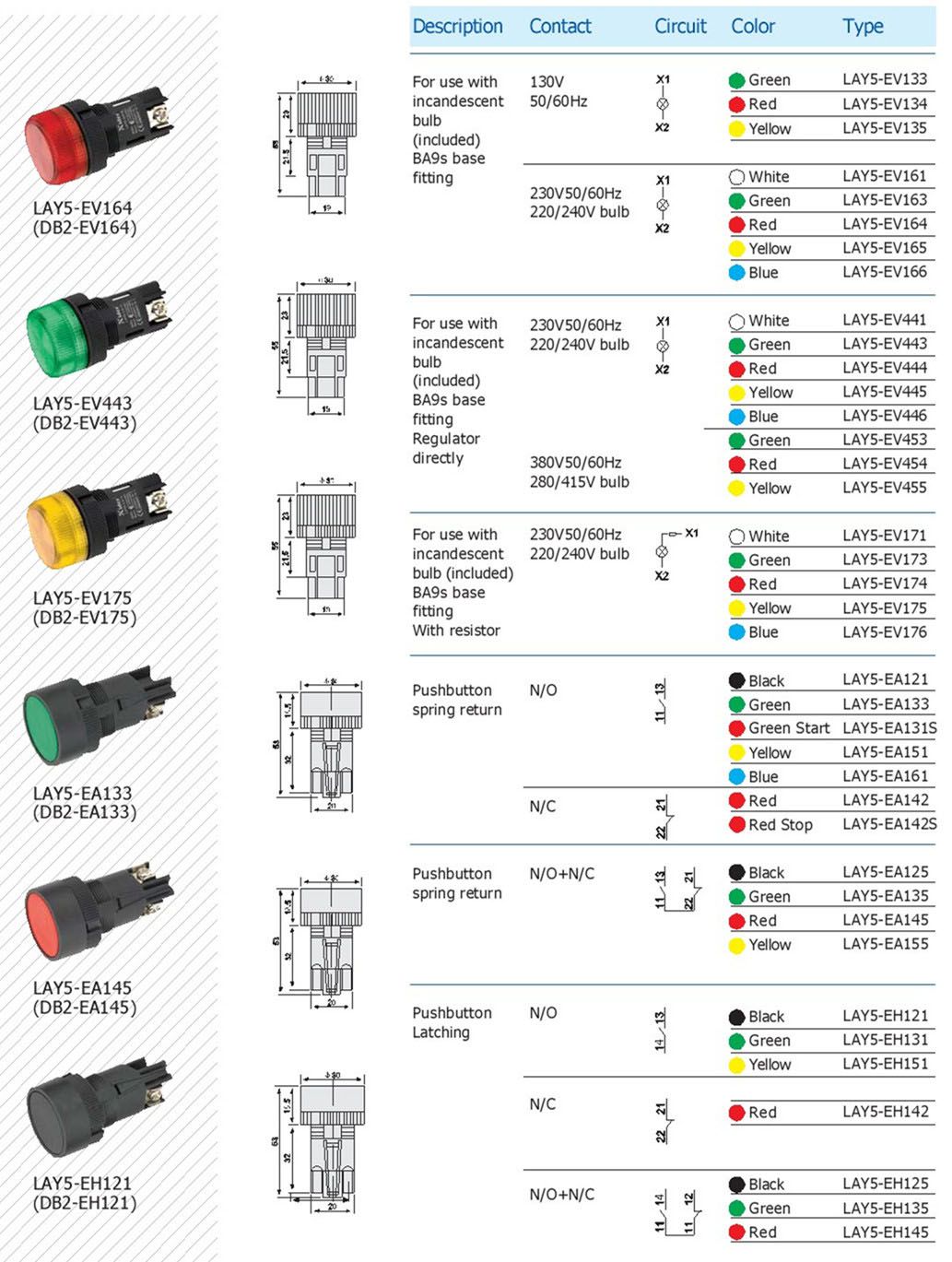

LAY5 push button switch

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltage below 400V,It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signals,emergency signals ,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all products are CE,ISO9001,ROHS and UL certifies.

work environment
1.Surrounding temperature:-25°C~+55°C;
2.Air relative humidity:≤85%.
3.It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h;
4.Pollution grade is ill,installation sort is 3,protection grade is up to IP65.
5.Altitude:≤2000m

Basic technical parameter of button			basic technical parameter of signal lamp
Rated insulation voltage	AC 600V(50Hz/60Hz)		Insulation resistance	≥500M Ω
Conventional heating current	10A		Contact resistance	≤25Min Ω
Insulation resistance	≥50 M Ω		Pf withstand voltage	AC 2.5KV/min
Contact resistance	≤25Min Ω		Voltage wave	±20%
Mechanical life	100*104 (pushbutton)	50*104 selector switch Key switches	Brightness	60cd/m2
Electrical life	500*104 (pushbutton)	25*104 selector switch Key switches	Continuous working life	10*104 h

Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
