Emerson 48V 3200W Rectifier Module R48-3200e High Efficiency

Prod Model:	R48-3200E
Output Voltage:	48VDC
Output Voltage Range:	-42 to -58 V DC
Output Current:	67A
Output Power1:	3200W
Output Type:	Single
Warranty:	1 Year
Output Power:	>500W
Input Voltage:	220V
Starting Mode:	Separate-excited Switching Power Supply
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC
Connection Mode:	Plug Into System
Voltage Regulating Mode:	Switch Power Supply
Brand:	Emerson

Product Description

Emerson 48V 3200W rectifier module R48-3200E high efficiency

Brand: Emerson
Model Name: R48-3200e
Output DC: 48Vdc 67A

Emerson R48-3200e Description:

The eSure™ R48-3200e rectifier converts standard AC supply voltages into stable nominal-48V DC voltage adjustable to the needs of the application. The R48-3200e is a constant power rectifier designed with the latest patented switchmode technology using DSP (Digital Signaling Processor) functionality for efficient operation.

For a higher load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.

Emerson R48-3200e Rectifier Features and Benefits:

1) Optimized depth-reduced footprint allows installation in short-depth racks and cabinets
2) DSP (Digital Signaling Processor)- means fewer components, optimized operation and active load sharing for increased reliability
3) Compliant with global standardsdelivers quality, performance and reliability no matter what the application or location demands
4) High efficiency, up to 92%-reduces power consumption for lower operating costs Hot pluggable-facilitates future extensions
5) Wide input voltage range-operates in the most demanding environments where input voltage changes
6) Wide temperature operating range (-40°C / -40 °F to +75°C / 167°F) -meets the harshest climatic

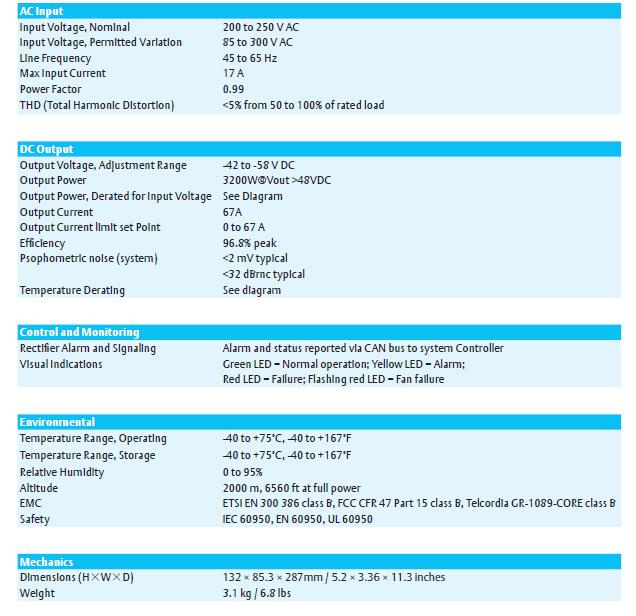

48V 3200W rectifier module Specification:





R48-3200e Weight: 3.1kg
Dimensions: 132 x 85.3 x 287mm

R48-3200E
Emerson 48V 3200W rectifier module R48-3200E high efficiency
