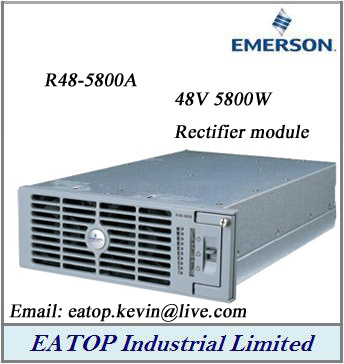

Emerson R48-5800A 48V 5800W Rectifier Module

Prod Model:	R48-5800A
Output Voltage:	48VDC
Output Voltage Range:	-42 to -58 V DC
Output Current:	120A
Output Power1:	5800W
Output Type:	Single
Warranty:	1 Year
Output Power:	>500W
Input Voltage:	220V
Starting Mode:	Separate-excited Switching Power Supply
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC
Connection Mode:	Plug Into System
Voltage Regulating Mode:	Switch Power Supply
Brand:	Emerson

Product Description

Emerson R48-5800A 48V 5800W rectifier module

Brand: Emerson
Model Name: R48-5800A
Output DC: 48Vdc 120A 5800W

Emerson R48-5800A Description:

The R48-5800A rectifier converts 380~480 Vac 3-phase AC supply voltages into stable nominal -48 VDC voltage adjustable to the needs of the application. The R48-5800 is a constant power rectifier designed with the latest patented switch-mode technology using DSP (Digital Signal Processor) functionality for efficient operation. For a larger load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.

Emerson R48-5800A Rectifier Features and Benefits:

1) Optimized size for best cabinet rack space utilization
2)DSP (Digital Signaling Processor) means fewer components, optimized operation and active load sharing for increased reliability
3)Compliant with global standards delivers quality, performance and reliability no matter what the application or location demands
4) High efficiency, up to 93% reduces power consumption for lower operating costs
5) Hot pluggable facilitates future extensions
6) Wide input voltage range operates in the most demanding environments where input voltage changes
7) Wide temperature operating range (-40°C / -40°F to +65°C / 149°F) - meets the harshest climatic environment requirements

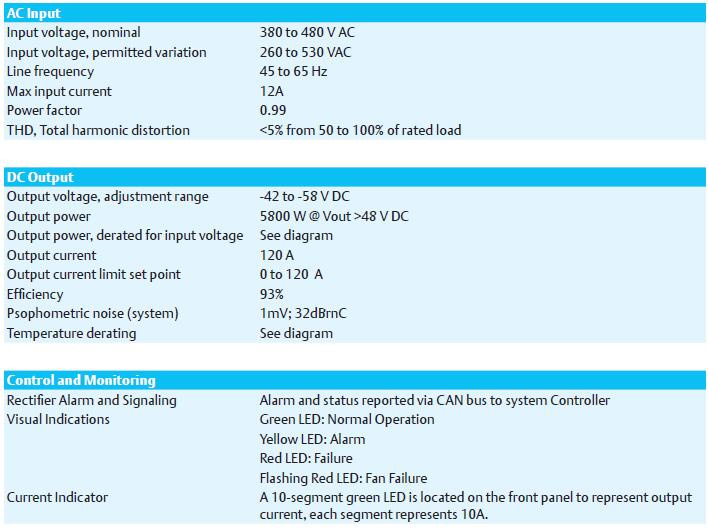

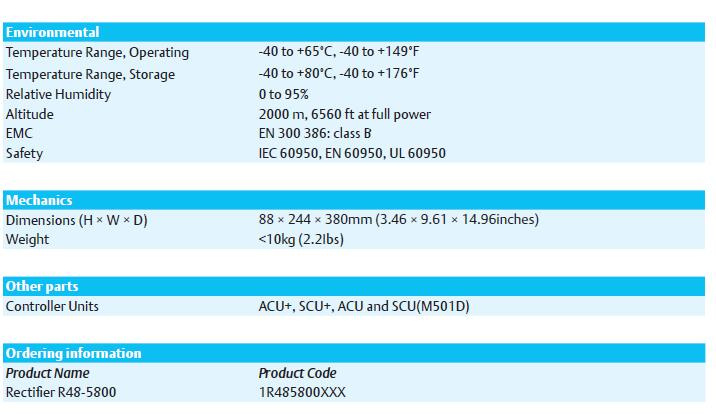

48V 5800W rectifier module Specification:




R48-5800A Weight: 10kg
Dimensions: 88 x 244 x 380 mm

R48-5800A
Emerson R48-5800A 48V 5800W rectifier module
