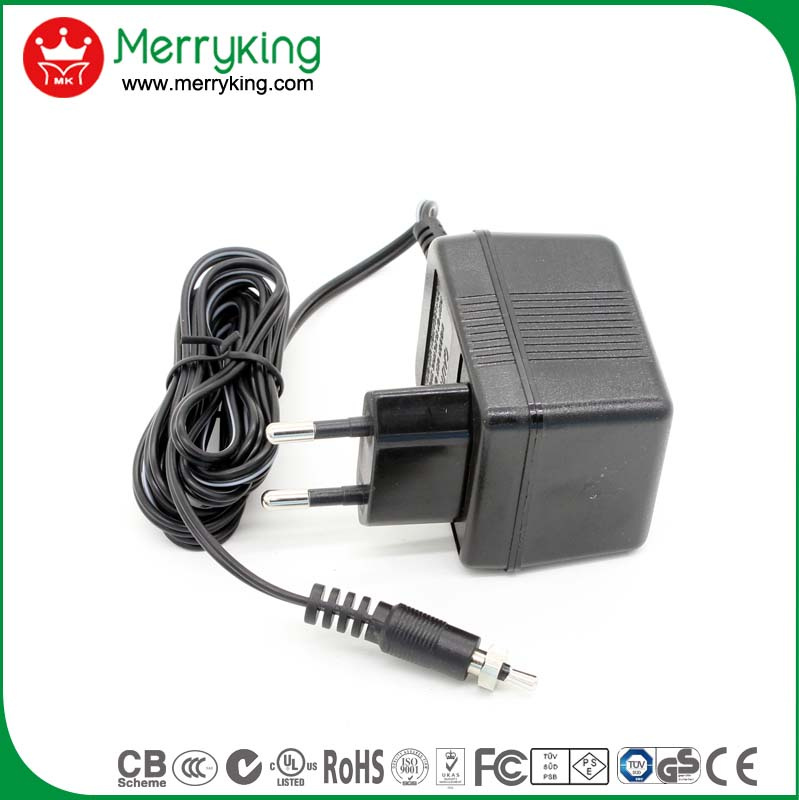

EMI EMC Test Report 7V 1A Linear AC DC Adapter

Prod Model:	MKA-0701000
Warranty:	3 Years
Other Output:	6VAC 2000mA
Connector:	Can Be Changed for Your Requirement
DC Cable:	AWG 20 L=1.8m
Certificaiton:	UL/cUL
Protection:	Ocp/Ovp/Otp/SCP
Efficiency (USA):	DOE VI, Cec VI
Input Voltage:	100~240V 50/60Hz
Certificates:	UL/cUL GS Ce SAA FCC PSE RoHS
Product Name:	7V 1A Linear Power
Usage:	Display
Output Type:	AC or DC
Connection:	Plug In
Certification:	FCC
Power Source:	No
Bluetooth Standard:	No
Brand:	Merryking

Product Description

EMI EMC Test Report 7V 1A linear ac dc adapter




Specification:




Model		MKS-0701000
AC Input	Voltage	100-240V AC
	Input current	0.3A/230V AC
	Frequency	47-63 Hz
	Efficiency	85% typical
DC Output	Voltage	3-12V
	Current	0-1000mA
	Rated Power	12W Max
	Ripple&noise	50mvp-p
	Setup rise hold up time	500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load
Protection	Over Load	120%Max, hiccup mode auto recovery after fault condition is removed
	Short Circuit	Auto recovery
Environment	Store Temperature	-20-85°C
	Wokring Temperature	0--50°C
	Operating Humidity	20%-80%RH
Certifications	CE	EN 60950-1:2006; EN60065-6-3:2001; EN 55022:2006+A1
	UL	UL 60950-1 ;CSA C22.2 No. 60950-1-07
	SAA	AS/NZS 60950.1:2011 & AS/NZS 3112:2011
	PSE	J60950-1(H22) and J55022(H22)
others	Product dimension	44*38*33mm
	DC connector size	5.5x2.1, 5.5x2.5. 3.5x1.35 or others
	Cable length	1.5M or others

Reliability:

        1.12W series external wall-mount Linear Adapter ,6V2000mA Linear power supply, class II, LPS, Universal input.

        2.Customized designs are available.

        3.100% full load burning test,40°C, 4 hours each part of this series can be sold separately.

        4.Leakage current: 0.25mA, maximum at 264V AC.

        5.Withstanding voltage: 3.3kV, 1 minute, 5mA (maximum), between primary and secondary.

        6.Smart device surge protection ,OVP ,OCP ,SCP.

        7.Efficiency: Conform to Level VI (CEC/ERP/MEPS).

        8.Brand new components,High accuracy of output voltage.


Features:
        1.High Quality Competitive Price
        2.High-reliability
        3.High-efficiency consumption
        4.Light and portable ,convenient to carry , easy to use
        5.With fuse, short-circuit protection
        6.Environmently friendly, energy-saving, complying with the safe certification standard
        7.Double insulated circuit board designed to protect your valuable gadgets from short circui


Packaging & Shipping

 Shipping  Details:

  1.  By air:  Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to    choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will   be charged if your destination is remote area.

   2.  By sea:  Shipments will be operated under FOB conditions.

Our Services
1.We will send samples to your confirmation.
2.We welcome customers to check mass goods before delivery
3.You can ask refund goods in 30 days after you get goods,and all of the cost we will afford if the reason is ours,What's more we will give you the new products as soon as possible


MERRYKING advantage:
Aging test, many manufactures test for only one hour so that it can save time. But for our company, we will test four hours in order to make sure the quality of the product and protect the user's safety.
High quality materials,To be honest, we will provide the high quality materials with reasonable prices. We believe that MERRYKING will be assured good power supply in the same industry.
Best quality service,Three is a professional sales team and technical team in our company. Our staffs can provide the best service for you and answer your products' questions in the particular time.


FAQ
1 :What are the main products in your company?
       Our main products include switching power supply, power adapters, lithium battery chargers .

2 :What are your products have been certified?
       Our products have assed UL,CUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS and PSE certification. In other to make the customers understand our products qualities clearly. We will provide the related certifications as the customer requirements.

3:Can you give me more details about the price of your products?

       We think our prices are very reasonable. If you purchase the quantity of product more enough, we will give you discount.

4: Would you please kindly tell us the below details for suggesting you the suitable adapter?
       1) What's the input please? eg:100-240VAC, 50/60Hz
       2)What's the output, please? eg: 7V DC 1A

5:How to choose suitable power adapter ?

       1) If your product working current is 1A ,we suggest you to use 12v 1.5A model ,so the adapter can keep good working status and long life ,and the working temperature is very low ,the 12v 1.5A adapter's price is nearby with 7v 1A .

       2) If your product is belong to medical device ,the quality standard should be IEC 60601 ,if your product is belong to IT device ,the quality should be IEC 60950
