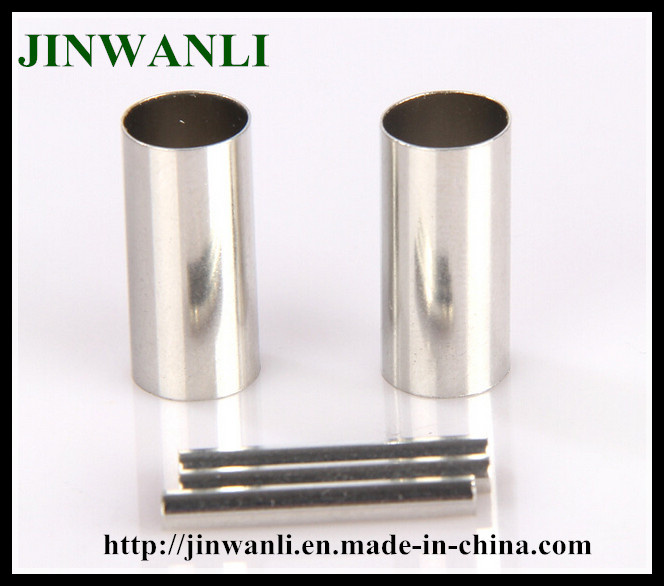

En Non-Insulated Cord End Naked Terminals

Name: En Non-Insulated Cord End Naked Terminals
Brand: all-electronics-online.com
SKU: 764428295
Availability: InStock
Rating: 5 (135 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Jwl

Product Description

Specifications

We are professionally produce high quality insulated cord end terminal with more than 10 years global marketing experience.

Application: Used for welding PC board on one end, another end is inserted the power cord terminal or tixed in power, naked switchgear, it prompts the power cord joint firmly, safety, prevent open and simple process, easy installation and maintenace, ect...

EN series non-insulated parallel tube terminal
1.Certifications:CE,SGS,ISO9001:2008
2.material:copper or brass
3.Plating:tin
4.sleeve: pvc or nylon
5.more than 80% of the products are exported abroad

Margin temperature:105 Ui=300V Material:Copper
ITEMNO	Dimension (mm)				Cable size (mm2)
	L	D	C	W	A.W.G	mm²
EN0506	6.0	1.3	1.0	2.1	#22	0.5
EN7506	6.0	1.5	1.2	2.5	#20	0.75
EN876	6.0	1.7	1.4	2.7	#18	1.0
EN1010	10.0
EN1507	7.0	2.0	1.7	3.5	#16	1.5
EN1510	10.0
EN2507	7.0	2.5	2.2	2.5	#14	2.5
EN2512	12.0
EN4009	9.0	3.2	2.8	4.0	#12	4.0
EN4012	12.0
EN6010	10.0	3.9	3.5	4.8	#10	6.0
EN6012	12.0
EN6015	15.0
EN10-12	12.0	4.9	4.5	5.8	#7	10.0
EN10-15	15.0
EN10-18	18.0
EN16-12	12.0	6.2	5.8	7.5	#5	16.0
EN16-15	15.0
EN16-18	18.0
EN25-16	16.0	7.9	7.5	9.2	#4	25.0
EN25-22	22.0
EN35-16	16.0	8.7	8.3	10	#2	35.0
EN35-25	25.0
EN50-20	20.0	10.9	10.3	12.4	#1	50.0

Cable size 18AWG 1.0mm2 EN crewel metal tube naked terminal

Product description

Type	non- Insulated cord end Terminals
Material	Purple copper,Full size with high quality products
Plating	Tin
Working Temp	-40 to +105 ° C
brand	xulong
packing	as customer's request
Cable Range	A. W.G.:22-16 (0.5-1.5mm ² ),16-14(1.5-2.5mm ² ), B. 14-12(2.5-4mm ² ), 12-10 (4-6mm ² )
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	D.also can order in alibaba or aliexpress
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Supply Ability	3 x 20 feet containers per week
Packag e Details	A.Common Pack age :100pcs + polybag + label + inner box+ export carton
	B.Customized Pack age :OEM Label,Inner Box,
Origin Place	Zhejiang, China
Test Report	REACH, ROHS .CE,UL
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
