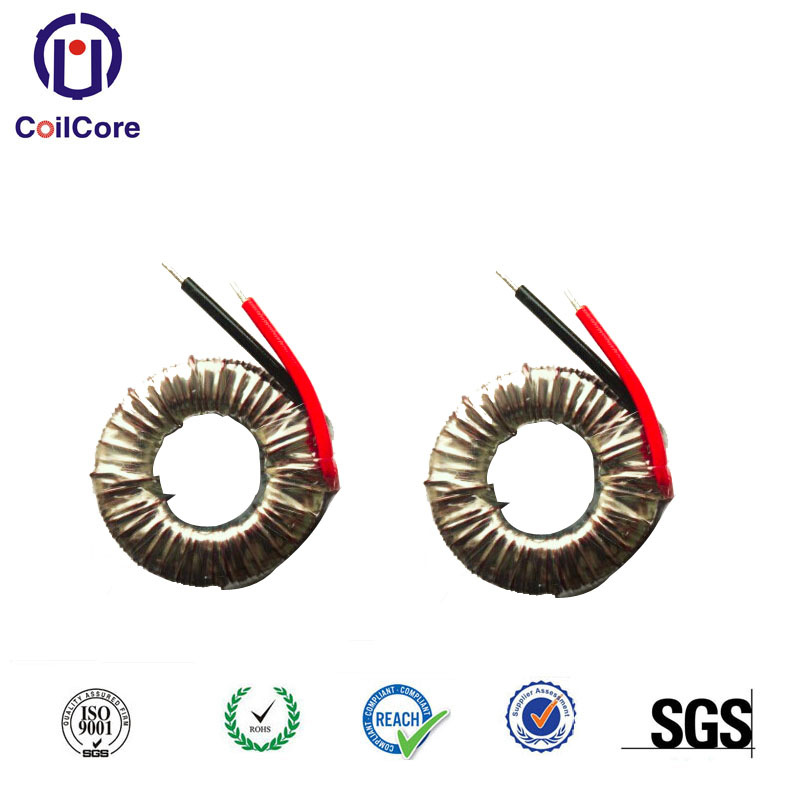

Encapsulated Toroid and Power Transformer for Welding Machine

Name: Encapsulated Toroid and Power Transformer for Welding Machine
Brand: all-electronics-online.com
SKU: 781260365
Availability: InStock
Rating: 4.5 (125 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

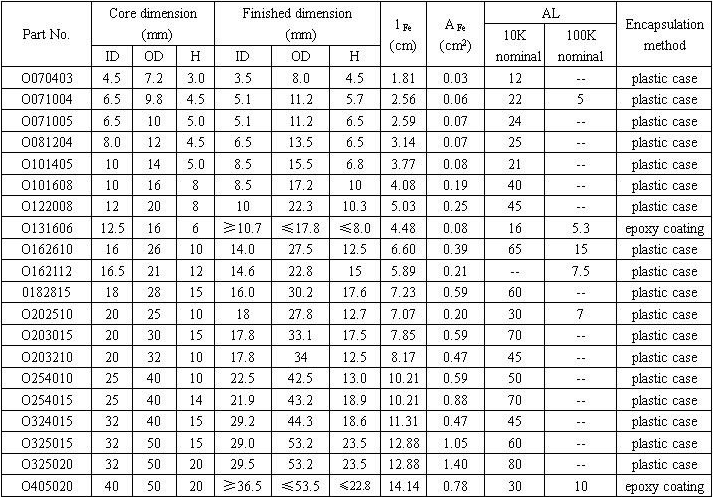

Prod Model:	CORE AM ID/ODXH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

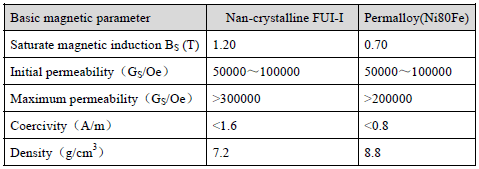

High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single and Three

Product Description

Specification:

1. Universal Purpose small size, easy to install
2. Reliable Safety Approvals
3. Low profile & Low Weight
4. Low No-load Losses
5. Low Mechanical Hum
6. Low Stray Magnetic Field
7. Low Operating Temperature
8. High Efficiency
9. Good Static Insulation between Primary and Secondary
10. Punily Leakage Current
11. Easy to mount
12. Competitive price and customerized

Standard:
a. 115/230 Primary &120/240 Primary Toroida32l Transforme30r Series 100VA~3000VA
b. Primary 100V, 115V, 120V, 230V, 240V / 50 Hz
c. Secondary Customized Power range: 20VA to 10KVA
d. Standard UL506, UL1411, EN61558, EN6060-1, UL2601, UL544
e. Insulation Class B, Class F, Class H

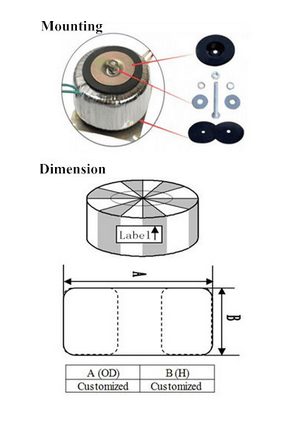

f. Mounting One Metal plate, Two Rubber pads, One set of bolt & nut with washer, centre-potting
g.130 Deg C Thermal Cutoff and Thermal Switch from 105 Deg C to 150 Deg C can be fitted when required.
h. All data are subject to modification without prior notice

i. Certificates: CE and RoHS.

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
