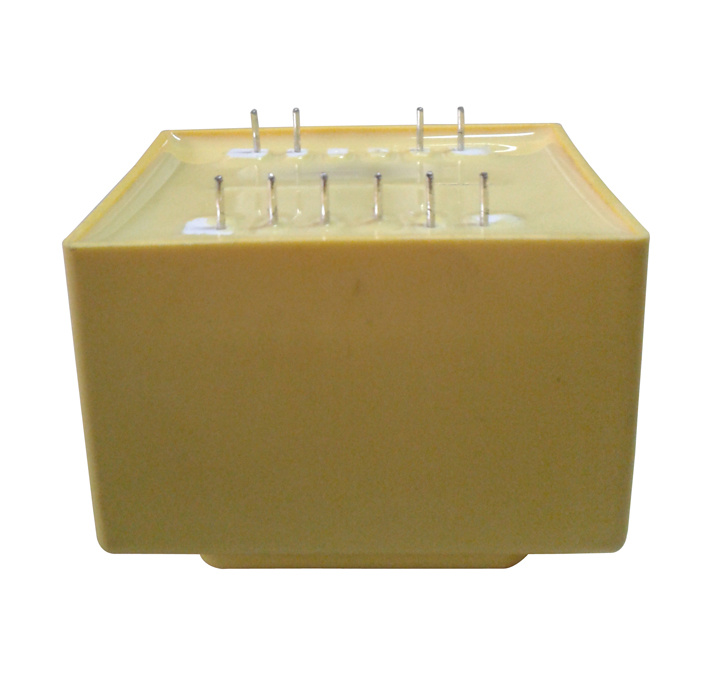

Encapsulated Transformer for Plower Supply (EI38-7.5 2.5VA)

Prod Model:	EI38-7.5 2.5VA
Type:	Voltage Transformer
Phase:	Single

Product Description

EI38-7.5 SERIES-2.5VA
PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V
RD3808000	RD3808100	4.5	556	FIG.1
RD3808001	RD3808101	6	417	FIG.1
RD3808002	RD3808102	7.5	333	FIG.1
RD3808003	RD3808103	9	278	FIG.1
RD3808004	RD3808104	12	208	FIG.1
RD3808005	RD3808105	15	167	FIG.1
RD3808006	RD3808106	18	139	FIG.1
RD3808007	RD3808107	24	104	FIG.1
RD3808050	RD3808150	2 X 4.5	2 X 278	FIG.2
RD3808051	RD3808151	2 X 6	2 X 208	FIG.2
RD3808052	RD3808152	2 X 7.5	2 X 167	FIG.2
RD3808053	RD3808153	2 X 9	2 X 139	FIG.2
RD3808054	RD3808154	2 X 12	2 X 104	FIG.2
RD3808055	RD3808155	2 X 15	2 X 83	FIG.2
RD3808056	RD3808156	2 X 18	2 X 69	FIG.2
RD3808057	RD3808157	2 X 24	2 X 52	FIG.2

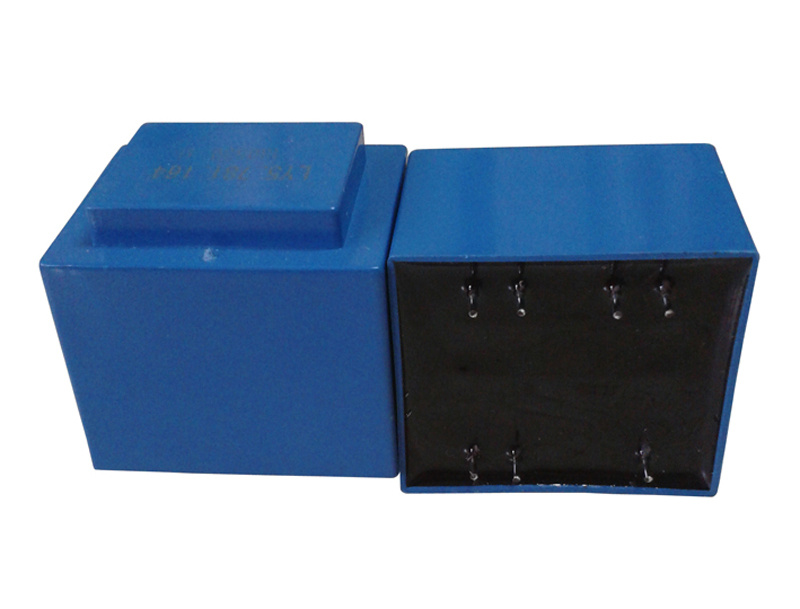

Encapsulated Transformer EI38 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70ºC max)
Insulation class-class B(130ºC )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 4.5VA
2. Non short-circuit-proof at temperature class ta 70ºC /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
