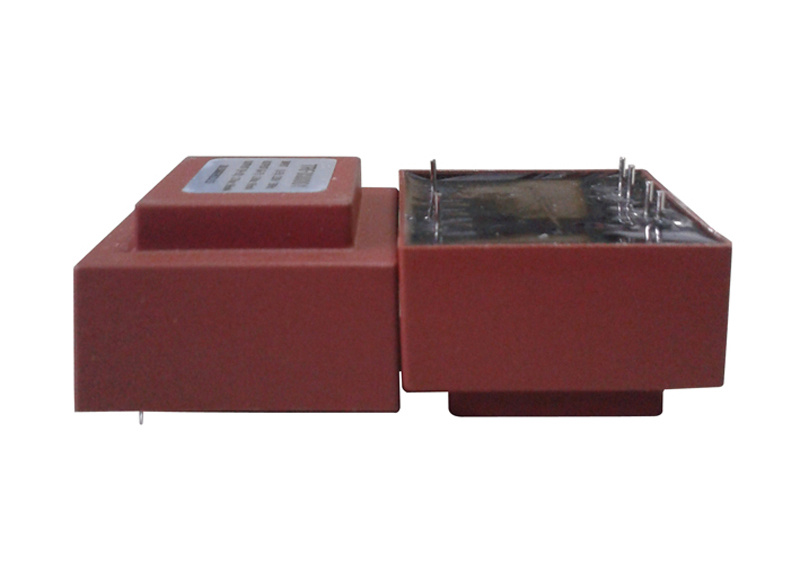

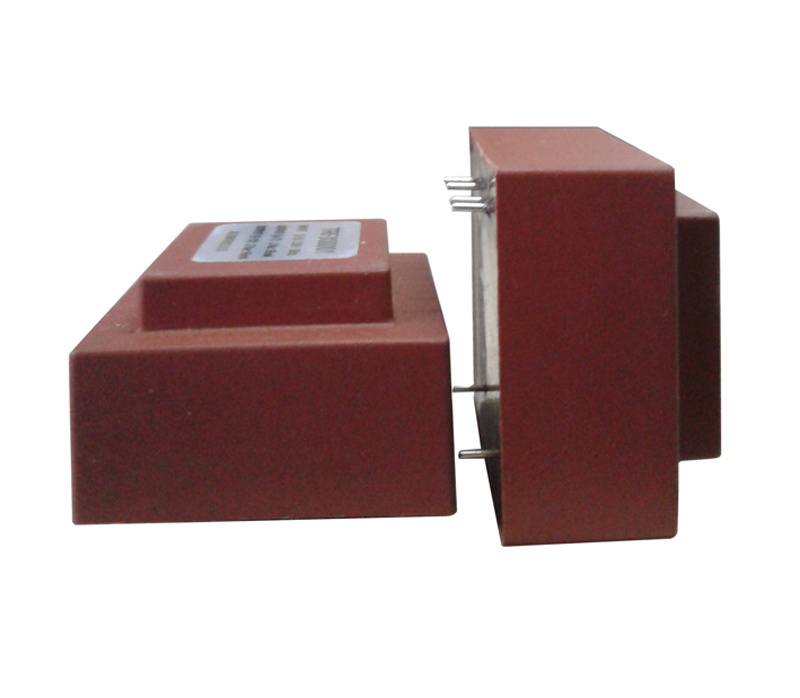

Encapsulated Transformer for Power Supply (EI54-18 13VA)

Prod Model:	EI5418 13VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
Phase:	Single
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer

Product Description

EI54-18 SERIES-13.0VA

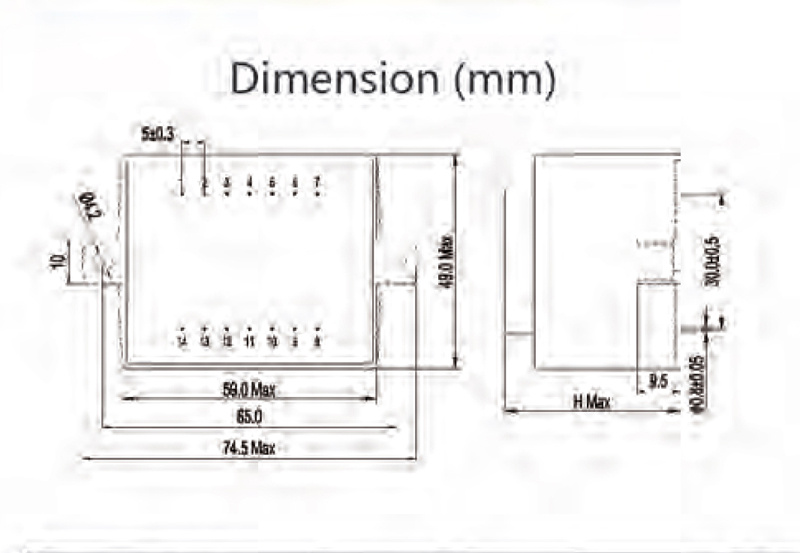

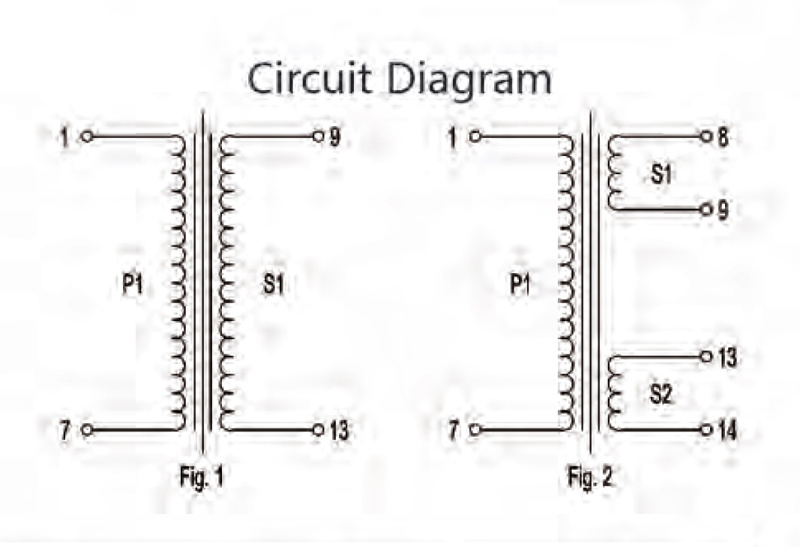

PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V
RD5418000	RD5418100	4.5	2889	FIG.1
RD5418001	RD5418101	6	2167	FIG.1
RD5418002	RD5418102	7.5	1733	FIG.1
RD5418003	RD5418103	9	1444	FIG.1
RD5418004	RD5418104	12	1083	FIG.1
RD5418005	RD5418105	15	867	FIG.1
RD5418006	RD5418106	18	722	FIG.1
RD5418007	RD5418107	24	542	FIG.1
RD5418050	RD5418150	2 X 4.5	2 X 1444	FIG.2
RD5418051	RD5418151	2 X 6	2 X 1083	FIG.2
RD5418052	RD5418152	2 X 7.5	2 X 867	FIG.2
RD5418053	RD5418153	2 X 9	2 X 722	FIG.2
RD5418054	RD5418154	2 X 12	2 X 542	FIG.2
RD5418055	RD5418155	2 X 15	2 X 433	FIG.2
RD5418056	RD5418156	2 X 18	2 X 361	FIG.2
RD5418057	RD5418157	2 X 24	2 X 271	FIG.2

Encapsulated Transformer EI54 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 16.0VA
2. Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B
3. Excellent temperature fluctuation resistance properties
4. High electrical safety and long service-life features
5. High voltage resistance
6. Self-extinguishing cast housing and sealing material
7. Certified item quality tested
