| Prod Model: |
MKS-1502000AU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
3 Years |
| Efficiency: |
VI |
| Power: |
36W Switching Power Supply |
| Name: |
DC Adaptor Switching Power Supply |
| Usage: |
Electric Products |
| Connection: |
Plug In |
| Certification: |
FCC |
| Type: |
OEM/Ode |
| Brand: |
Merryking |
Product Description

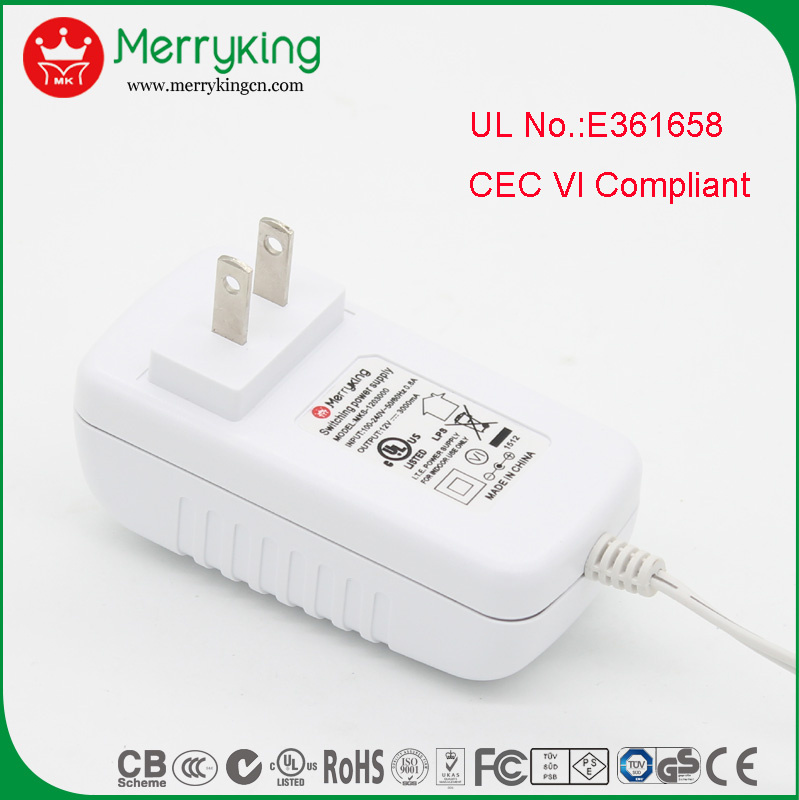

Energy Efficiency Level VI dc adapter 100% have to aging test :
Switching power supply feature:
1>.: Warrnty : 3 years
2>.: Energy Efficiency Level VI
3>.: 100% ac adapter have to aging test
4>.: Output Voltages from 5.0V to 12.0V
5>.: Class II Construction
6>.: OEM & ODM Service available
2. 36W dc adaptor specifications:
12V 3A:
| Input Voltage : | 100-240VAC 50/60Hz 0.8A |
| Output Voltage : | 12VDC 3000mA |
| DC plug : | 5.5*2.1/2.5*10mm ( other size avaliable ) |
| DC Wire : | 2468 18AWG/L=1.5m (OEM avaliable) |
| AC plug : | US Wall Mount type ( EU/UK or Other plug avaliable ) |
| Color: | White (others avaliable ) |
6V 5A:
| Input Voltage : | 100-240VAC 50/60Hz 0.5A |
| Output Voltage : | 6VDC 5000mA |
| DC plug : | 5.5*2.1/2.5*10mm ( other size avaliable ) |
| DC Wire : | 2468 18AWG/L=1.5m (OEM avaliable) |
| AC plug : | US Wall Mount type ( EU/UK or Other plug avaliable ) |
| Color: | White (others avaliable ) |
18V 2A:
| Input Voltage : | 100-240VAC 50/60Hz 0.5A |
| Output Voltage : | 18VDC 2000mA |
| DC plug : | 5.5*2.1/2.5*10mm ( other size avaliable ) |
| DC Wire : | 2468 18AWG/L=1.5m (OEM avaliable) |
| AC plug : | US Wall Mount type ( EU/UK or Other plug avaliable ) |
| Color: | White (others avaliable ) |
15V 2A:
| Input Voltage : | 100-240VAC 50/60Hz 0.5A |
| Output Voltage : | 15VDC 2000mA |
| DC plug : | 5.5*2.1/2.5*10mm ( other size avaliable ) |
| DC Wire : | 2468 18AWG/L=1.5m (OEM avaliable) |
| AC plug : | US Wall Mount type ( EU/UK or Other plug avaliable ) |
| Color: | White (others avaliable ) |
That's our normal specifications. if you need more info welcome send us email to get the
description of Specifications.
3. dc adaptor Safety Approvals.
Phenomenon:
| Standard: |
| EMS |
EN 55022:2010 EN 55024:2010 EN 61000-3-2 EN 61000-3-3
|
| CE |
EN 60950 EN 61558
|
| GS |
EN 60950
|
| CB |
EN 60950
|
| UL/cUL |
UL 60950 (UL No.: E361658)
|
| FCC |
47 CFR FCC Part 15 Subpart B:2013 ANSI C63.4:2009
|
| PSE: |
J60950 J55022 J55023 J55024
|
| SAA |
AS/NZS 60950
|
| IRAM |
IEC60950 / IRAM 2063:2009
|
Any other certificate avalibale.
Send me email to get the Text report & Certifications when you needed.
4. Aging Testing
Merryking's dc adaptor have to aging test more than 2 Hours .
5. dc adapotr shipping details:
1>.: By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company.
It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.
2>.: By sea
Shipments will be operated under FOB conditions.
6. Merryking services:
1>.: We will send the dc adaptor to be samples for your confirmation.
2>.: We welcome customers to check mass switching power supply before delivery
3>.: You can ask refund ac adaptors in 30 days after you get them, and all of the cost we will afford if the reason is ours,What's more we will give you the new products as soon as possible MERRYKING advantage:
Aging test
Aging test, many manufactures test for only one hour so that it can save time. But for our company, we will test four hours in order to make sure the quality of the product and protect the user's safety.
High quality materials
To be honest, we will provide the high quality materials with reasonable prices. We believe that MERRYKING will be assured good power supply in the same industry.
Best quality service
Three is a professional sales team and technical team in our company. Our staffs can provide the best service for you and answer your products' questions in the particular time.
7. About Merryking
MERRYKING as a famous manufacturer of dc adaptor switching pweor supply and transformer has exported power supply products over 14years since we established.
We are focusing on power supplydesigning and manufacturing in Shenzhen China. We established scientific, intact and efficient quality management system, which extends from product designing, raw material control, on-spot production management to after-sale services with constant, stable and reliable quality assurance.
ISO9001:2008 system is fully implemented in our all managements. Our products have passed most of safety approvals in the world including UL, cUL, FCC, PSE, GS, CE, SAA, CCC, C-tick, CB, etc.
