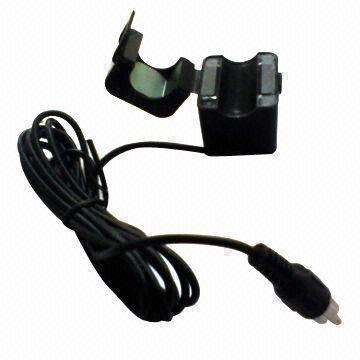

Energy Monitor Current Sensor Split Core with RCA Plug

Energy Monitor Current Sensor Split Core with RCA Plug
Price: US $ 4/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: XH-SCT-T16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Xh-Sct-T16
Ratio: 100AMP/1.7V
Wire Leads: 2 Meters with RCA Plug
Materials: UL
Application: Lighting
Type: Current Transformer
Phase: Single

Product Description

Energy Monitor Split Core Sensor with Plug Features:
Small size, low cost
High secondary turns
Secure locking hinge

Specifications:
Maximum continuous primary current 120A
Secondary turns: 3000
Wire leads: 22# AWG
Frequency: 50/60Hz
DC resistance: 460ohms @ 20degree Celsius

Applications:
Portable instruments
Sub-metering
Monitor motor loads

ModelInput(A)Max currnet(A)Output
XH-SCT-T160.2-100AAC120AAC0-30mArms/0.333VAC
/0-3 VAC

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
