| Prod Model: |
AVR |
| Capacity: |
100kVA to 2500kVA |
| Input Voltage: |
380V/400V / Customized |
| Output Voltage: |
Output Voltage |
| Voltage Regulation Accuracy: |
1%~5% (Settable) |
| Response Time: |
<0.5s |
| Effiency: |
> 98% |
| Waveform Distortions: |
<3% |
| Ambient Temperature: |
-10 to 40 |
| Noise: |
<65dB |
| Altitude: |
<1000m |
Product Description
Good Quality Competitive Price Energy-Saving Alternator Automatic Voltage Regulator
INTRODUCTION

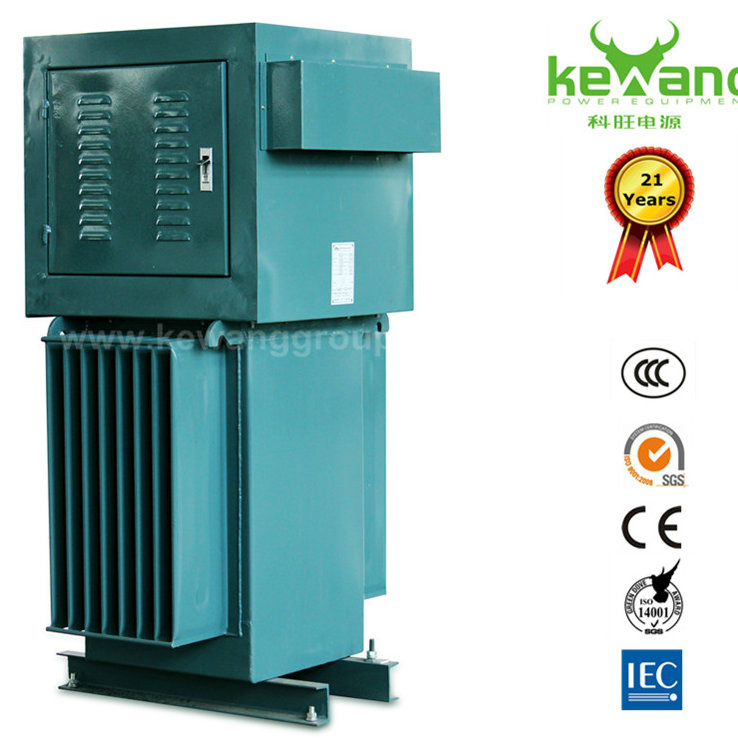

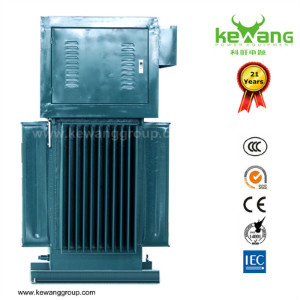

RLS series voltage regulator was designed by advanced technology and digital control system to stabilize the output voltage within specific range. The oil immersed voltage stabilizer has the functions of phase failure, phase loss, over voltage and overcurrent protections; also the circuit has the functions of voltage regulation, no mechanical wearing, no spark, no interference and low failure rate. In addition, the voltage regulator has the advantage of high impact resistance, super strong instantaneous overload capacity and long service life. The capacity is from 100KVA to 2500KVA.
TECHNICAL PARAMETERS
| Capacity Range | 100~2500kVA | Frequency | 50HZ | Resistance Power | 2000V/60S < 20mA |
| Input Voltage | 380V/400V
±15 % ±20 % ± 30 % | Response Time | < 0.5s | Insulation Resistance | > 5MΩ |
| Output Voltage | 380V/400V | Efficiency | > 98 % | Ambient Temperature | -10ºC~ +40ºC |
| Voltage Regulation Accuracy | 1%~5 %
(Settable) | Waveform Distortions | < 3 % | Relative Humidity | < 95% |
| Temperature Rise | ≤55ºC | Noise | < 65dB | Altitude | < 1000m |
SPECIFICATIONS
| Model | Capacity
(kVA) | Number
of phase | Output
voltage(V) | Rated
current(A) | Frequency
(Hz) | Size (mm)
(L* W *H) | Weight
(kg) |
|
| RLS-100 | 100 | 3 | 380V/400V
±1%~±5%
Settable | 152 | 50Hz
60Hz | 880*630*1560 | 420 |
| RLS-150 | 150 | 228 | 1100*860*1750 | 580 |
| RLS-200 | 200 | 304 | 1100*940*1750 | 690 |
| RLS-250 | 250 | 380 | 1100*1020*1750 | 760 |
| RLS-300 | 300 | 456 | 1170*930*1900 | 1200 |
| RLS-400 | 400 | 608 | 1170*1010*1900 | 1450 |
| RLS-500 | 500 | 760 | 1170*1090*1900 | 1550 |
| RLS-600 | 600 | 912 | 1170*1170*1900 | 1700 |
| RLS-800 | 800 | 1215 | 1400*1250*2180 | 2100 |
| RLS-1000 | 1000 | 1519 | 1400*1400*2180 | 2400 |
| RLS-1250 | 1250 | 1899 | 1630*1630*2400 | 3600 |
| RLS-1600 | 1600 | 2431 | 1790*1790*2400 | 3800 |
| RLS-2000 | 2000 | 3039 | 2020*1800*2400 | 4300 |
| RLS-2500 | 2500 | 3800 | 2100*2000*2400 | 4600 |
WE ARE LOOKING FOR AGENRTS!!!

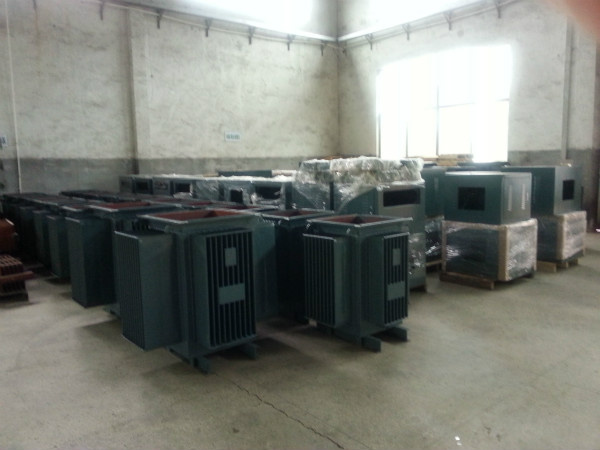

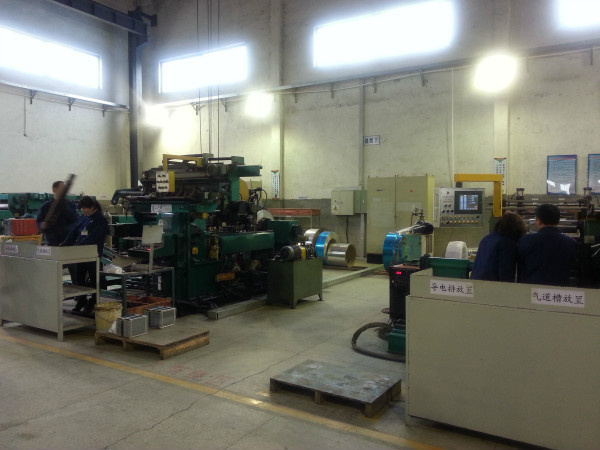

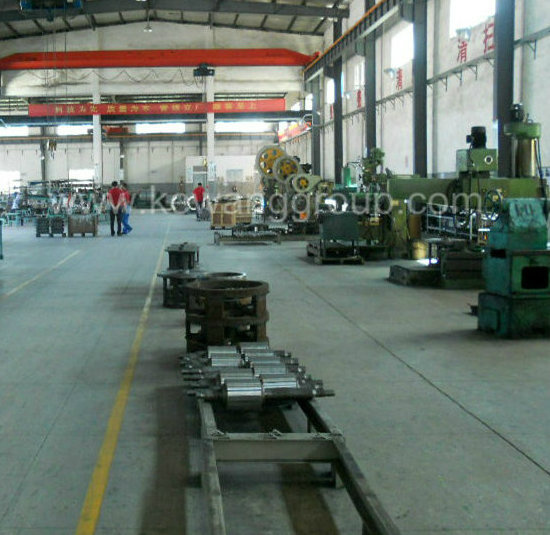

Headquartered in High-Tech Industrial Development Zone with 50.000 square meters
Factory area :130000 square meters ; Monthly Capacity : 6000 pcs
Our products ranges from 5KVA to 2500KVA
(Voltage regulators / stabilizers, gensets, tranformers,UPS etc)
Emerson and Foxconn are among our customers
NOTE:
1. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95%
(some series of them reaches 95%), please don't let them work overload!
2. Please make sure that all the electric wires are connected correctly
according to the electric diagram!
MAIN FEATURES
--Auto/Manual operation and manual regulation functions.
--LED display for input voltage, output voltage, output current.
--Digital MCU is controlling output voltage. Voltage precision is adjustable.
--Contactless carbon brush, High Reliability and strong resistance ability to
overload.
--Stepless voltage regulation to stabilize output voltage.
--Good adaptability to variant loads and ambient.
APPLICATION
COMMERCIAL:
Highrise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL:
Industrial automation, production lines, CNC, factory robotics, heavy load
machinery, precision machinery.
MEDICAL:
Xray, CT scanner, MRI system, Radiation therapy machine, other medical
imaging equipments.
TELECOM:
Data exchange center, Mobile base stations, control centers and transmission
relay stations.Our Services1.Quick response in before sales period help you got order
2.Excellent service in production time let you know each step we made
3.Reliable quality solve your aftersale headache
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
