| Prod Model: |
MSI Series |
| Item Name: |
Solar Inverter Power Supply |
| Output Current: |
2.5A to 305A |
| Power Range: |
0.4kw-250kw |
| PS: |
Variable Torque |
| GS: |
Constant Torque |
| Voltage Range: |
2t;3 Phase Output |
| Advantage: |
Reliable;Safety;Good Compatibility |
| Inverter Capacity: |
1.5;1.5kw |
| Output Frequency: |
0.00-400.00Hz |
| Type: |
DC/AC Inverter |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
| Function: |
Solar Inverter |
| Link Of Transformation: |
DC-AC |
Product Description
Energy Saving DC AC MSI Solar Inverter For PV Pump
1.Product Introduction:
Position in environmental-friendly and economical PV market.The product is applicable to PV pump system,replace water storage with electric storage and needs no battery modules.The direct current generated by solar modules is input to the inverter and then converted into the alternating current to drive various pumps directly .Additonally,the output frequency is adjustable in real time according to sunlight intensity changes.
Across the world,we face huge scarcity of power supply for our agriculture lands,rural areas and even at cities,which results in loss of efficient use of nature resources,human energy and money.Our farmers have to work during night as they don't get power supply from Grid during day time,also the power quality is very poor.The solar power is the solution of all these problems,but it should be cost effective also.Presently what solution we are having in market are not applicable to traditionally used AC introduction motors directly & DC motor based solution are accounting to huge initial cost as well as maintenace cost.
Moving ahead to next generation in combination of solar power and MSI technology Machtric Pressents its specical MSI for running AC introduction motor pumps during day time with direct DC from solar array,without and battery backup which results in minimum losses and maximum efficiency.
2. Advantage and Function(1) With no water alarm, timing to restart functions .When the pool have not water, the solar will stop, and then it will restart after interval set the time, if the pool have water , it will continues to work for water, if find the pool have not water again, the solar inverter will not running,it will waiting for the set time interval, and then running again , so continuous detection.
(2)When the pool is full, the solar inverter automatic stop, and it will show it in
solar inverter`s panel.
(3)Reliable: Solar inverter power supply are seldom used in the moving parts,
the work is reliable
(4) Safety : No other public nuisance.Don't have any solid, liquid and gas harmful
substances, absolutely environmental protection.
(5) Easy installation and maintenance, suitable for unattended, etc
(6)Good compatibility, Solar power generation can be used with other energy, also can according to the need to make the solar system easily expanded
(7)Standardization degree is high, but by the component series parallel to meet the needs of different power and versatility
(8)Everywhere have all solar, wide application range

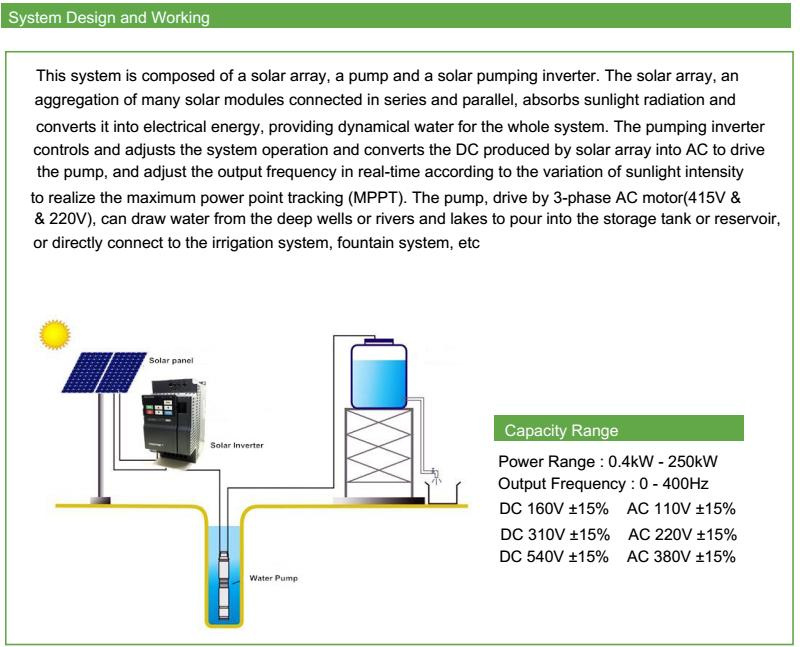

3.System Designing and Working:

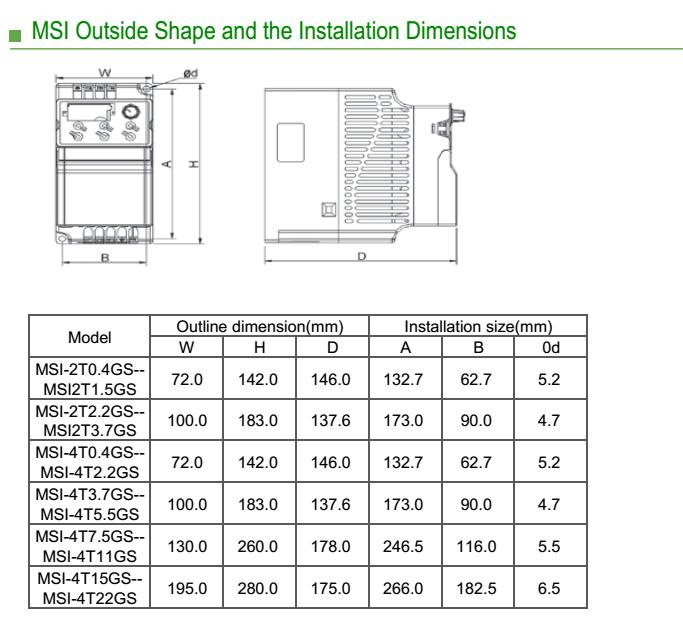

4.MSI Outside shape and the installation Dimension:

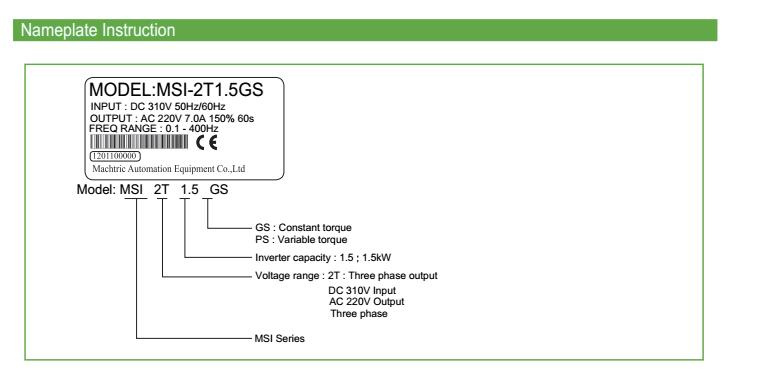

5.Nameplate Introduction:

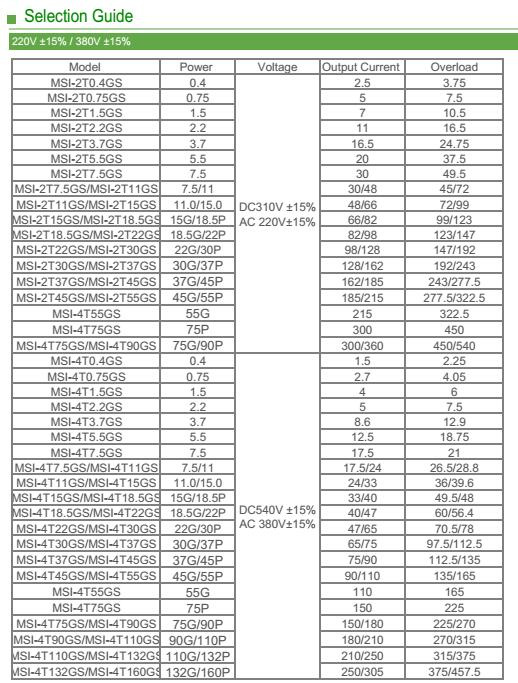

6.Selection Guide:

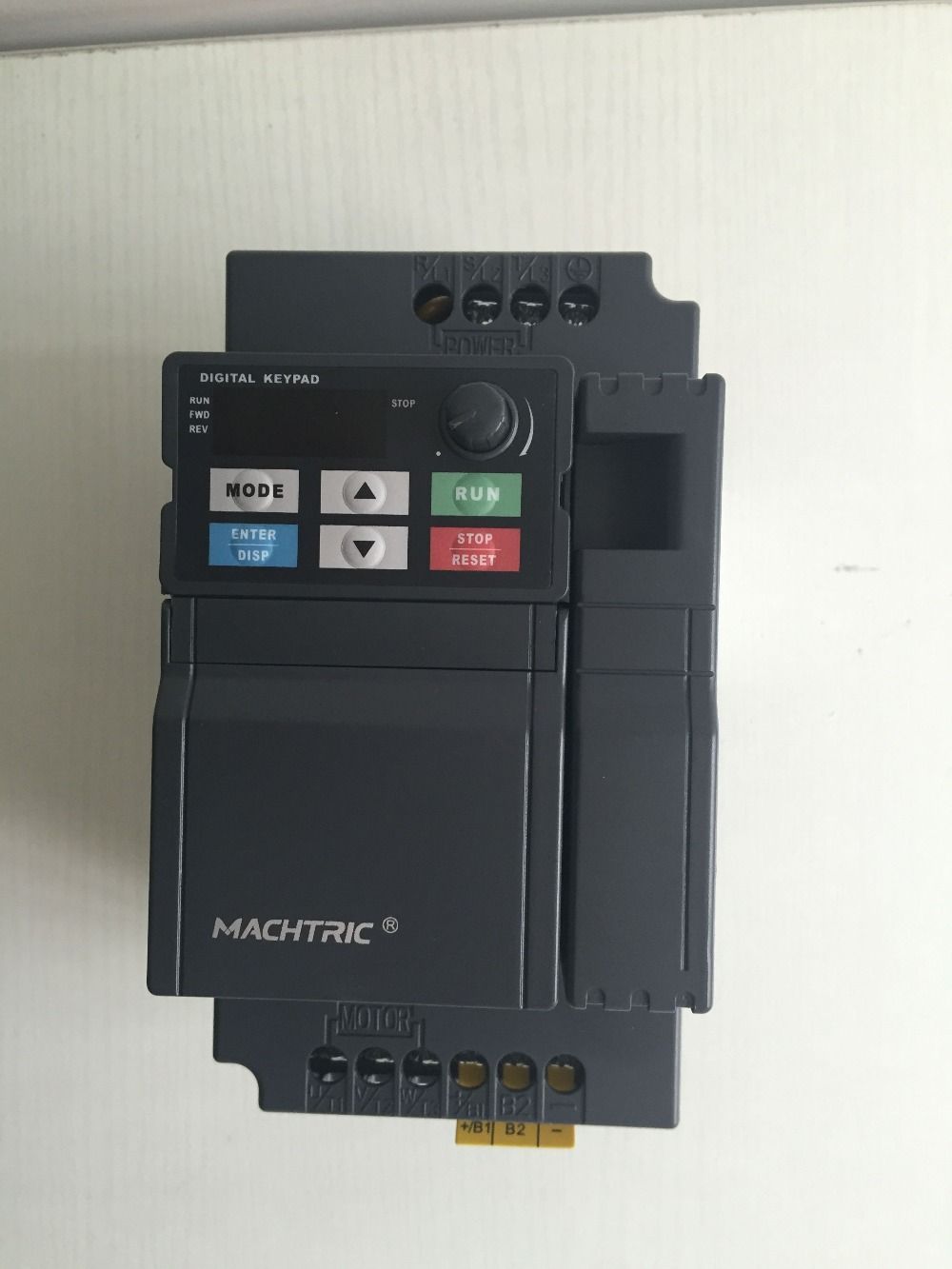

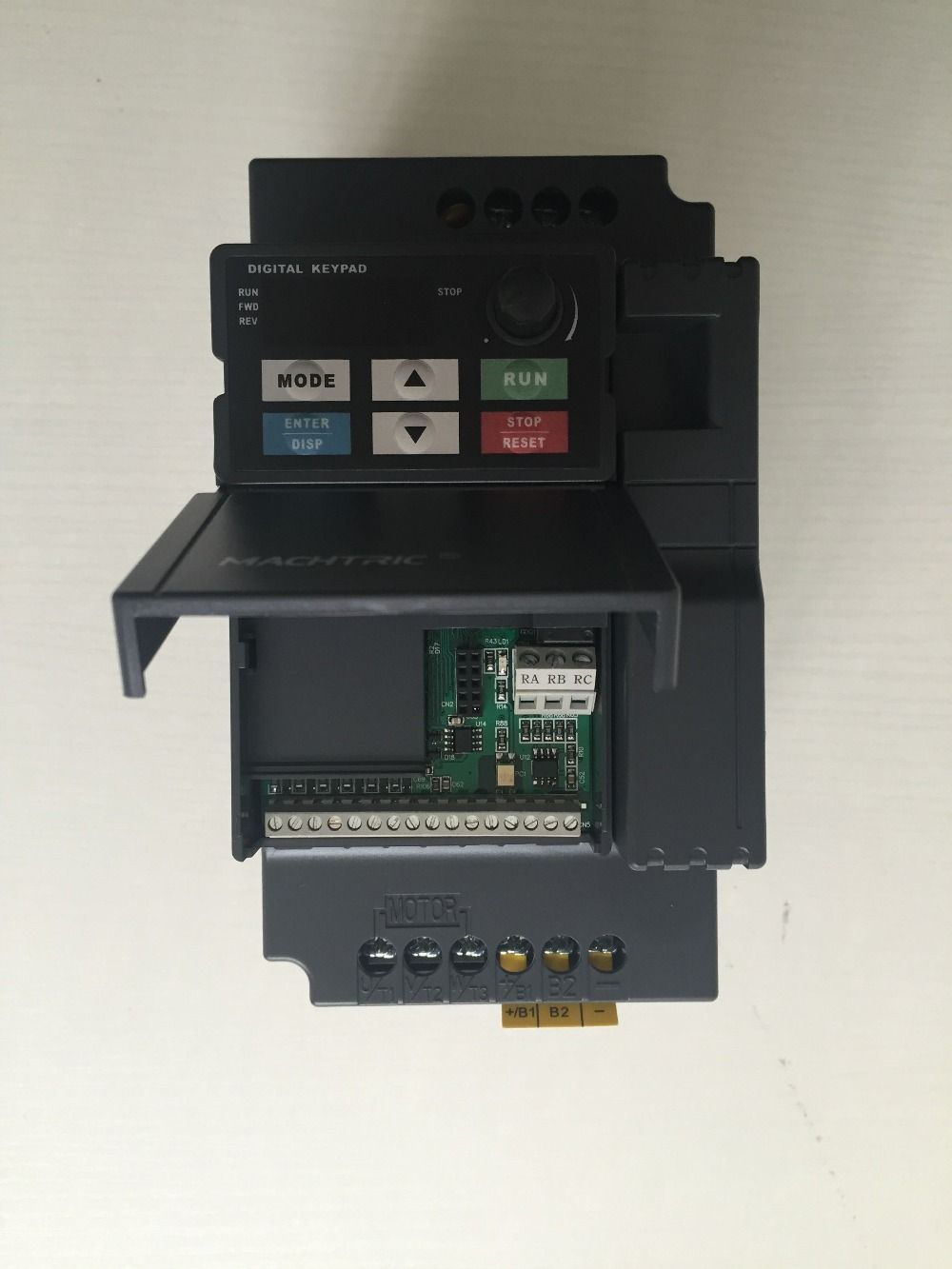

7.Product Show:
8.Contact Us:
