| Prod Model: |
MJ-G11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: |
More Than 1.7g/cm3 |
| Size: |
1220X980mm |
| Delivery: |
7-10 Working Days |
| Appliction: |
for Motor & Generator |
| Samples: |
Free Samples Are Welcome |
| Formation Methods: |
High Temperature and High Pressure |
| Tensile Strength: |
More Than120 MPa |
| Customizable: |
Yes |
| MOQ: |
1 Piece |
| Application: |
Generator |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
F 155 |
| Maximum Voltage: |
>100KV |
| Brand: |
Mj |
Product Description

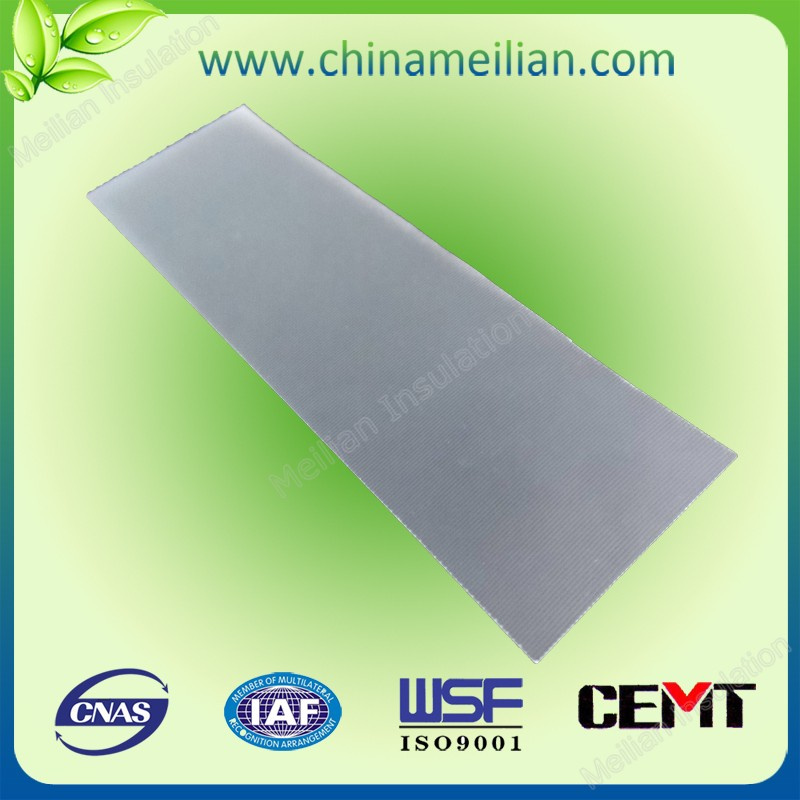

Energy Saving G11 Epoxy Sheet Fiber Glass Insulation Laminated SheetFeatures:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products| Basic Information |
| Product name | Epoxy Fibeglass Insulation Laminate |
| Item No. | MJ-G11 |
| Brand | MJ |
| Material | Epoxy resin and Alkali free fiberglass cloth |
| Grade | Grade F |
| Technical Specification |
| Density | ≥1.7g/cm3 |
| Appearance | Natural color Dark brown, surface smoothly
without bubble and impurities, no flow marks,
Cutting edge without fault and separation |
| Sheets Thickness | 0.1-50mm |
| Size | ≥1220x980mm |
| Formation methods | High temperature and high pressure |
| Thermal stability in 24h | ≥200°C |
| Water absorption | ≤6.5mg |
| Impact strength parallel to laminations (Charpy) | ≥45.3 KJ/m 2 |
| Flexural strength perpendicular to lamination | ≥473 Mpa
|
laminations (Charpy)
Dielectric strength perpendicular to laminations
(in 90±2°C transformer oil,1mm in thickness) |
≥10.7 MV/m |
Breakdown voltage parallel to laminations
(in 90±2°C transformer oil) |
≥40 kV
|
Voltage resistance parallel to layer
(at 90°C±2°C oil for 1min) |
≥30 kV |
| Insulation resistance after impregnated in water | 1.5*10 13 Ω |
| Combustibility | HB Class |
| Dielectric constant (1MHz) | 5.14 |
Packaging Detail:Fiber Glass Insulation Laminated Sheet package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.
Delivery Detail: 7-10 working days.Our Service:
FAQ:
(1) Can you give me a discount price?
Answer: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) Why is your price a bit higher than other Chinese suppliers?
Answer: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.
(3) How can I get a sample?
Answer: Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.
(4) How can you guarantee the quality of mass production is same with the sample sent to me before?
Answer: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
(5) How can you deal with quality issues that customer feedback after receiving the goods?
Answer:
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.

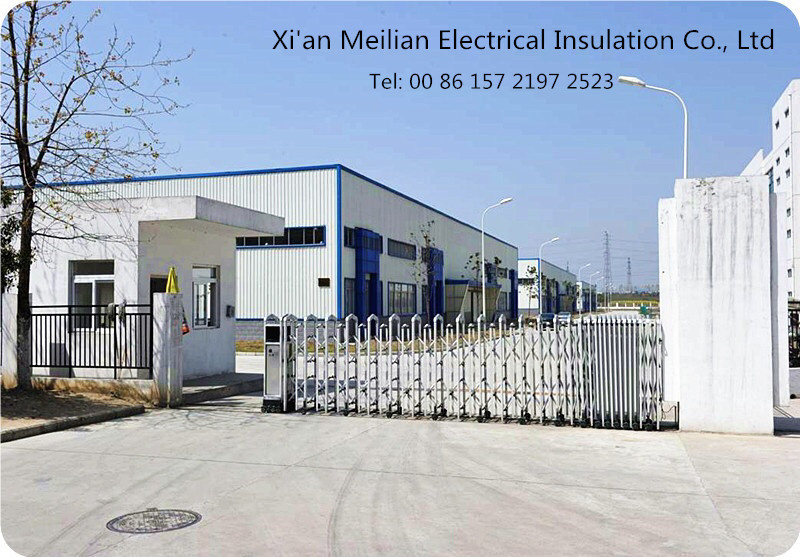

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.
We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.
Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.
We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".
The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
