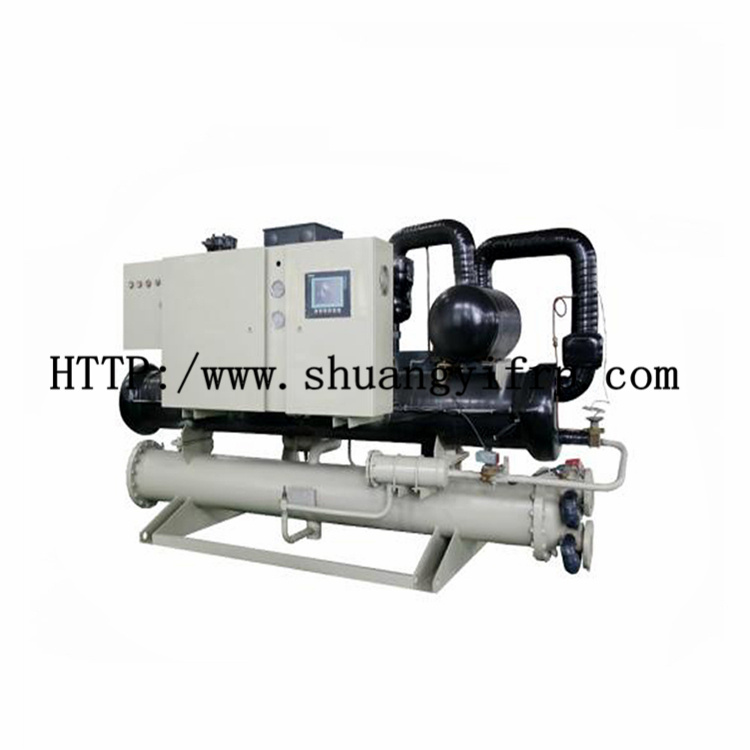

Energy Saving Ground Source Heat Pump
| Price: |
US $ 5000-50000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GSHP |
| Refrigerating Capacity: |
100-1880kw |
| Refrigerant: |
R22 |
| Fuction: |
Refrigeration,Heat |
| Usage: |
Central Air-Conditioning System |
| Advantage: |
Low Noise,Easy Maintenance |
| Delivery: |
30-35days |
| Warranty: |
12 Months |
| Name: |
Energy Saving Ground Source Heat Pump |
Product Description
Energy Saving Ground Source Heat PumpBrief IntroductionIt's also called ground source central air conditioning.It use the solar energy stored in the earth as a heating and cooling air conditioning system for energy conversion.It use underground room-temperature soil and groundwater so it has the temperature relatively stable characteristic.

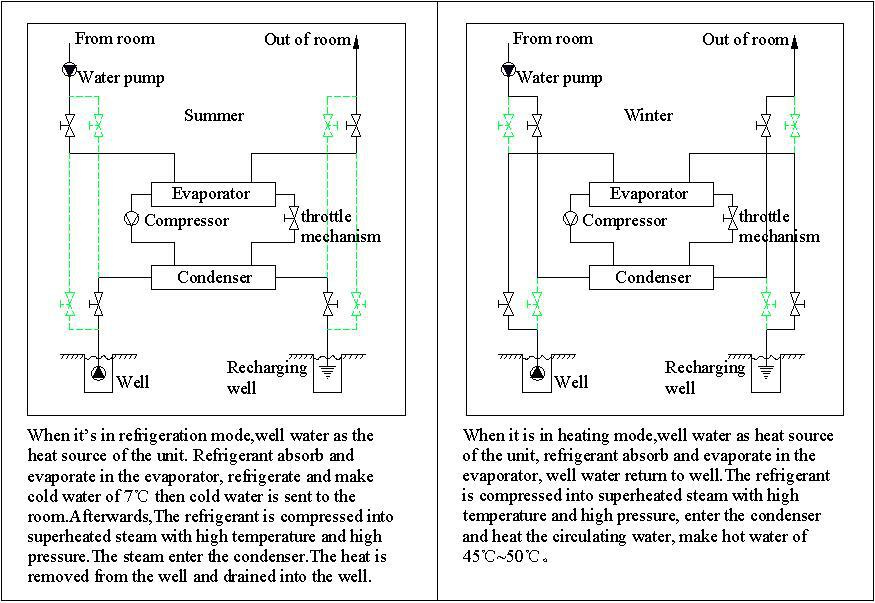

In winter,When the unit is in heating mode,it absorb heat from the soil or water then the heat is concentrated in the earth through the compressor and the heat exchanger and released to the chamber at a higher temperature.
In summer,when the unit is in refrigeration mode,the cold quantity is extracted from soil or water.Through the compressor and heat exchanger, the cold quantity is concentrated into the chamber, and at the same time the indoor heat is discharged into the soil or water to achieve the purpose of refrigeration.
The ground source heat pump can meet the requirements of heating and cooling, while also providing hot water for life and reducing the initial investment of equipment, which is the most economical and environmentally friendly central air conditioning system
Features1.renewable
2. energy-efficient
3.Environmental and economic benefits are significant
4. The application scope is wide.
Product technical characteristicsenvironmental protection
energy conservation
Land-saving
Water-saving
Save money
High quality ground source heat pump central air conditioning product performance characteristics
optimal design
carefully selected
Simple operation and reliable operation
wide range of application
Advanced control technology and network functionsConcise and clear information display
Advanced network function
Flexible and convenient parameter setting
Model Specification Summary
Chart 1 | Unit Type(GSHP) | Ground source heat pump series |
| | 100.0 | 130.0 | 150.0 | 180.0 | 220.0 | 280.0 | 350.0 | 430.0 |
| Underground water conditions | Cooling capacity | kW | 100.0 | 130.0 | 150.0 | 180.0 | 221.0 | 278.0 | 348.0 | 430.0 |
| | Cooling rated power | kW | 19.3 | 24.5 | 31.0 | 35.0 | 42.5 | 54.0 | 69.0 | 82.0 |
| | Heating capacity | kW | 110.0 | 143.0 | 165.0 | 198.0 | 243.1 | 300.5 | 382.8 | 473.0 |
| | Heating rated power | kW | 27.0 | 34.0 | 43.0 | 48.2 | 57.7 | 76.1 | 99.5 | 117.5 |
| | Use side circulation flow | m3/h | 17.2 | 22.4 | 25.8 | 31.0 | 38.0 | 47.8 | 59.8 | 73.9 |
| | Heat source circulation flow | m3/h | 9.4 | 12.2 | 14.1 | 16.9 | 20.7 | 26.1 | 32.6 | 40.3 |
| Surface management conditions | Cooling capacity | kW | 100.0 | 130.0 | 150.0 | 180.0 | 221.0 | 278.0 | 348.0 | 430.0 |
| | Cooling rated power | kW | 19.3 | 24.5 | 31.0 | 35.0 | 42.5 | 54.0 | 69.0 | 82.0 |
| | Heating capacity | kW | 90.2 | 117.3 | 135.3 | 162.4 | 199.3 | 250.8 | 313.9 | 387.9 |
| | Heating rated power | kW | 27.0 | 34.0 | 43.0 | 48.2 | 57.7 | 76.1 | 99.5 | 117.5 |
| | Use side circulation flow | m3/h | 17.2 | 22.4 | 25.8 | 31.0 | 38.0 | 47.8 | 59.8 | 73.9 |
| | Heat source circulation flow | m3/h | 20.6 | 26.8 | 31.0 | 37.1 | 45.6 | 57.4 | 71.8 | 88.7 |
| Power supply | Three-phase power 380V 50Hz |
| Energy control | 50%-100% | 25%-100% |
| Compressor | Type | Fully enclosed scroll compressor | Semi - closed screw compressor |
| | Quantity | Set | 2 | 1 |
| Refrigerant | Type | R22 |
| | Quantity | kg | 21 | 28 | 34 | 40 | 49 | 57 | 77 | 96 |
| Evaporator | Type | Shell and tube heat exchanger |
| | Dirt factor | m²ºC/kW | 0.086 |
| | Water resistance | kPa | 40 | 50 | 50 | 45 | 45 | 45 | 45 | 45 |
| | Pipe size | DN | 65 | 65 | 80 | 80 | 100 | 100 | 100 | 125 |
| Condenser | Type | Shell and tube heat exchanger |
| | Dirt factor | m²ºC/kW | 0.086 |
| | Water resistance | kPa | 40 | 50 | 50 | 45 | 45 | 45 | 45 | 46 |
| | Pipe size | DN | 65 | 65 | 80 | 80 | 100 | 100 | 100 | 125 |
| Dimensions | Length | mm | 2300 | 2400 | 2360 | 2300 | 2900 | 2980 | 3120 | 3270 |
| | Width | mm | 800 | 820 | 1150 | 1150 | 1050 | 1060 | 1280 | 1310 |
| | Height | mm | 1290 | 1350 | 1420 | 1420 | 1180 | 1450 | 1600 | 1810 |
| | Unit weight | kg | 1360 | 1500 | 1800 | 1800 | 1900 | 2200 | 2640 | 2800 |
Chart 2
| Unit Type(GSHP) | Ground source heat pump series |
| | 480.0 | 540.0 | 580.0 | 620.0 | 700.0 | 780.0 | 860.0 | 960.0 |
| Underground water conditions | Cooling capacity | kW | 480.0 | 538.0 | 580.0 | 616.0 | 700.0 | 780.0 | 860.0 | 958.0 |
| | Cooling rated power | kW | 91.0 | 103.0 | 115.0 | 120.6 | 134.0 | 149.0 | 162.0 | 180.0 |
| | Heating capacity | kW | 528.0 | 591.8 | 638.0 | 677.6 | 770.0 | 858.0 | 946.0 | 1053.8 |
| | Heating rated power | kW | 125.0 | 148.0 | 152.0 | 156.6 | 189.0 | 204.0 | 228.0 | 240.0 |
| | Use side circulation flow | m3/h | 82.5 | 92.5 | 99.7 | 105.9 | 120.4 | 134.1 | 147.9 | 164.7 |
| | Heat source circulation flow | m3/h | 45.0 | 50.5 | 54.4 | 57.8 | 65.7 | 73.2 | 80.7 | 89.9 |
| Surface management conditions | Cooling capacity | kW | 480.0 | 538.0 | 580.0 | 616.0 | 700.0 | 780.0 | 860.0 | 958.0 |
| | Cooling rated power | kW | 91.0 | 103.0 | 115.0 | 120.6 | 134.0 | 149.0 | 162.0 | 181.0 |
| | Heating capacity | kW | 433.0 | 485.3 | 523.2 | 566.0 | 631.4 | 703.6 | 775.7 | 864.1 |
| | Heating rated power | kW | 125.0 | 148.0 | 152.0 | 156.6 | 189.0 | 204.0 | 228.0 | 240.0 |
| | Use side circulation flow | m3/h | 82.5 | 92.5 | 99.7 | 105.9 | 120.4 | 134.1 | 147.9 | 164.7 |
| | Heat source circulation flow | m3/h | 99.1 | 111.0 | 119.7 | 127.0 | 144.0 | 161.0 | 177.5 | 198.0 |
| Power supply | Three-phase power 380V 50Hz |
| Energy control | 25%-100% | 12.5%-100% |
| Compressor | Type | Semi - closed screw compressor |
| | Quantity | Set | 1 | 2 | 2 |
| Refrigerant | Type | R22 |
| | Quantity | kg | 106 | 120 | 129 | 138 | 150 | 170 | 190 | 210 |
| Evaporator | Type | Shell and tube heat exchanger |
| | Dirt factor | m²ºC/kW | 0.086 |
| | Water resistance | kPa | 46 | 46 | 46 | 47 | 47 | 47 | 50 | 50 |
| | Pipe size | DN | 125 | 125 | 125 | 125 | 125 | 150 | 150 | 150 |
| Condenser | Type | Shell and tube heat exchanger |
| | Dirt factor | m²ºC/kW | 0.086 |
| | Water resistance | kPa | 46 | 46 | 46 | 47 | 47 | 47 | 50 | 50 |
| | Pipe size | DN | 125 | 125 | 125 | 125 | 125 | 150 | 150 | 150 |
| Dimensions | Length | mm | 3300 | 3450 | 3500 | 3640 | 3760 | 4000 | 4050 | 4160 |
| | Width | mm | 1500 | 1550 | 1550 | 1310 | 1380 | 1500 | 1550 | 1600 |
| | Height | mm | 1570 | 1750 | 1800 | 1845 | 1760 | 1770 | 1800 | 1900 |
| | Unit weight | kg | 3250 | 3550 | 3600 | 3650 | 3750 | 3890 | 3890 | 4210 |
Chart 3
| Unit Type(GSHP) | Ground source heat pump series |
| | 1020.0 | 1080.0 | 1200.0 | 1320.0 | 1450.0 | 1560.0 | 1670.0 | 1780.0 | 1880 |
| Underground water conditions | Cooling capacity | kW | 1020.0 | 1080.0 | 1200.0 | 1320.0 | 1450.0 | 1560.0 | 1670.0 | 1780.0 | 1880 |
| | Cooling rated power | kW | 192.0 | 203.0 | 224.0 | 248.0 | 271.0 | 308.4 | 327.5 | 348.0 | 368.2 |
| | Heating capacity | kW | 1122.0 | 1188.0 | 1320.0 | 1452.0 | 1595.0 | 1716.0 | 1837.0 | 1958.0 | 2068 |
| | Heating rated power | kW | 258.0 | 278.0 | 309.0 | 338.0 | 381.0 | 413.0 | 425.2 | 452.0 | 478.2 |
| | Use side circulation flow | m3/h | 175.4 | 185.7 | 206.4 | 227.0 | 249.4 | 268.3 | 287.2 | 306.1 | 323.3 |
| | Heat source circulation flow | m3/h | 95.7 | 101.3 | 112.6 | 123.8 | 136.0 | 146.3 | 156.6 | 167.0 | 176.3 |
| Surface management conditions | Cooling capacity | kW | 1020.0 | 1080.0 | 1200.0 | 1320.0 | 1450.0 | 1560.0 | 1670.0 | 1780.0 | 1880 |
| | Cooling rated power | kW | 192.0 | 203.0 | 224.0 | 248.0 | 271.0 | 308.4 | 327.5 | 348.0 | 368.2 |
| | Heating capacity | kW | 920.0 | 974.2 | 1082.4 | 1190.6 | 1307.9 | 1407.1 | 1506.3 | 1605.6 | 1696 |
| | Heating rated power | kW | 258.0 | 278.0 | 309.0 | 338.0 | 381.0 | 413.0 | 425.2 | 452.0 | 478.2 |
| | Use side circulation flow | m3/h | 175.4 | 185.7 | 206.4 | 227.0 | 249.4 | 268.3 | 287.2 | 306.1 | 323.3 |
| | Heat source circulation flow | m3/h | 210.5 | 222.9 | 247.6 | 272.4 | 299.2 | 321.9 | 344.6 | 367.3 | 388 |
| Power supply | Three-phase power 380V 50Hz |
| Energy control | 12.5%-100% |
| Compressor | Type | Semi - closed screw compressor |
| | Quantity | Set | 2 |
| Refrigerant | Type | R22 |
| | Quantity | kg | 225 | 240 | 260 | 290 | 320 | 345 | 358 | 389 | 403 |
| Evaporator | Type | Shell and tube heat exchanger |
| | Dirt factor | m²ºC/kW | 0.086 |
| | Water resistance | kPa | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| | Pipe size | DN | 150 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 |
| Condenser | Type | Shell and tube heat exchanger |
| | Dirt factor | m²ºC/kW | 0.086 |
| | Water resistance | kPa | 50 | 50 | 50 | 50 | 50 | 50 | 51 | 51 | 51 |
| | Pipe size | DN | 150 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 |
| Dimensions | Length | mm | 4350 | 4480 | 4560 | 4600 | 4630 | 4645 | 4680 | 4690 | 4750 |
| | Width | mm | 1620 | 1620 | 1720 | 1750 | 1750 | 1750 | 1780 | 1800 | 1800 |
| | Height | mm | 1860 | 1900 | 1700 | 1870 | 1900 | 2175 | 2200 | 2225 | 2230 |
| | Unit weight | kg | 4740 | 5600 | 6600 | 6800 | 7000 | 8000 | 8500 | 8800 | 9200 |
Packing Show
