Prod Model:	FX9 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Household Appliances
Operating Speed:	High Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless

Product Description

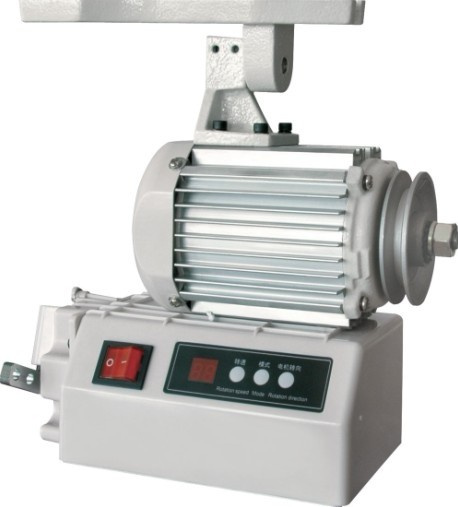

Energy-Saving Motor FX9 Series

Function Characteristic:
(1). Compared with clutch motor, save 60%~75% energy;
(2). Stepless speed can be controlled by pedal, maximal speed is adjustable;
(3). Low noise, low vibration low temperature rise and high efficiency, system can run reposefully and safely;
(4). Hardware and software over current protection, hardware and software over-voltage/under-voltage protection to make the controller more reliable;
(5). Use brushless motor, not have to change any parts, longer life;
(6). Switch mode power supply, with wider voltage applicable range;
(7). Precise torque control, so that it can adapt to lockstitch, overlock, interlock, etc.
(8). Precise needle position: For both up and down, the system will locate it at the exact position.

Motor Type	FX9140A	FX9240A	FX9140B	FX9240B
Energy saving (Compare With Clutch Motor)	60%-75%	60%-75%	60%-75%	60%-75%
Voltage Range	220V+ 20%, 50/60HZ	220V+ 20%, 50/60HZ	110V+ 10%, 50/60HZ	110V+ 10%, 50/60HZ
Output Power	400W	400W	400W	400W
Max. Speed	3800rpm	3800rpm	3600rpm	3600rpm
Max. Torque	2 Nm	2 Nm	2 Nm	2 Nm
Pulley Size	65mm	65mm	65mm	65mm
Applicable Scope	Lockstitch, overlock, interlock, etc	Lockstitch, overlock, interlock, etc	Lockstitch, overlock, interlock, etc	Lockstitch, overlock, interlock, etc
Weight	Gross weight: 6.5 kg; Net weight: 5.6 kg
Dimension	320×305×195 mm
