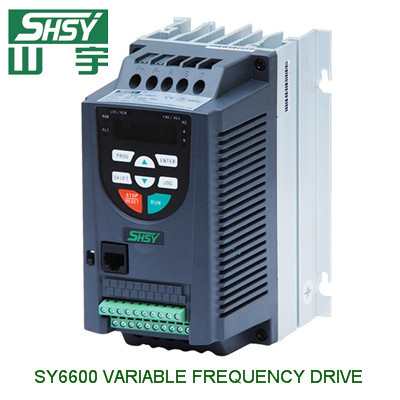

Energy Saving Variable Frequency Drive (VFD) 0.4kw-2.2kw (SANYU SY6600 Single Phase Economic Type)

Name: Energy Saving Variable Frequency Drive (VFD) 0.4kw-2.2kw (SANYU SY6600 Single Phase Economic Type)
Brand: all-electronics-online.com
SKU: 693027745
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 98/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Sy6600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Carrier Frequency:	1.0~15.0 Hz
Output Frequency:	0-600Hz
Weight:	1.8kgs
Input Voltage:	220V+/-15% 1pH
Communication:	RS485 Modbus
Output Power:	0.4 - 2.2kw
Type:	AC-DC-AC
Starting Torque:	0.5Hz/ 150%
Size:	210mm110mm170mm
Output Voltage:	220V+/-15% 3pH
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Current
Brand:	Sanyu

Product Description

Energy Saving Variable Frequency Drive(VFD) 0.4KW-2.2KW (SANYU Sy6600 Single Phase Economic Type)

1. AC drive leading manufacturer
2. CE, CCC, SGS, ISO9001
3. Multi-function
4. High torque accurate
5. V/F control
6. Japanese Design
7. Olympic Application Product

Widely used in:

1. Metallurgy
2. Chemical
3. Petroleum
4. TextileElectric
5. PowerBuilding materials
6. Coal
7. Plastics
8. Printing and Dyeing
9. CableWashing
10. Water supply
11. Heating

Inverter Model	Input Voltage (V)	Rated Output Power (KW)	Rate Input Current(A)	Rated Output Current(A)	Applicable Motor(KW)
SY6600-0R4G-S2	Single Phase 220V± 15%	0.4	5.4	2.3	0.4
SY6600-0R7G-S3		0.75	8.2	4.5	0.75
SY6600-1R5G-S4		1.5	14.2	7	1.5
SY6600-2R2G-S5		2.2	23	10	2.2

Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.

SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.

In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.

Let's make a bright future together!
