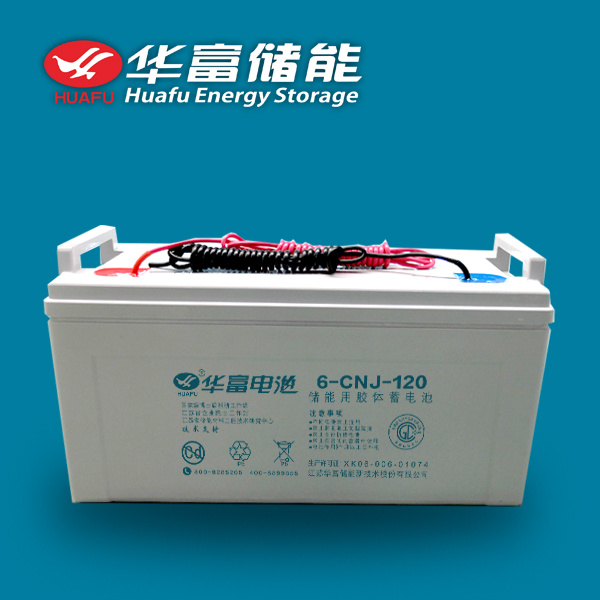

Energy Storage Battery 2V 12V 5ah -3200ah
| Price: |
US $ 18-750/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Money Gram,Western Union |
| Prod Model: |
CNJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Energy Storage: |
Gel Battery |
| Nominal Capacity: |
2V/12V |
| Warranty: |
4 Years |
| Design Life: |
8 Years |
| Maintenance Free: |
Yes |
| Type: |
Lead-Acid Batteries |
| Usage: |
off -Grid PV Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
Product Description
Maintenance free: YES
Application:
CN&CNJ Series:
Wind power station, Photovoltaic power stations, Communication,Telecommunication stations, Traffic field, Garden lamp power, Solar energy building, Other fields
GFM&GFMJ Series:
Stand- by power source of communication, electric power, finance,network,electronic system,etc.
EVF&EVFJ Series:
Suitable for power to EV, electro tricycles, golf carts, tourism cars, patrol cars and mini trucks.
| Model |
|
| Max.Discharge Current | 30I10A (3min) |
| Self-Discharge(25°C) | <3%/month |
| Warranty | 4years |
| Designed life | 8years |
| Using Temperature | Discharge: -25°C~50°C |
| Charge: -20°C~45°C |
| Storage: -30°C~40°C |
| Recommended Using Temperature | 15°C~30°C |
| Charge Voltage (25°C) | Float Charge: 13.5V-13.8V |
| Average Charge: 14.4V-14.7V |
| Max.Charge Current | ≤0.25C10 |
| Charge Mode(25°C) | Float Charge:13.65±0.15V/Cell |
| Temperature Compensation Coefficient :±18 mV/Cell°C |
| Cycle Charge:14.7±0.3V/Cell |
| Temperature Compensation Coefficient: ±30 mV/Cell°C |
| Cover Material | ABS Engineering Plastic |
| Cycle life | 105 % @ 40°C |
| 85 % @ 0°C |
| 60 % @ -20°C |
| 100%DOD 520 times |
| DOD cycle | 50%DOD 1350 times |
| 30%DOD 2188 times |
| NO. | Model | Dimension(mm) | Reference weight(Kg) | Lead-acid weight(Kg) | Gel Weight (Kg) | Guarantee period(Year) | Design life(Year) |
| Length | Width | Height | Total H |
| 1 | 12v 8ah | 151 | 65 | 95 | 99 | 2.7 | 2.7 | 2.7 | 2 | 5 |
| 2 | 12v 12ah | 151 | 100 | 97.5 | 102 | 4.2 | 4.2 | 4.2 | 2 | 5 |
| 3 | 12v 14ah | 151 | 100 | 97.5 | 102 | 4.4 | 4.4 | 4.4 | 2 | 5 |
| 4 | 12v 20ah | 181 | 77 | 170 | 175 | 6.4 | 6.4 | 6.4 | 2 | 5 |
| 5 | 12v 24ah | 165 | 126 | 172 | 179 | 8.5 | 8.5 | 8.5 | 3 | 8 |
| 6 | 12v 30ah | 318 | 81 | 128 | 130 | 8.7 | 8.7 | 8.7 | 3 | 8 |
| 7 | 12v 40ah | 196 | 165 | 174 | 181 | 12.3 | 12.2 | 12.4 | 3 | 8 |
| 8 | 12v 50ah | 350 | 166 | 174 | 174 | 17.7 | 17.6 | 17.8 | 3 | 8 |
| 9 | 12v 60ah | 350 | 166 | 174 | 174 | 18.6 | 18.5 | 18.7 | 3 | 8 |
| 10 | 12v 65ah | 350 | 166 | 174 | 174 | 20.5 | 20.4 | 20.6 | 3 | 8 |
| 11 | 12v 70ah | 350 | 166 | 174 | 174 | 20.9 | 20.8 | 21.0 | 3 | 8 |
| 12 | 12v 80ah | 329 | 172 | 214 | 236 | 25.4 | 25.3 | 25.5 | 3 | 8 |
| 13 | 12v 90ah | 329 | 172 | 214 | 236 | 26.0 | 25.9 | 26.1 | 3 | 8 |
| 14 | 12v 100ah | 406 | 174 | 208 | 232 | 31.5 | 31.3 | 31.7 | 3 | 8 |
| 15 | 12v100ah II | 329 | 172 | 214 | 236 | 29.0 | 28.9 | 29.1 | 3 | 8 |
| 16 | 12v110ah | 406 | 174 | 208 | 232 | 32.0 | 31.8 | 32.2 | 3 | 8 |
| 17 | 12v 120ah | 406 | 174 | 208 | 232 | 34.3 | 34.1 | 34.5 | 3 | 8 |
| 18 | 12v 150ah | 483 | 170 | 240 | 240 | 42.0 | 41.8 | 42.2 | 3 | 8 |
| 19 | 12v 180ah | 522 | 240 | 219 | 244 | 55.0 | 54.7 | 55.3 | 3 | 8 |
| 20 | 12v 200ah | 522 | 240 | 219 | 244 | 58.2 | 57.9 | 58.5 | 3 | 8 |
| 21 | 12v 220ah | 522 | 240 | 219 | 244 | 60.3 | 60.0 | 60.6 | 3 | 8 |
| 22 | 12v 250ah | 520 | 269 | 220 | 245 | 69.0 | 68.7 | 69.3 | 3 | 8 |
| 23 | 2v 200ah | 171 | 106 | 330 | 342 | 13.2 | 13.1 | 13.3 | 3 | 15 |
| 24 | 2v 300ah | 171 | 151 | 330 | 342 | 18.3 | 18.2 | 18.4 | 3 | 15 |
| 25 | 2v 400ah | 196 | 171 | 330 | 342 | 23.5 | 23.4 | 23.6 | 3 | 15 |
| 26 | 2v 500ah | 241 | 171 | 330 | 342 | 29.5 | 29.4 | 29.6 | 3 | 15 |
| 27 | 2v 600ah | 285 | 171 | 330 | 342 | 35.0 | 34.8 | 35.2 | 3 | 15 |
| 28 | 2v 800ah | 383 | 171 | 330 | 342 | 48.0 | 47.8 | 48.2 | 3 | 15 |
| 29 | 2v 1000ah | 471 | 171 | 330 | 342 | 58.0 | 57.7 | 58.3 | 3 | 15 |
| 30 | 2v 1200ah | 510 | 175 | 337 | 347 | 68.0 | 67.7 | 68.3 | 3 | 15 |
| 31 | 2v 1500ah | 318 | 341 | 341 | 351 | 84.5 | 84.1 | 84.9 | 3 | 15 |
| 32 | 2v 2000ah | 433 | 342 | 341 | 351 | 114.0 | 113.4 | 114.6 | 3 | 15 |
| 33 | 2v 2500ah | 629 | 346 | 341 | 351 | 160.0 | 159.2 | 160.8 | 3 | 15 |
| 34 | 2v 3000ah | 629 | 346 | 341 | 351 | 169.0 | 168.2 | 169.8 | 3 | 15 |
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
