| Prod Model: |
vehicle gps tracker TK 103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC ISO |
| Size: |
110mm*82mm*28mm |
| Weight: |
220g |
| Functions For Car Tracking: |
Cut Car Engine&Door Lock Sytem, Dual Fuel Check |
| Disable The Vehicle Remotely: |
Remotely Cut Car Engine |
| Network: |
GSM/GPRS |
| Main Functions For Vehicle: |
Acc, Door, Sensor, Overspeed Alarm |
| Frequence: |
850/900/1800/1900MHz or 900/1800/1900MHz |
| OEM: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Screen |
Product Description

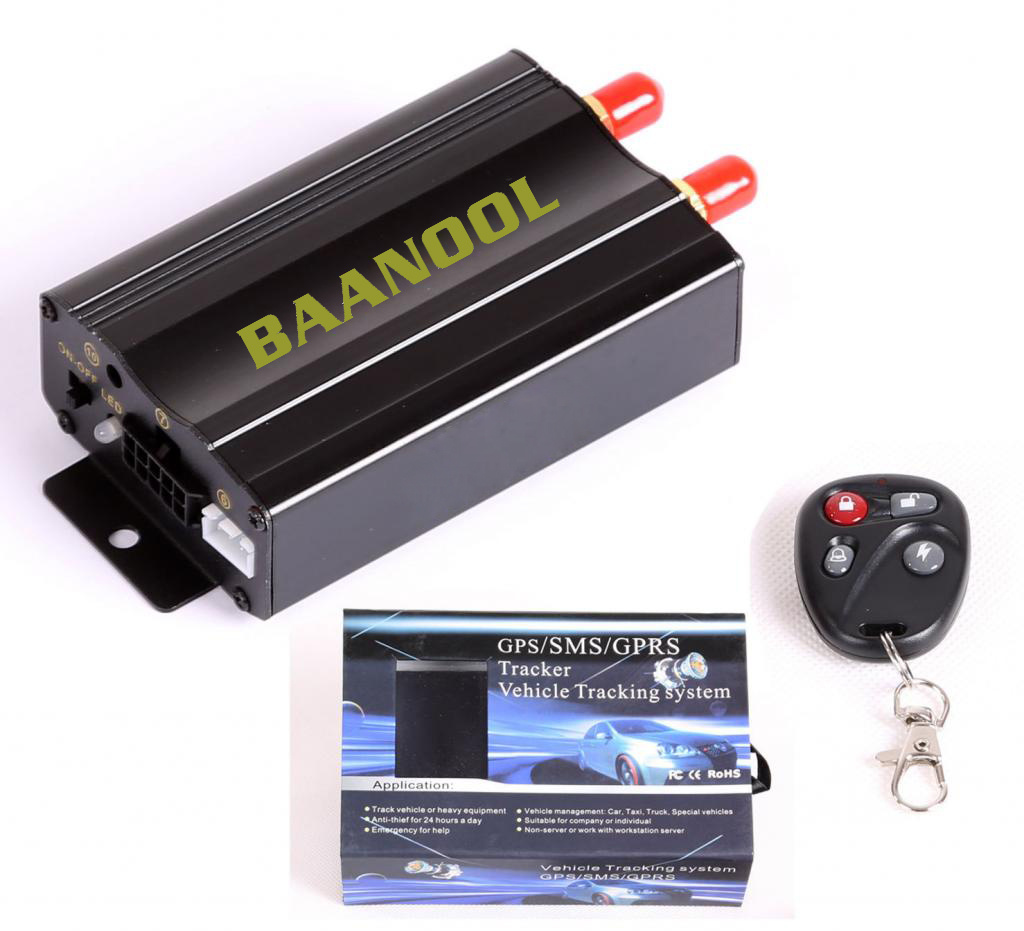

TK103 GPS tracker
Model: GPS tracker TK-103A B,TK103A+ B+
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
Support both GPS & LBS (Location based service).
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of anti-theft, positioning, monitoring surveillance, emergency alarms and management in its entirety.
Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking
New functions:
dual Sim Card,dual fuel sensor,central lock system
Gps tracker gps tracking device car gps tracker GPS vehicle tracker Wholesale vehicle gps tracking device support Built-in
3. Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Application Vehicle monitoring
Car positioning
Logistic monitoring

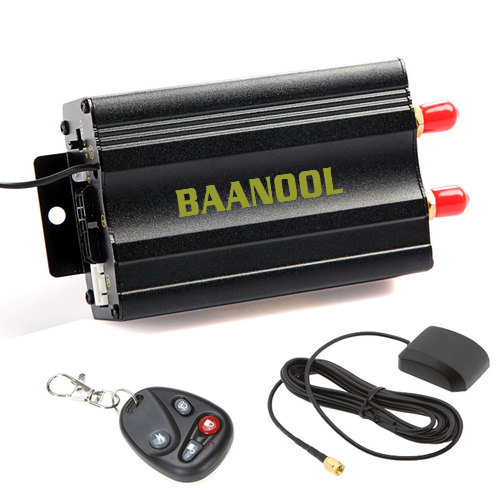

Optional accessories: Shock sensor (optional for model A/B);
Alarm siren (optional for model A/B);
Remote controller (optional only for modelB)

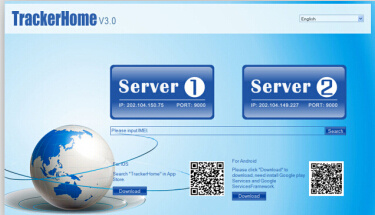

How to tracking ?
The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | G S M/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing
|
