| Prod Model: |
GPS vehicle tracking system 103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hot Selling Country: |
Venezuela Spanish Countries, Asia, Africa |
| Weight: |
120g |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Remote Controller: |
Optional for Arm/Disarming |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months Warranty Coban GPS Tracker |
| Alarms: |
Tracking, Geofence, Fuel Monitoring, Over Speed |
| Tracking Solutions: |
SMS, GPRS, Android Ios Apps |

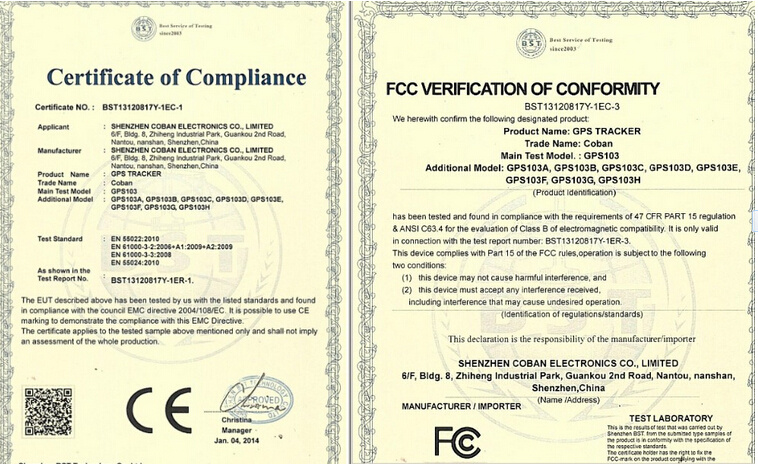

| Certificate: |
Ce FCC Coban GPS Tracker |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Brand: |
Baanool |
| Chip: |
No |
| Certification: |
Ios9001 |

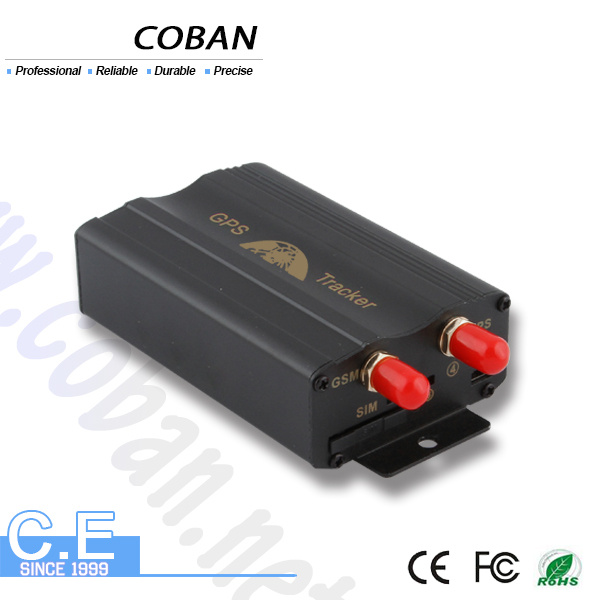

Product Description
engine stop Gps Car tracker live tracking in Android Ios app Features and functions*Small cubage, dimension: 83mm*54mm*26mm,
weight: 120g, easy to hide.
*Support orientation without orientated server: It can find out
Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually,
You can find out the real-time information of position.
*If the target you are inquiring enters into underground parking lot Or other GPS blind area, the tracker will inform you the last orientation.
*Get location in real street/address name
*Remote Engine-stop and Resume*Active and deactive
DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control*tracking function by timing and frequency*Remote reset by SMS & reset button on the device
*Input Power:
12V-24V DC*GSM/GPS LED indicator
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence: Set up a geo-fence for the unit to restrict its movements
Within a district. The unit will send the message to the authorized
Numbers when it breaches the district.
*Power supply disconnection alarm.
*Door alarm
*ACC alarm
*Movement alert: You can set up barriers when the vehicle is stopped.
Once moved, it can give an alarm to the authorized number.
*Over speed alarm: You can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
*Low battery alarm function
*Check the vehicle status
Optional functions: *Quiver alarm*siren/horn
Product Notes:Great for private use, company car or rental fleet management
Comes with external GSM and GPS antenna for excellent reception
Install the mic inside your passenger compartment, and you can listen to conversations inside the car without letting any passenger or driver know
Comes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring (fixed IP only), so constant tracking information can be displayed on a detailed map
Package Contents for Model 103GPS Car Tracker
GPS Antenna
GSM Antenna
Microphone
Relay
Wiring
English Manual
FAQ - Frequently Asked QuestionsHow do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into usable visual information.
The unit does not pick up a GSM signal and the SMS functions aren't working,
What's wrong? A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
Can I install the software on multiple computers?
No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
Ordering from Shenzhen Coban Electronics Co, . Ltd provides you with the following benefits:
- Orders processed and shipped within 24-hours
- 12 month warranty- In-house QC- Member discounts
- Award winning customer support- Quantity order discounts
- Worldwide Shipping
Our Services
Warranty1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Specification| Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |

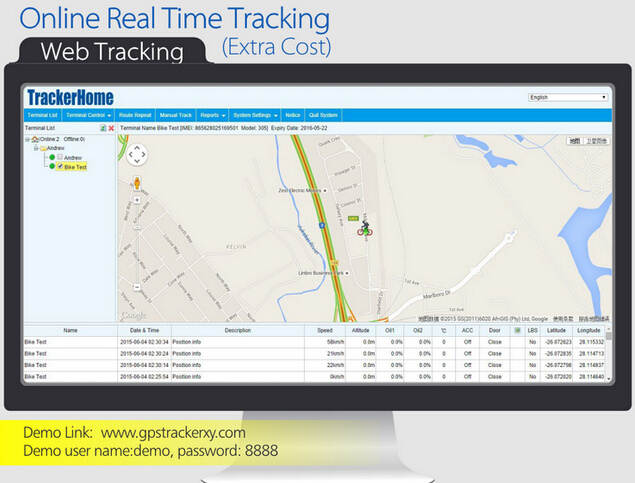

Track on website www.gpstrackerxy.com

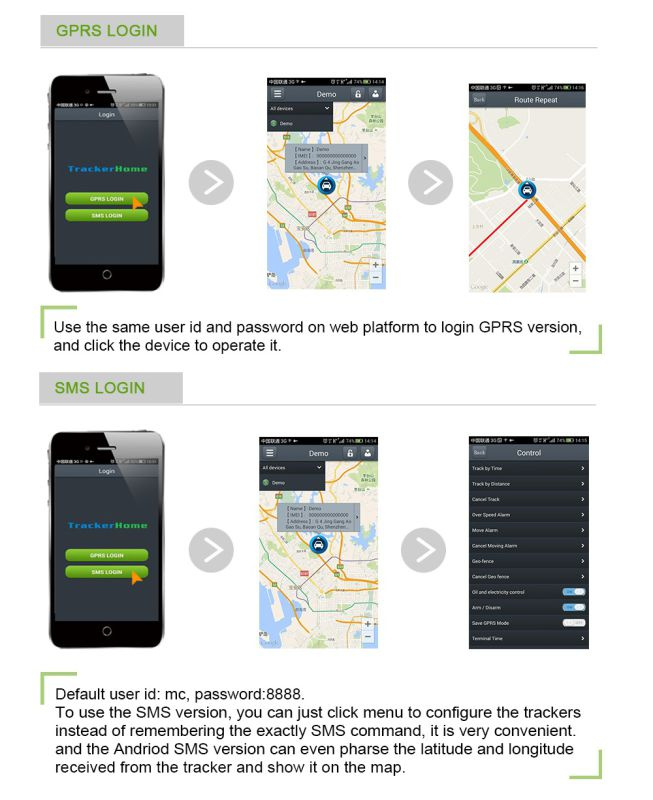

Android Ios app tracking
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
