| Prod Model: |
SLT57S01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angel Accuracy: |
+/-5% |
| Resistance Accuracy: |
+/-10% |
| Inductance Accuracy: |
+/-20% |
| Temperature Rise: |
80° C Max |
| Ambient Temperature: |
-10oc-+50oc |
| Insulation Resistance: |
100mmin.500 VDC; |
| Dielectric Strength: |
500V AC for One Minute |
| Shaft Radial Play: |
0.06max |
| Shaft Axial Play: |
0.08max |
| Number Of Stator: |
Three-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
The Three Single Phase |
| Type: |
Magnetic-Electric |
| Brand: |
Slt |
Product Description
product description:
1,Voltage:4V-48V
2,Current:0.5A-10A
3,Resistor:0.2Ω-40Ω
4,Max brake torque:2-300 Oz-in
5, Step Angel Accuracy:+/-5%
6,Inductance Accuracy:+/-10%
7,Temperature Rise:+/-20%

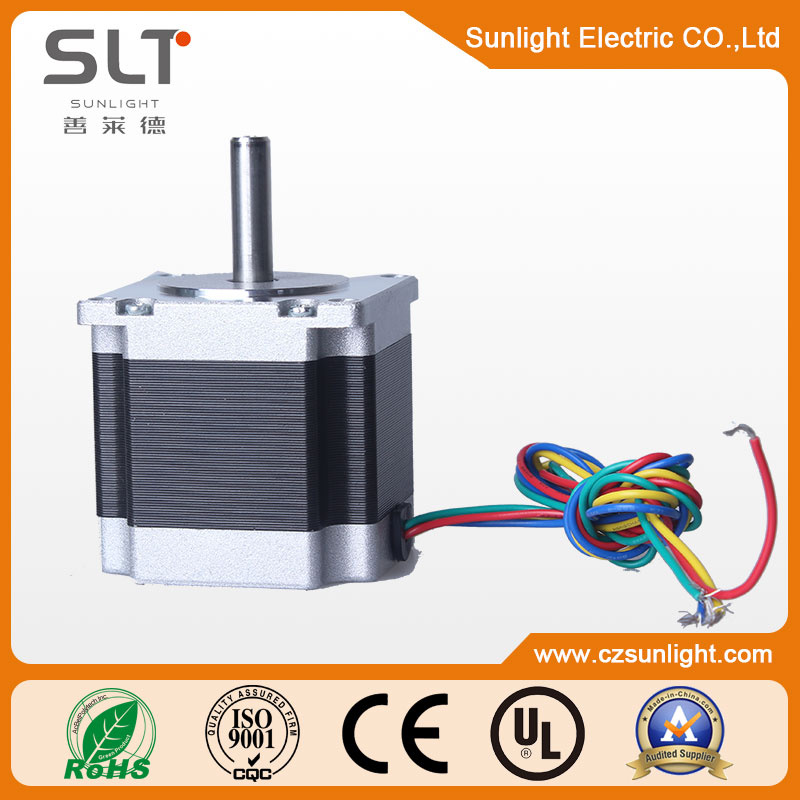

The specification of Precise Mini Electric Stepper Motor for Medical Instrument
| model |
| single shaft | single shaft | single shaft | single shaft |
| 57H41M-1006A | 57H41M-2006A | 57H41M-2804A | 57H56M-1006A |
| double shaft | double shaft | double shaft | double shaft |
| 57H41M-1006B | 57H41M-2006B | 57H41M-2804B | 57H56M-1006B |
| voltage | V | 5.7 | 2.8 | 2 | 7.4 |
| current | A | 1 | 2 | 2.8 | 1 |
| Phrase Resistance |
| 5.7 | 1.4 | 0.7 | 7.4 |
| Phrase Inductance | mH | 8 | 2.2 | 2.2 | 17.5 |
| Holding Torque | Oz-in | 54.16 | 54.16 | 73.89 | 125 |
| 6 | 6 | 4 | 6 |
| Motor Weight | Kg | 0.47 | 0.47 | 0.47 | 0.7 |
| Motor Length | mm | 41 | 41 | 41 | 56 |
Application of Precise Mini Electric Stepper Motor for Medical Instrument
a.Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
b.Home Appliance ( Electric cooker, Electric mop and other products.)Medical equipment and beauty products.
c.Office products (such as printer, scanner......)
d.Electric tools and garden tools.
