environmental 5MPa Insulation Rubber Flooring Mat with EU Certificate

Name: environmental 5MPa Insulation Rubber Flooring Mat with EU Certificate
Brand: all-electronics-online.com
SKU: 691077891
Availability: InStock
Rating: 5 (144 reviews)

Price:	US $ 0.8-316
Min Order:	50016
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Application:	Winding Wire Coating Insulation
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	250 250
Maximum Voltage:	>100KV

Product Description

Great Wall rubber CO. Ltd in Beijing directly sales insulation rubber sheet

factory good quality insulation rubber sheet with EU and reach certificates

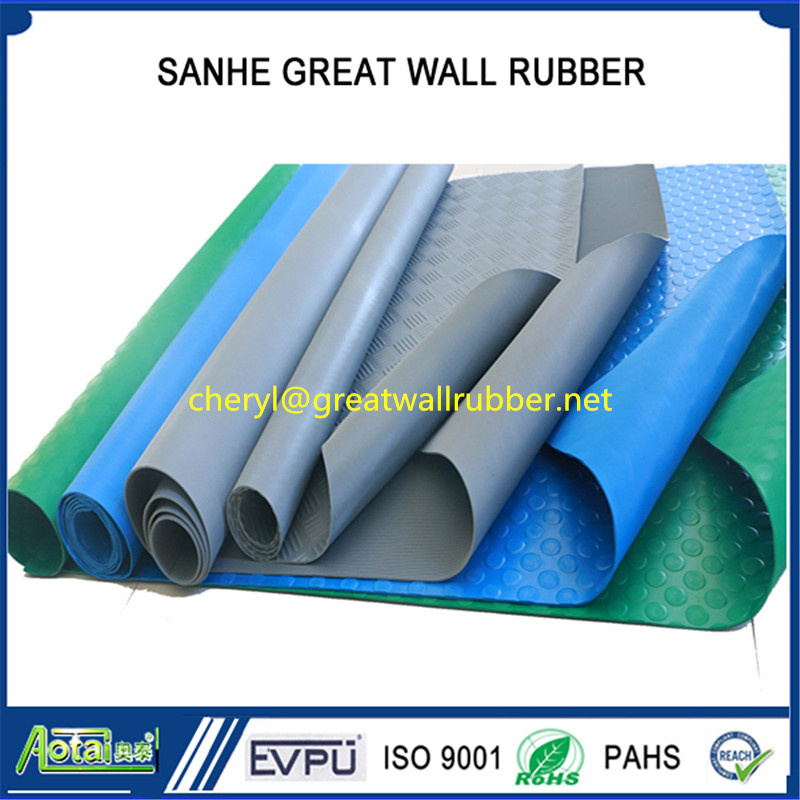

1. insulation rubber sheet, insulation rubber floor mat

   Item: GW5001

   Material: Nature rubber
   Size: (T) 3.5-8mm * (W)0.6-1.5m* (L) 1-20m

   Feature:

   1. excellent insulation performance.

   2.insulation rubber sheet with large volume resistivity and electric
     breakdown resistant.

   3. working in a dielectric environment, the largest insulation voltage
     100000 v

   4. With EU quality certification.

   5. can be used for laid floor and workbench of distribution substation,
     substation and easy to get an electric shock the place.

   6. Color can be black, gray, red, green and etc.

   7. Can be chose the self-adhesive backing

   Packing: in rolls with PP bags or wooden pallets

2. Detailed explaintion of Great wall insulation rubber sheet mat

Material:
1. common rubber material, with smell
2. Enviromental rubber material, non -toxic, non-smell

Surface:
Smooth or anti-slip pattern

Size:
smooth surface: T 3-50m* W 0.6--2m* L1-20m
Anti-slip pattern surface: T 3-8mm*W 0.6-1.5m* L 1-20m

Tensile strength:

4-5Mpa

Voltage:

Grade	wroking voltage	Proof Voltage	withstand Voltage
Class 0	1000 V	5000 V	10 000 V
Class 1	7500 V	10 000V	20 000 V
Class 2	17000 V	20 000V	30 000 V
Class 3	26500 V	30 000 V	40 000V
Class 4	36000 V	40 000 V	50 000V

Color: Black, Green, Grey, Red, Blue

Certificate: EVPU

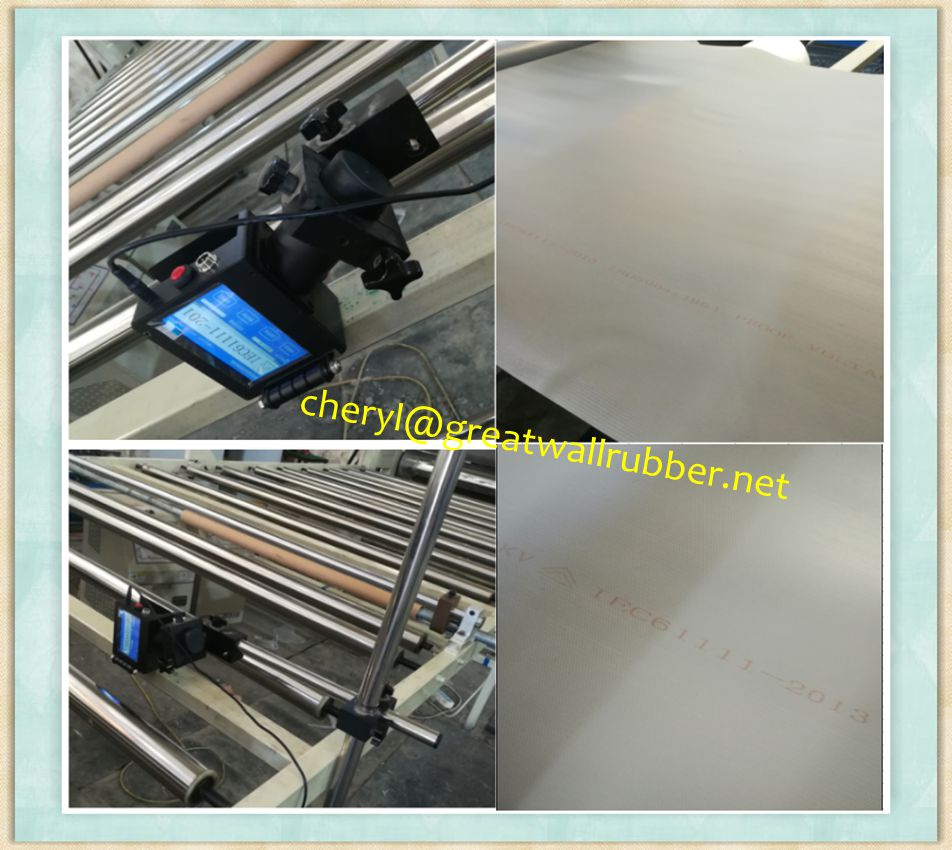

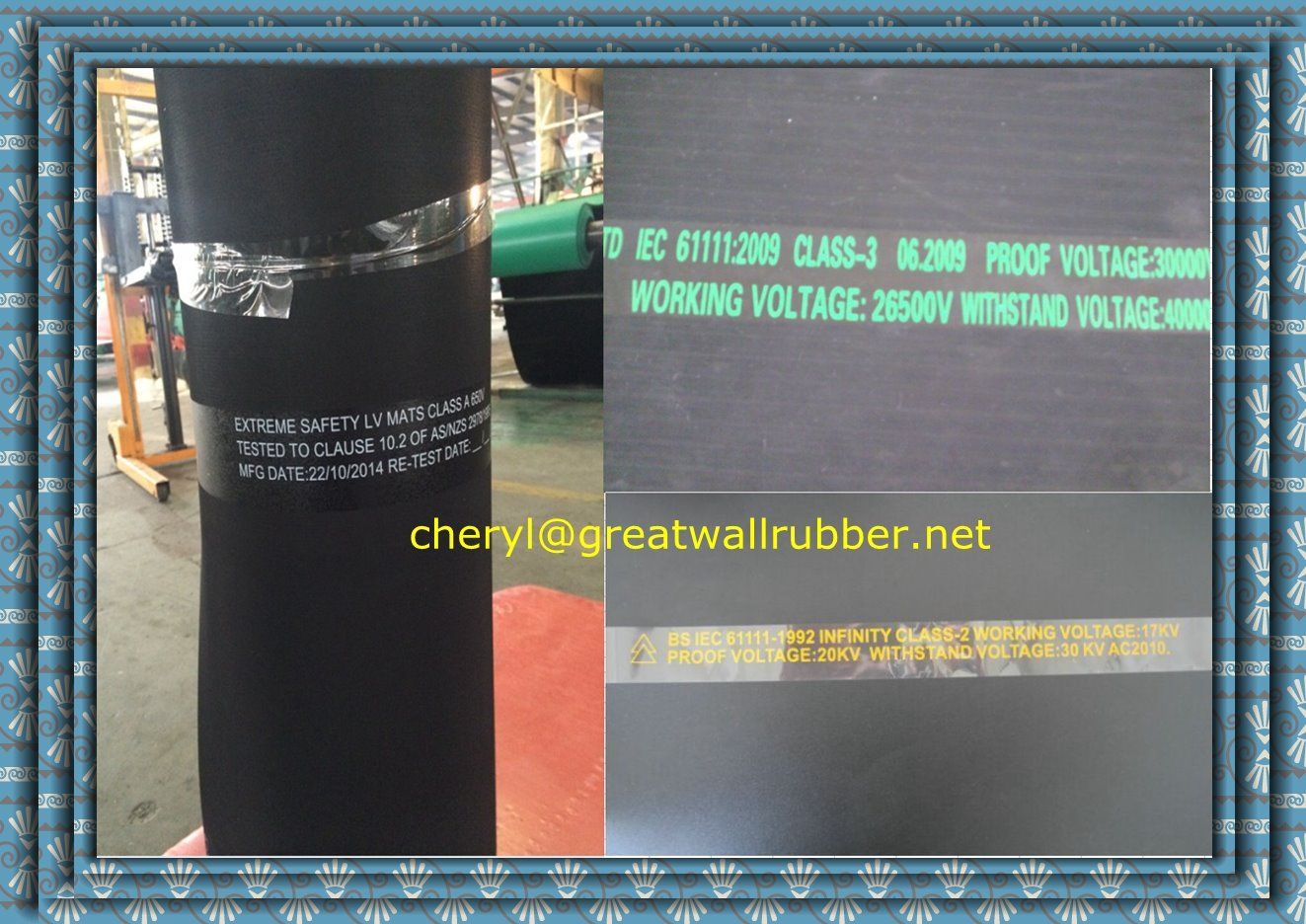

3. Isulation label on backing,

1) label

2)Printing for Enviromental insulation rubber sheet

Company Introduction

Sanhe Great Wall Rubber Co.,ltd was established in 1984.

It is the largest rubber sheet manufactory in the world, includes research laboratories, factories and distributers with more than 40 branch companies and 2000 employees all over China.

The company in Sanhe City, covers 266,668 square meters (319,932 square yards), is located approximately 25 kilometers (16 miles) from east Beijing, 40 kilometers (25 miles) from the Beijing International Airport, 100 kilometers (62 miles) from Port Of Tianjin.

The location is very convenient and advantageous.

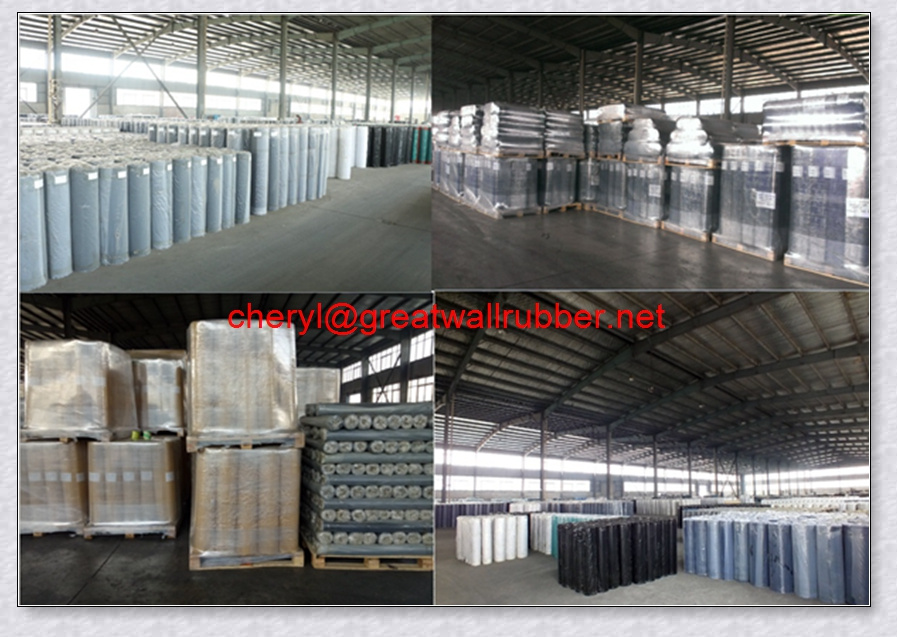

4. Our Company Warehouse

Sanhe Great Wall Rubber Co., Ltd. Is the largest professional manufacturer in Rubber Sheet, Rubber mat, Rubber Waterproof Material and Compound Rubber in China. We have two factories, 58 branch Chinese companies, 2000 workers and ourselves rubber laboratory. It is only 40 kilometers from the Beijing Capital Airport from our company, and 100 kilometers from Xingang (Tianjin) Port.

Our main product are Rubber Sheet, Rubber Mat, Cow Mat, Horse Mat, including NR(Natural Rubber sheet), BR(Butadiene Rubber sheet), SBR(Styrene Butadiene Rubber sheet), NBR(Nitrile Butadiene Rubber sheet), CR(Neoprene Rubber sheet), Viton rubber, IIR(Butyl Rubber sheet), EPDM, Silicon Rubber sheet and Compound Rubber.

Our Corporation has been passed ISO International Quality System Certification since 2001. Our high-performance insulation rubber sheet has been certified by the EU quality certification. The General Administration of Quality Supervision, Inspectional and Quarantine of China (AQSIQ) has awarded the Great Wall Rubber Co., Ltd "Reliable Quality Product Corporation". Our Corporation has been rated the "Provincial Credit Unit" and the "AAA grade credit Unit" in 17consecutive years.

The motto of the Great Wall Rubber Co., Ltd is "Quality First, Customer Uppermost" We guarantee the customers with our excellent qualtiy, effective and efficient service, reasonable prices and quick delivery. We sincerely welcome and expect business communications with customers from all over the world.
