| Prod Model: |
Sealed Lead Acid Battery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Safety Design: |
Double Vented Design,Valve Regulated |
| Maintenance Type: |
Free |
| Battery Plant Class: |
a Class |
| Color: |
Black.White.Grey |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

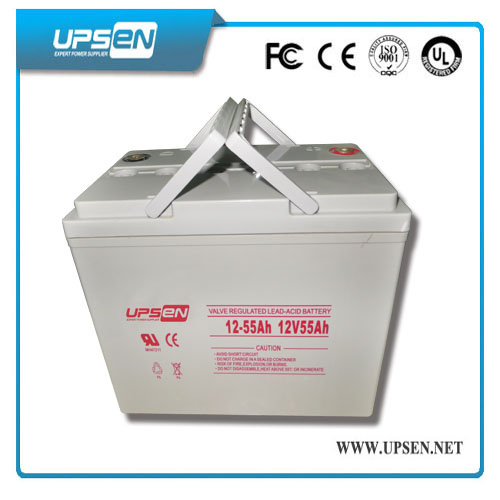

Environmentally friendly ups battery for Emergency systems
key features:
1:sealed and maintenance free operation
2:flexibility design for multiple install positions
3:exceptional deep discharge recovery performance.
4:At good consistency, no short circuit,anti-pole or poor welding problems
5:Accurate acid filler kept the amount of the electrolyte in each cell precisely
6:High quality AGM separator: extend cycle life and prevent micro short circuit
7:advanced welding machine ,not easy shourt-circuit ,ensure batteries long life
8:Flow the specification or users manual for the charging and discharging of battery
9:Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use
10:Long life: special material slab lattice and electrolyte added by high polymer material to expand the life span of the battery
main application
marine equipment,cable television ,medical equipment,Communication systems,Portable lights
,Alarm systems,Power tools,Medical equipment,Electric toys,Portable measuring equipment
Portable telephone sets,Communications and electric equipment,Emergency lighting equipment,Fire alarm and security systems etc.
Technical Specification
| model | nominal | capacity | external dimension | weight | terminal |
| voltage | (ah) | length | width | height | total height | approx | type |
| (v) | 10hr(20hr) | mm | inch | mm | inch | mm | inch | mm | inch | kg | pound | |
| sl1250 | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.2 | 1.7 | 3.74 | t1 |
| sl1250(ii) | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.2 | 1.58 | 3.48 | t1/t2 |
| sl1250(iii) | 12 | 5 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.92 | 4.22 | t1/t2 |
| sl1250(iv) | 12 | 5 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.98 | 4.36 | t1/t2 |
| sl1250(v) | 12 | 5 | 151 | 5.9 | 51 | 2 | 93 | 3.66 | 99 | 3.9 | 1.8 | 3.96 | t1 |
| sl1250(vi) | 12 | 5 | 140 | 5.5 | 48 | 1.89 | 102 | 4.02 | 103 | 4.1 | 1.68 | 3.7 | t43 |
| sl1260 | 12 | 6 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.2 | 4.85 | t1/t2 |
| sl1265 | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2 | 4.41 | t1/t2 |
| sl1265(ii) | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 1.95 | 4.3 | t1/t2 |
| sl1270 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.34 | 5.16 | t1/t2 |
| sl1270(ii) | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.2 | 4.86 | t1/t2 |
| sl1270(iii) | 12 | 7 | 151 | 5.94 | 51 | 2.01 | 94 | 3.7 | 100 | 3.9 | 2 | 4.41 | t1/t2 |
| sl1270(iv) | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.15 | 4.75 | t1 |
| sl1275 | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.47 | 5.45 | t1/t2 |
| sl1275(ii) | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.38 | 5.24 | t1/t2 |
| sl1280 | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.5 | 5.51 | t1/t2 |
| sl1290 | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.78 | 6.13 | t2/t1 |
| sl1290(ii) | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.45 | 5.4 | t2/t1 |
| sl12100 | 12 | 10 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.6 | 3.2 | 7.05 | t2 |
| sl12100(ii) | 12 | 10 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.45 | 7.6 | t1/t2 |
| sl12120 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.7 | 8.16 | t251/t1 |
| sl12120(ii) | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.45 | 7.71 | t251/t1 |
| sl12140 | 12 | 14 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 4.1 | 9.02 | t2 |
| sl12150 | 12 | 15 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.68 | t3/t13 |
| sl12160 | 12 | 16 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.08 | t3/t13 |
| sl12180 | 12 | 18 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.68 | t3/t13 |
| sl12180(ii) | 12 | 18 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.5 | 12.11 | t3a/t13 |
| sl12200 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.8 | 12.76 | t3a/t14 |
| sl12220 | 12 | 22 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 6.1 | 13.43 | t3a/t14 |
| sl12240 | 12 | 24 | 166 | 6.54 | 175 | 6.9 | 125 | 4.92 | 125 | 4.9 | 7.2 | 15.87 | t4/t13 |
| sl12240(ii) | 12 | 24 | 166 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.2 | 8 | 17.6 | t66/t32 |
| sl12260 | 12 | 26 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 7.8 | 17.62 | t4/t13 |
| sl12280 | 12 | 28 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 9 | 19.82 | t4/t13 |
| sl12280(ii) | 12 | 28 | 166 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.2 | 9 | 19.82 | t66/t32 |
| sl12280(iii) | 12 | 28 | 175 | 6.9 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 8.7 | 19.16 | t4/t13 |
| sl1870 | 18 | 7 | 151 | 5.9 | 102 | 4.02 | 100 | 3.94 | 100 | 3.9 | 3.5 | 7.7 | tw5 |
| sl2435 | 24 | 3.5 | 180 | 7.1 | 73 | 2.87 | 70 | 2.76 | 70 | 2.8 | 2.6 | 5.73 | tw10 |
| sl24180 | 24 | 18 | 170 | 6.69 | 146 | 5.75 | 187 | 7.36 | 187 | 7.4 | 11 | 24.23 | tw10 |
| sl6360 | 6 | 36 | 162 | 6.38 | 88 | 3.46 | 164 | 6.46 | 170 | 6.7, , | 5.9 | 13.04 | t251/t16 |
| sl6420 | 6 | 42 | 162 | 6.38 | 88 | 3.46 | 164 | 6.46 | 170 | 6.7 | 5.9 | 13.04 | t251/t16 |
| sl61000 | 6 | 100 | 195 | 7.67 | 170 | 6.69 | 2.06 | 8.11 | 211 | 8.3 | 17 | 37.57 | t16 |
| sl61050 | 6 | 105 | 280 | 11.02 | 128 | 5.03 | 203 | 7.99 | 203 | 8 | 18.5 | 40.88 | t16 |
| sl61200 | 6 | 120 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.3 | 19 | 42 | t16 |
| sl61500 | 6 | 150 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 27 | 59.67 | t19 |
| sl61800 | 6 | 180 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 29 | 64.09 | t19 |
| sl61800(ii) | 6 | 180 | 323 | 12.72 | 178 | 7.01 | 224 | 8.82 | 229 | 9 | 30 | 66.14 | t85 |
| sl61900 | 6 | 190 | 306 | 12 | 169 | 6.65 | 223 | 8.78 | 228 | 9 | 28 | 61.6 | t19 |
| sl62000 | 6 | 200 | 323 | 12.72 | 178 | 7.01 | 224 | 8.82 | 229 | 9 | 29.5 | 65.19 | t19 |
| sl62250 | 6 | 225 | 243 | 9.57 | 188 | 7.4 | 275 | 10.8 | 275 | 11 | 34.5 | 76.24 | t19 |
| sl62250(ii) | 6 | 225 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 29.5 | 65.2 | t19 |
| sl81800 | 8 | 180 | 260 | 10.23 | 182 | 7.17 | 295 | 11.6 | 300 | 12 | 36.5 | 64.09 | t19 |
| sl12330 | 12 | 33 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 10 | 22.1 | t16/t64 |
| sl12330(ii) | 12 | 33 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 9.7 | 21.44 | t16/t64 |
| sl12350 | 12 | 35 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 10.5 | 23.2 | t16/t64 |
| sl12400 | 12 | 40 | 197 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13.5 | 29.74 | t9/t16 |
| sl12400(ii) | 12 | 40 | 197 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13 | 28.73 | t9/t16 |
| sl12400(iii) | 12 | 40 | 197 | 7.76 | 166 | 6.54 | 175 | 6.89 | 180 | 7.1 | 13 | 28.6 | t51 |
| sl12150w | 12 | 40 | 197 | 7.76 | 166 | 6.54 | 170 | 6.69 | 170 | 6.7 | 13.5 | 29.83 | t66 |
| sl12440 | 12 | 44 | 196 | 7.7 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13.5 | 29.83 | t7/t9/t16 |
| sl12440(ii) | 12 | 44 | 197 | 7.76 | 166 | 6.54 | 175 | 6.89 | 182 | 7.2 | 13.5 | 29.83 | t51 |
| sl12500 | 12 | 50 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.1 | 17.2 | 38 | t9/t16 |
| sl12550 | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.1 | 17.2 | 38 | t9/t16 |
| sl12550(ii) | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 228 | 8.9 | 17.2 | 38 | t53 |
| sl12550(iii) | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 211 | 8.19 | 226 | 8.9 | 17.2 | 38 | t16 |
| sl12550(iv) | 12 | 55 | 277 | 10.91 | 106 | 4.17 | 222 | 8.74 | 222 | 8.7 | 17.5 | 38.58 | t102 |
| sl12600 | 12 | 60 | 240 | 9.45 | 200 | 7.87 | 199 | 7.83 | 209 | 8.2 | 21 | 46.3 | t15 |
| sl12600(ii) | 12 | 60 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.1 | 21 | 46.3 | t9/t16 |
| sl12600(iii) | 12 | 60 | 265 | 10.43 | 190 | 7.48 | 222 | 8.74 | 222 | 8.7 | 21 | 46.3 | t |
| sl12650 | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 21 | 46.4 | t9/t16 |
| sl12650(ii) | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 22 | 48.5 | t9/t16 |
| sl12700 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 23 | 50.66 | t16/t33 |
| sl12700(ii) | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 22.8 | 50.3 | t16/t33 |
| sl12700(iii) | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 210 | 8.27 | 217 | 8.5 | 22.8 | 50.27 | t9/t16 |
| sl12700(iv) | 12 | 70 | 350 | 3.78 | 167 | 6.67 | 178 | 7.01 | 179 | 7.1 | 22.5 | 49.72 | t9/t16 |
| sl12750 | 12 | 75 | 562 | 22.13 | 114 | 4.49 | 188 | 7.4 | 188 | 7.4 | 27 | 59.52 | t102 |
| sl12800 | 12 | 80 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 23.5 | 51.93 | t16/t33 |
| sl12800(ii) | 12 | 80 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 23.5 | 51.7 | t16 |
| sl12800(iii) | 12 | 80 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 23 | 50.71 | t9/t16 |
| sl12900 | 12 | 90 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.2 | 28 | 61.88 | t10/t16 |
| sl12900(ii) | 12 | 90 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.2 | 27.5 | 60.77 | t10/t16 |
| sl12900(iii) | 12 | 90 | 307 | 12.1 | 168 | 6.61 | 208 | 8.19 | 214 | 8.4 | 28 | 61.88 | t10/t16 |
| sl121000 | 12 | 100 | 330 | 12.99 | 172 | 6.77 | 214 | 8.43 | 237 | 9.3 | 32 | 70.55 | t10/t16 |
| sl121000(ii) | 12 | 100 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.3 | 30.8 | 68.1 | t10/t16 |
| sl121000(iii) | 12 | 100 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 8.8 | 34 | 75 | t16/t11d |
| sl121050 | 12 | 105 | 508 | 20 | 110 | 4.33 | 224 | 8.82 | 239 | 9.4 | 30.6 | 67.6 | t16 |
| sl121100 | 12 | 110 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.3 | 33 | 72.9 | t10/t16 |
| sl121200 | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.2 | 38 | 83.98 | t11/t16 |
| sl121200(ii) | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.2 | 36.5 | 80.66 | t11/t16 |
| sl121340 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 289 | 11 | 41.5 | 91.3 | t19 |
| sl121500 | 12 | 150 | 484 | 191.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.5 | 46 | 101 | t12/t50 |
| sl121600 | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 52 | 115 | t11/t60 |
| sl121600(i) | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 50 | 110.5 | t11/t60 |
| sl121800 | 12 | 180 | 530 | 20.8 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 55.5 | 122.6 | t11/t60 |
| sl121800(ii) | 12 | 180 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 53 | 117.1 | t11/t60 |
| sl122000 | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 63.5 | 140.4 | t11/t19 |
| sl122000(ii) | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 60.5 | 133.7 | t11/t19 |
| sl122300 | 12 | 230 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 240 | 9.4 | 72.5 | 160.2 | t12/t19 |
| sl122300(ii) | 12 | 230 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 240 | 9.4 | 69.5 | 153.6 | t12/t19 |
| sl122500 | 12 | 250 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 241 | 9.3 | 76 | 174 | t12/t19 |
| sl122500(ii) | 12 | 250 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 241 | 9.3 | 73 | 161.3 | t12/t19 |
| *specification are subject to change without prior notice |
