Eoc Bridge Cldo-0206rj

Name: Eoc Bridge Cldo-0206rj
Brand: all-electronics-online.com
SKU: 694151762
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CLDO-0206RJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

Product Description

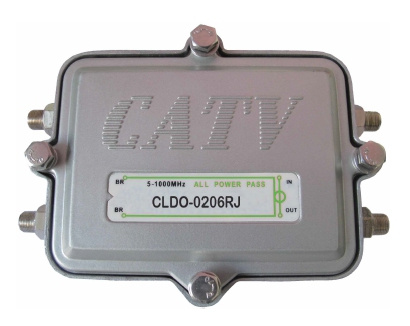

CLDO-0206RJ is an EOC bridge for outdoor use with following features:
Support coaxial cable power supply AC 60V/10A;
Low insertion loss, high isolation;
Metal shell, waterproof, dustproof, good EMI shielding.

Application & Standards
Application: Ethernet Over Coaxial cable
Comply with: GY/T 137-1999

Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage: -40°C to +70°C
Humidity: 0%-100% non-condensing

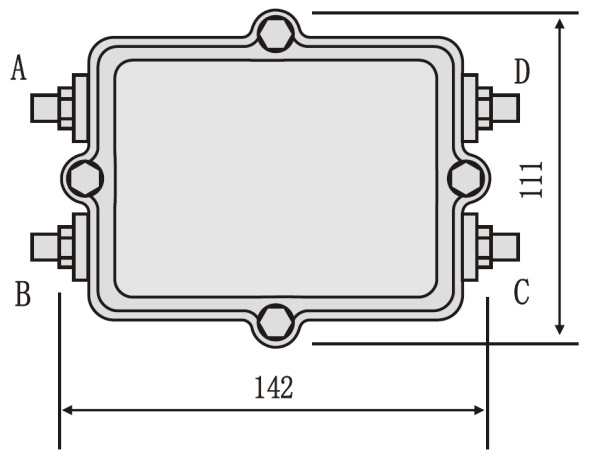

Outline Dimensions

Test item	Condition/Requirement
Impedance	75Ω
Power Pass	63VAC 10A
Insertion loss	5-65MHz ≤3.0dB (B Port_C Port or C Port_B Port )
Insertion loss	87-860MHz≤1.5dB (B Port to A Port , C Port to D Port )
Return loss	5-65MHz ≥16.0dB
Return loss	87-860MHz ≥16.0 dB
Out of Band Suppression	87-860MHz ≥50.0 dB (B Port_C Port or C Port_B Port )
Out of Band Suppression	5-65MHz ≥50.0dB (B Port to A Port , C Port to D Port )
Isolation(LP-HP)	5-860MHz ≥50.0dB
Connector Type	F

As a professional and famous manufacturer of GPS timing box and xDSL splitter (ADSL2+ & VDSL2 splitter & PSTN splitter & SHDSL splitter and Microfilter), CoreLogic is the certificated supplier for Telefornica, Nokia&Siemens, Alcatel-Lucent, UTstarcom, 3M, ADC/Krone, ZTE, HUAWEI Technology, Fiber home and etc...

Established in 1998, Beijing Corelogic Communication Co., Ltd.Focuses on developing telecommunication product with the most advanced communication technologies in the digital network, especially specilized in electronic components such as GPS timing box and network transformers and XDSL splitters.Our company stands on the grounds of the core values of honesty, transparency and integrity that have helped us to serve our clients better and build lasting relationships with them.

Moreover, Corelogic designs and sells a full range of high performance xDSL CPE&CO splitters.Corelogic Splitters are available in a variety of formats, including DSLAM boards, rack-mount boards, modules, and MDF splitters;And comply with all desired country and customer-specific requirements.As a famous manufacturer, we are the certificated supplier for France telecom, Telefornica, Nokia&Siemens, Alcatel-Lucent, UTstarcom, 3M, ADC/Krone, ZTE, HUAWEI Technology, Fiber home and etc...

Our range of products and services includes as below:
1, Electronic components (network transformer)
2, xDSL splitter for central office
3, xDSL splitter for CPE
4, ISDN network terminal (ISDN NT1, NT1 PLUS, ISDN adapter, ISDN telephone)
5, Line attenuator(simulate cable line attenuation as 100m, 200m, 300m, 500m.)
6, ADSL2+ handle tester,
7, VDSL2 handel tester
8, PON power meter
9, ADSL2+ & VDSL2 IP DSLAM within IU chassis
10, GPS timing box

Of course, we have two big modern factories in China mainland with about 2, 500 employees, and our products have steady quality and competitive price, in a words, our products have high performance-price rates.We can provide free samples for your test approval.

We are looking forward to establishiing business relationship with you in the near future.
