| Prod Model: |
EP1000 series inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charge Current: |
10A/20A Adjutable |
| PCB Board: |
Double Layers |
| Narrow Input Voltage Range: |
170-280VAC |
| Wide Input Voltage Range: |
90-280VAC |
| Wave: |
Modified Sine Wave |
| DC Battery: |
12V or 24V |
| Frequency: |
High Frequency |
| Charge Function: |
Three Steps Intelligent Charging Control |
| Display: |
LCD Display |
| Name: |
Ep1000 Home 10A/20A Charge Current Adjustable Home |
Product Description

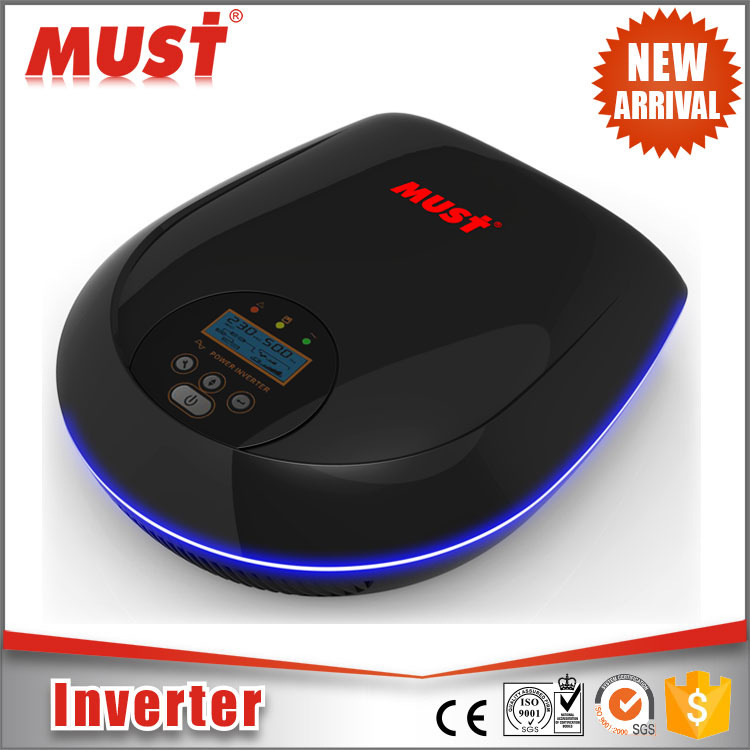

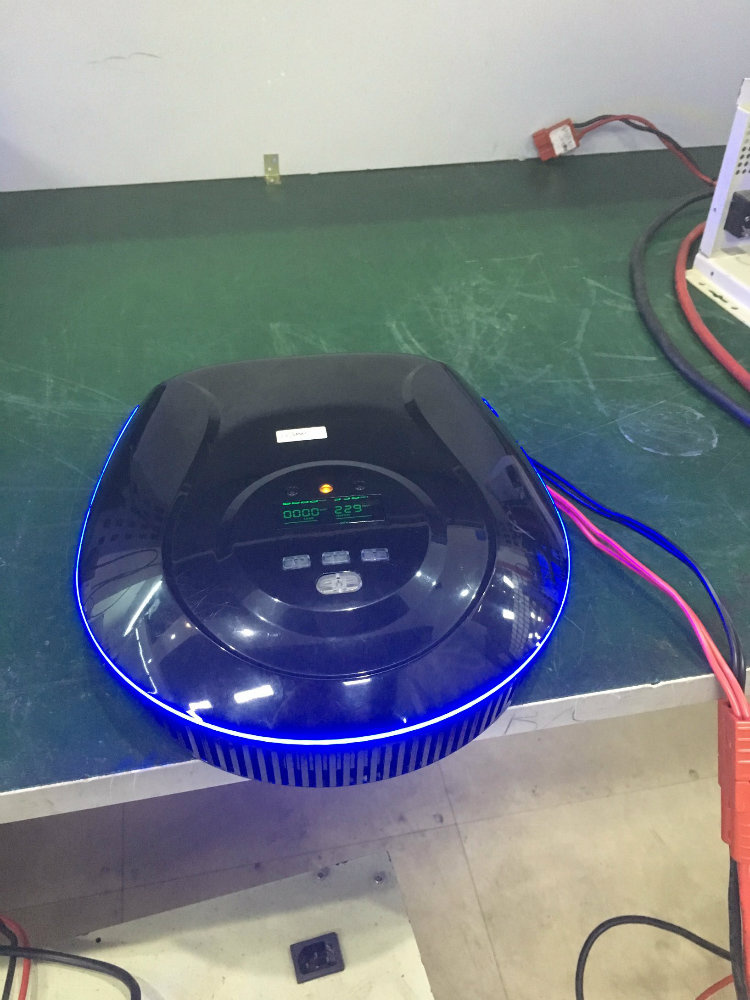

EP1100 Pro Home Inverter with 10A/20A Charge Current Adjustable Function
Features;1. Automatic line-to-battery switchover
2. Selectable input voltage ranges, power inverter has wide input range: 90-280Vac
Narrow input range: 170-280Vac
3. Small power inverter has high efficient DC-to-AC conversion, minimizing energy loss
4. Rack Tower design for flexible placement
5. Small power inverter built-in enhanced charger 8Amps for up to 100Ah battery
6. Intelligent 2-stage charger control for efficient charging and preventing overcharge
7. Overload protection
8. Auto restart while AC recovery
9. Multi-function LED indications and buzzer alarms
10. Small scale and cost effective inverter for home appliance and office equipment
11. LED indicator of power inverter for the battery mode, AC mode, battery charging mode, overload mode and fault warning
12. Over 95% efficiency in AC to AC mode
13. Audible alarm for the low battery, overload, overcharge and fault
14. Full protection of power inverter against deep discharge, overcharge, overload protection, short circuit, overvoltage and under voltage (compact power inverter)
Specifications:| EP1000 Series Inverter 10A/20A charge current Specification |
| MODEL | P1000C | P2000C |
| CAPACITY | 1000VA | 2000VA |
| AC INPUT |
| Voltage | 220/230/240VAC |
| Input Voltage Range | 90-280VAC |
| Frequency | 50-60Hz(Auto Detection) |
| Input Voltage Range Selector |
| Narrow | 170-280VAC |
| Wide | 90-280VAC |
| Inverter Mode Output |
| Voltage | 230VAC + 10% / -18% |
| Frequency | 50/60Hz ± 0.5Hz |
| Waveform | Modified Sine Wave |
| Efficiency (AC to AC) | >95% |
| Efficiency (DC to AC) | >80% |
| Battery |
| Voltage | 12V DC | 24V DC |
| Charger |
| Charging Voltage (V bat< 12.5V) | 14.4 ± 0.4V |
| Charging Voltage (V bat< 12.5V) | 13.7 ± 0.2V |
| Charging Current 10A ± 2A | 10A ± 2A |
| Charging Current 20A ± 2A | 20A ± 2A |
| Overcharging Protection | 16V ± 0.4V |
| Transfer |
| Transfer Time | Typical 12-20ms, 40ms max |
| Indicator |
| Line Mode | Green LED blinks or lights steadily |
| Battery Mode | Yellow LED lights |
| Overload / Fault | Red LED blinks or lights steadily |
| Audible Alarm |
| Low Battery Voltage in Battery Mode | Beeps every 2 seconds |
| Overload | Beeps every 0.5 seconds |
| Fault | Beeps continuously |
| Environment |
| Temperature | 0~40°C |
| Physical |
| Body Size (mm) | 246X253X87 |
| Net Weight (kg) | 2.3 |
| Gross Weight (kg) | 2.8 |
| Carton Size (mm) | 400*347*596 (6pcs/carton) |
| Protections | Deep Discharge, Overcharge, Short Circuit, Overload, Battery Short, Over Voltage, Under Voltage. |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

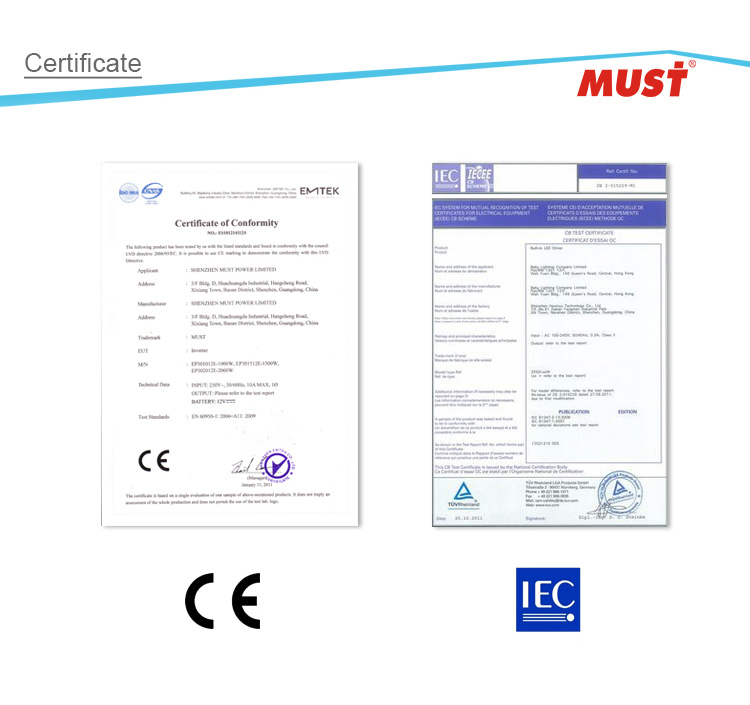

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
