Shenzhen Must Power Limited >> Ep1100 High Frequency Modified Sine Wave 12V 220V 1000va Inverter

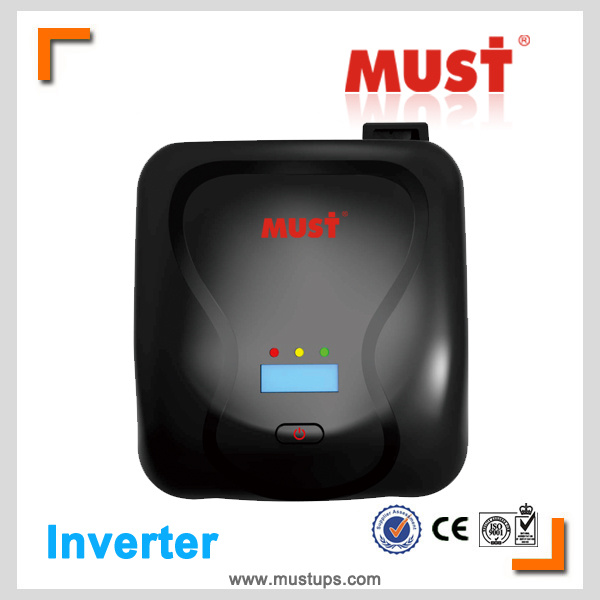

Ep1100 High Frequency Modified Sine Wave 12V 220V 1000va Inverter

Ep1100 High Frequency Modified Sine Wave 12V 220V 1000va Inverter
Price: US $ 53-65/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: EP1100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 600W/1000W
Input DC: 12V/24VDC
Input AC: 145-285VAC
Output: 220/230VAC
Weight: 2.5kg
Output Wave: Modified Sine Wave
High Frequency: Yes
Home Use: Yes
Battery Reverse Protection: Option
Charge Current Adjustable: 10A/20A Adjutable
Phase: Single
Type: DC/AC Inverters
Power Source: Electric Power
Output Power: 501 - 1000W
Brand: Must

Product Description

Ep1100 High Frequency Modified Sine Wave 12V 220V 1000va Inverter

Company Information
Shenzhen Must Power Limited established in 1998, which is a professional hi-tech enterprise specialized in Power Inverter, Solar Power, and Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include: Power inverter, Solar inverter, Solar charge controller, Solar battery, Solar power Pack and some other related Solar products. Most of products from Mustups applied with ISO, CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc.

The main feature as the following:
*modified sinewave AC output, wide application range
*charge current 15A/20A adjustable, for model 660W/800W
*inbuilt with 39A PWM solar charge controller
*three-steps intelligent charging control
*battery reverse protection function
*battery cable 10AWG 60cm(double line)
*compact size fit for home use, small solar system

10A/20A Charging Current 1000VA 2000VA DC to AC Home Power Inverter

PG modified sine wave inverter is a combination of an inverter and a charge. It offers a smart, convenient and economic way to get AC power supply from DC source for most electrical equipment. When the AC input is available, it will switch to AC power supply and starts charging on the batteries.

The PG series converts DC power into AC power. With a continuous output and compact design, the units is ideal for running TVs, Stereos, Laptop and computers and other home appliances. PG series will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.

Home Power Inverter Applications:
Main for home and office Appliance such ad computer, TV, lights, fan etc.
Payment & Shipping & Sample

1. Payment: T/T (Telegraphic transfer), and Western Union

2. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea

**Welcome your Sample Order to test quality firstly**
Why Choose US

1. Professional: Established in 1998.15 years Producing Experience on Power inverter & Solar controller.

2. Reliable: 3yrs Alibaba Gold Supplier.

3. Hi-tech: Advanced R&D Team.

4. Certifications: Applied with CE, ISO 9001 etc.

5. Quality guarantee: 1 year; Also 24 hours after-sales service hotline for solve problems in time.
MODELEP11-1200EP11-2400
Default Battery System Voltage12VDC24VDC
INVERTER
OUTPUT
Reted Power1200VA/720W2000VA/1440W
WaveformModifide Sine-wave
Nominal Output Voltage RMS230V
Output Voltage Regulation+10/-18%
Output Frequency5OHz/60Hz±0.5 Hz
Inverter Efficiency(Peak)>80%
Line Mode Efficiency>95%
Power Factor0.72
Typical Transfer TimeTypical  15~20ms  40ms max
AC
INPUT
Voltage230VAC
Selectable Voltage RangeNarrow170~280VAC
Wide90~280VAC
Frequency Range50Hz/60Hz (Auto sensing)
BATTERYNominal Input Voltage12VDC24VDC
Minimum Start Voltage10.5VDC


21.0VDC


Low Battery Alarm10.5VDC±0.3V


21.0VDC±0.3V


Low Battery Cutoff10.0VDC±0.3V


20.0VDC±0.3V


High Voltage Alarm16.0VDC±0.3V


32.0VDC±0.3V


High Battery Voltage Recover15.0VDC±0.3V 30.0VDC±0.3V


CHARGERCharger   Voltage (Vbat<12.5V)14.4VDC±0.4V 28.8VDC±0.4V
Charger   Voltage (Vbat>12.5V)13.7VDC±0.2V 27.4VDC±0.2V
Charging Current  10A10A±2A
Charging Current  20A20A±2A
Overcharge Protection S.D.16VDC ±0.4A


32VDC ±0.8A
BYPASS
&
PROTECTION
Nominal Input Frequency50Hz or 60Hz



Overload Protection (SMPS Load) FUSE
Output Short Circuit ProtectionFUSE




Bypass Breaker Rating10A
Max Bypass Current10Amp



MECHANICAL
SPECIFICATIONS
Dimensions (W*H*D)246*253*87mm
Net Weight (kg)2.32.5
Shipping Dimensions(W*H*D)320*332*127mm

Shipping Weight (kg)2.93.1
OTHEROperation   Temperature  Range0°C to 40°C
Audible   Noise60dB MAX
DisplayLED+LCD
Standard Warranty1 year



Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
