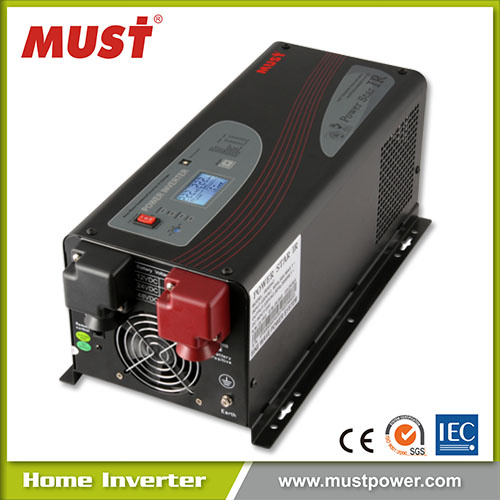

Ep3000 PWM/MPPT Pure Sine Wave Inverter 1000W 2000W 3000W 4000W 5000W 6000W

Name: Ep3000 PWM/MPPT Pure Sine Wave Inverter 1000W 2000W 3000W 4000W 5000W 6000W
Brand: all-electronics-online.com
SKU: 777497295
Availability: InStock
Rating: 4.3 (33 reviews)

Price:	US $ 160/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EP30-3000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	1012, 2024, 2012.3012.3024, 3048.4024.5024, 6048
Weight:	19kgs-49kgs
Input Voltage:	100V/110V/220V/50Hz
Output Frequency:	50/60Hz
Material:	Copper Transformer
Wave Form:	Pure Sine Wave
Out Put Connection:	Terminal Block + 1 Socket
Warranty:	12 Months
Phase:	Single
Type:	DC/AC Inverters
Power Source:	Electric Power
Output Power:	501 - 1000W
Application:	All Kinds of Inductive Load, Solar Energy
Brand:	Must

Product Description

EP3000 Series PWM/MPPT pure sine wave inverter 1000W 2000W 3000W 4000W 5000W 6000W

1. Features
1.Pure sine-wave out put,can be used with different domestic appliance TV,Refrigerator,Fan,Air conditioner ,Induction cooker,micro-wave oven etc.
2. Generator compatibly and external battery connection achievable.
3. Generator compatible

MODEL IR series	IR INVERTER
	1000W 12V	1000W 24V	2000W 12V	2000W 24V	3000W 24V	4000W 48V	5000W 48V	6000W 48V
Line Mode Specifications:
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac(120VAC selectable)
Low Line Disconnect	184Vac±4%
Low Line Re-connect	194Vac ±4%
High Line Disconnect	265Vac±4%
High Line Re-connect	255Vac±4%
Max AC Input Voltage	270Vrms
Nominal Input Frequency	50Hz/ 60Hz (Auto detection)
Low Line Frequency Re-connect	58+0.3Hz for 60Hz;48+0.3Hz for 50Hz;
Low Line Frequency Disconnect	57+0.3Hz for 60Hz;47+0.3Hz for 50Hz;
High Line Frequency Re-connect	64+0.3Hz for 60Hz;54+0.3Hz for 50Hz;
High Line Frequency Disconnect	65+0.3Hz for 60Hz;55+0.3Hz for 50Hz;
Output Voltage Waveform	As same as Input Waveform
Over-Load Protection(SMPSload)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	>95%
Transfer Switch Rating	30A
Transfer Time (Ac to Dc)	10ms (typical)
Transfer Time (Dc to Ac)	10ms (typical)
Pass through without Battery	Yes
Max Bypass Overload Current	30A
Invert Mode Specifications:
Output Voltage Waveform	Sine wave
Power Factor	0~1.0
Nominal Output Voltage (V)	230Vac
Nominal Output Frequency (Hz)	50Hz ± 0.3Hz
Auto tracking Main Frequency(Hz)	Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz
Output Voltage Regulation	±10% rms
Nominal Efficiency	>80%
Surge rating (10s)	3000VA		6000VA		9000VA	12000VA	15000 VA	18000VA
Capable of starting electric motor	1 HP		1 HP		2 HP		3 HP
Output Short Circuit Protection	Current limit (Fault after 10s)
Inverter overload Breaker Size	30A		30A		30A	35A	50A
Nominal DC Input Voltage	12V	24V	12V	24V	24V	48V	48V
Min DC start voltage	10V/20V/40V
Power saver	Load ≤25W (Enabled on "P/S auto" setting of Remote control)
Charge Mode Specifications:
Nominal Input Voltage	230Vac
Input Voltage Range	196~243Vac
Nominal Output Voltage	According to the battery type
Nominal Charge Current	35A	35A	65A	35A	45A	35A	40A	50A
Charge Current Regulation	± 5Adc
Battery initial voltage	0 –15.7 Vdc (can operate with 0V battery)
Charger Short Circuit Protection	Circuit breaker
Over Charge Protection	Bat. V ≥ 15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60s
General Specifications
Safety Certification	CE(EN62040-1)
EMC Classification	EN62040-2,C2
Operating Temperature Range	0°C to 40°C
Storage temperature	15°C below zero to 60°C
Operation humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan

Shenzhen Must Energy Technology Co., Ltd. Established in Shenzhen in 1998, Which is leading manufacturer of power protection produtcs & service solutions including UPS, power inverters, Solar inverters, charge controllers, Batteries, AVR for more than ten years, with a strong R&D team, internal automation equipment design and manufacturing capability, as well as continuous quality improvement, Santakups Electronic Company has become the leading supplier for long backup time power solution in the new world of information technology.

We' Ve kept our defect rate well under 0.5 percent. Logo printing service is available on request.
